PX30 Development Board

PX30 Development Board

DB-PX30

PX30 Development Board

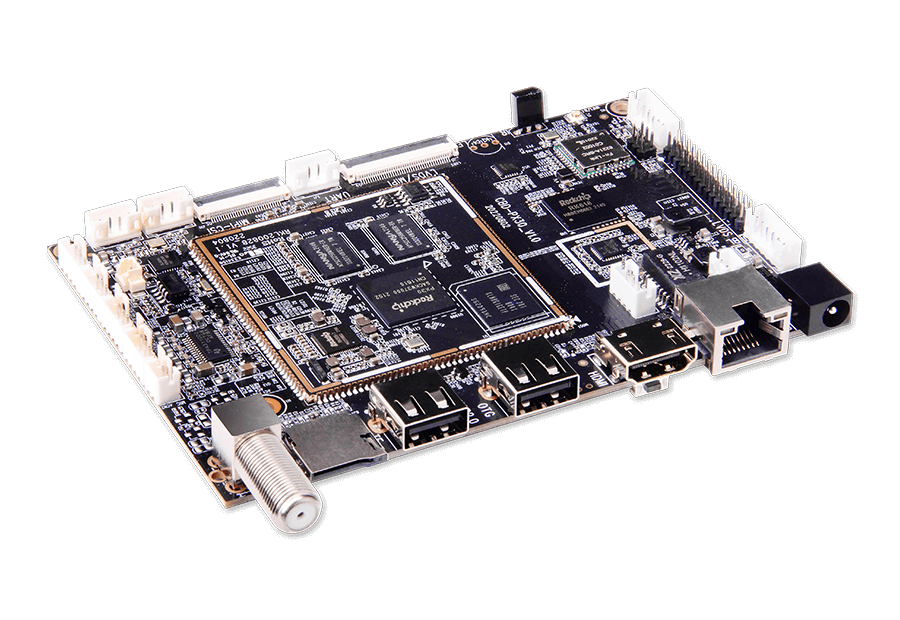

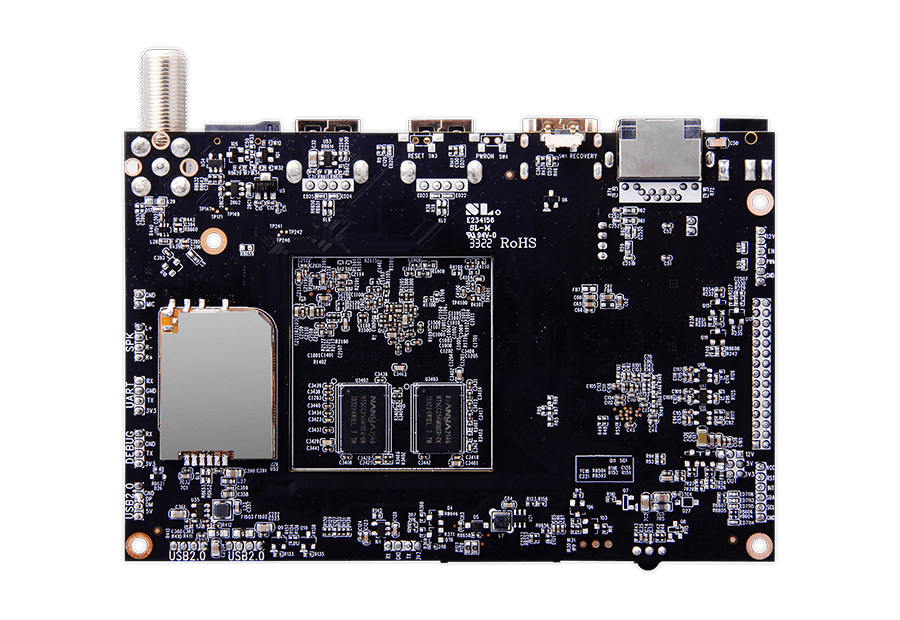

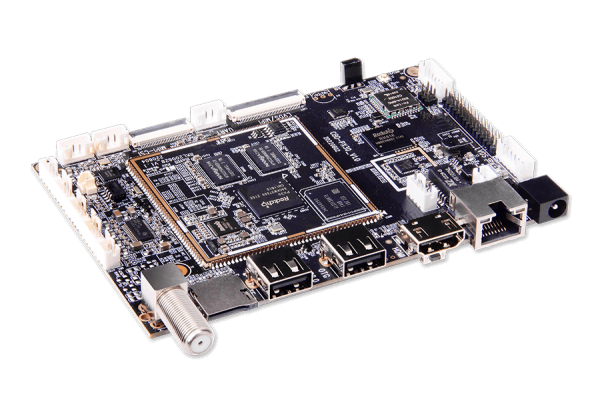

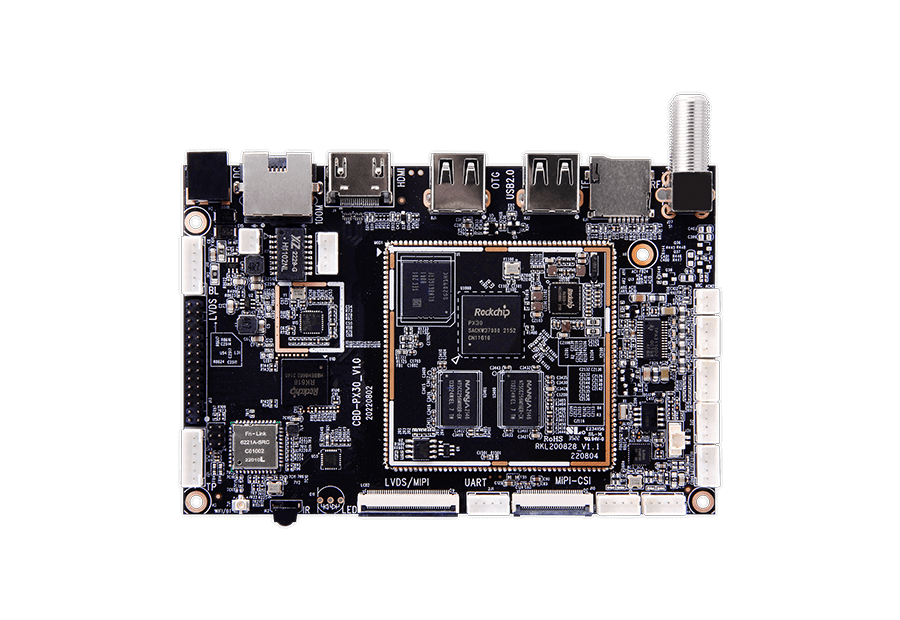

DB-PX30 is development board based on PX30 developed by Rockchip. PX30 industrial-grade 64-bit low-power processor,
with powerful hard decoding capability and rich interfaces, can quickly realize project research and
production only by expanding the functional baseplate, which can be applied to AIOT Internet of Things equipment,
vehicle-mounted central control, entertainment/game equipment, commercial display equipment and other application fields.

Product Specification

  • Chipset
    Rockchip PX30
  • Market area
    Global
  • OSD Language
    English/Chinese(multi language OSD)
  • CPU
    Quad-core Cortex-A35
  • GPU
    Mali-G31 GPU
  • DDR
    2GB
  • EMMC FLASH
    8GB(16G/32G Optional)
  • Ethernet
    RJ45, 10/100M
  • WiFi
    2.4G
  • BT
    BT4.1(Build-in wifi module)
  • USB
    1 x OTG,1 x USB2.0 Host
  • Dimensions
    140 mm * 113 mm
  • Adapter
    DC input 12V/2A
