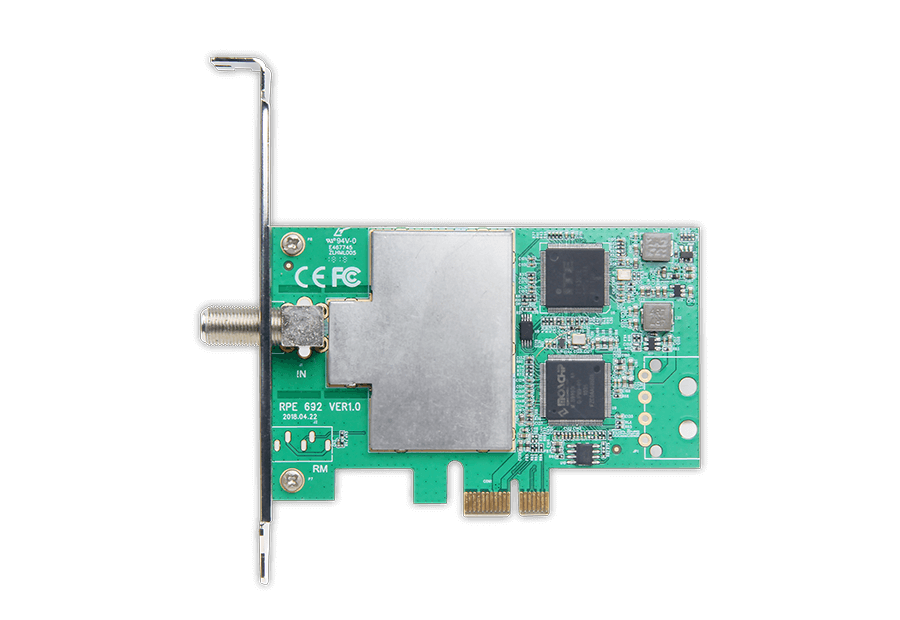

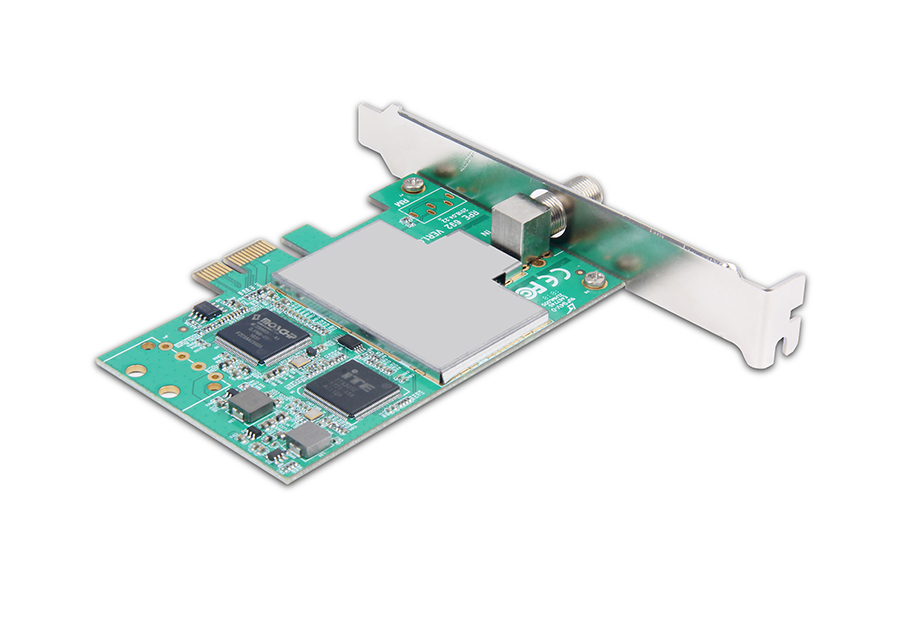

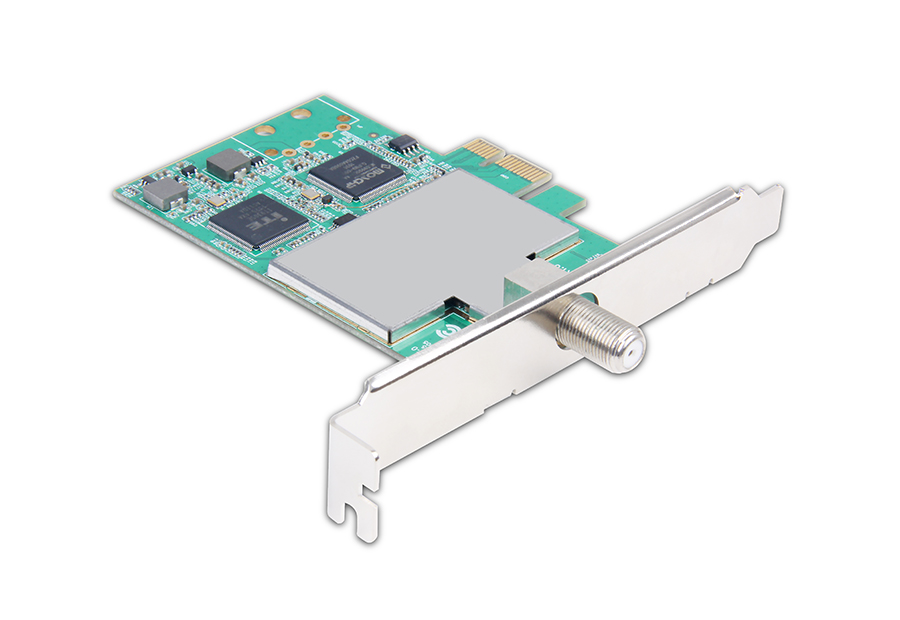

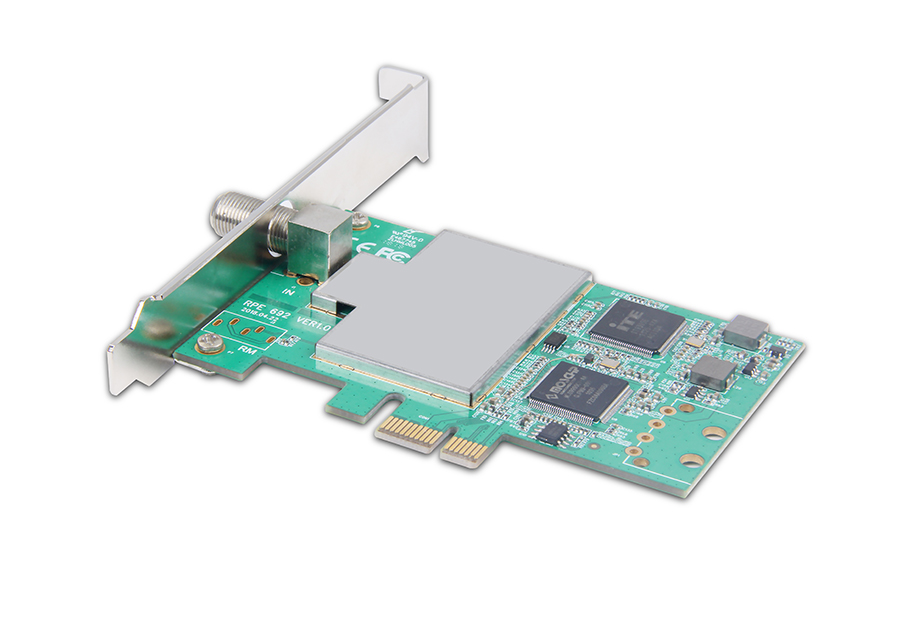

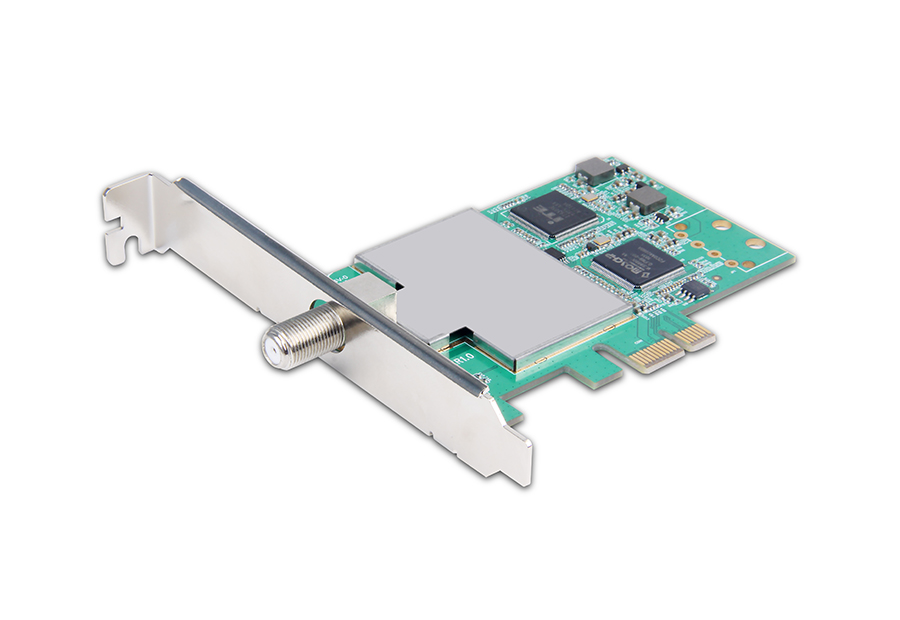

X692 PCI Express TV Tuner Card with Quad ATSC Tuner

Watch or record up to four TV programs at the same time!


Buy a Sample

Categories: ,
Get A Quote

Quad ATSC TV Tuner

  • Four tuners on one half height PCI Express board. X692-quadHD will fit full height PC.
  • Watch, pause or record up to four ATSC or clear QAM HD TV programs at the same time.
  • Includes the HidTV application, which give you TV-in-a-window or TV full screen, plus picture-in-picture.
  • The X692 QuadHD is seen as 4 tuners so you can watch one TV program or record up to 4 TV programs at the same time.
  • ATSC is free HD TV for the U.S. and Canada.
  • Clear QAM is digital cable TV (please contact your cable TV provider to see if clear QAM is available in your area)

ATSC Over-The-Air Digital TV Features

  • ATSC is free over-the-air HD TV. ATSC is broadcast in the US and Canada, and does not require a subscription. ATSC is HD and FREE!
  • X692-quadHD has four ATSC over-the-air digital TV tuners. Supports all ATSC formats, up to the highest HD format.
  • Watch, pause or record up to four ATSC digital TV programs using high quality MPEG-2. TV recordings will typically consume 5 GB of disk space per hour for ATSC high definition.

Clear QAM Digital Cable TV Features

  • Quad clear QAM digital cable TV receivers. Watch and record up to four clear QAM digital cable TV channels at the same time.
  • Note: not all cable TV networks send clear QAM channels. Please check with your local cable operator for the availability of clear QAM digital cable TV.
Product X692-QuadHD
Receive Frequency TV 54~ 862 MHz
Tuner • Supported TV standards:
• Clear QAM digital cable TV
• Stereo / Dual channel sound
• Antenna input: F connector
• PC-interface: Mini PCIe x1
Input Signal • 75 Ohm Digital TV Antenna Input
• Receive Frequency: TV 54~ 862 MHz
• ATSC compliant 8-VSB
• Open Cable , ANSI/SCTE DVS-031,ITU-T J.83 Annex B, and DOCSIS compliant 64/256 QAM
System Requiremen • Microsoft® Windows 10, 8, 7® or Windows Vista with latest Service Pack, 1 GB RAM
• Windows Media Center in Windows 7 or Windows 8
• Minimum processor: Core2 Duo 2.93Ghz or fasterNote: If your PC is not fast enough, you might see jerky live TV video, but your TV recordings will be fine.
• Sound and graphics with support for DirectX® 9 or higher
• Mini PCI Express slot x1
