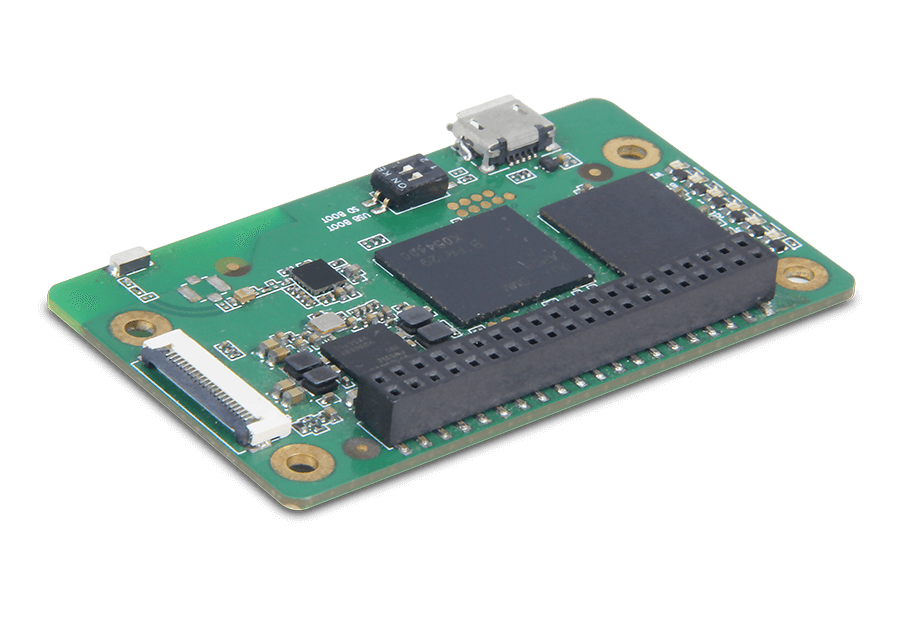

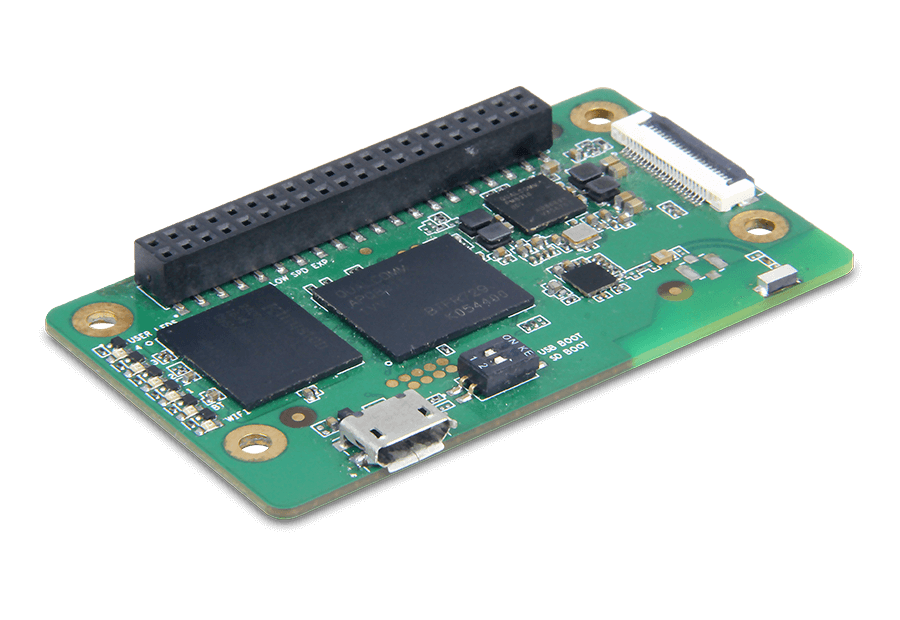

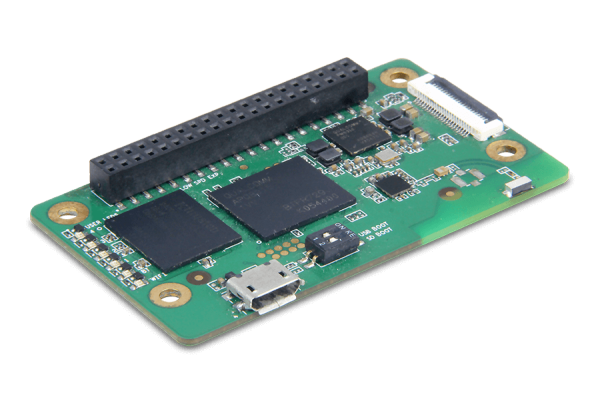

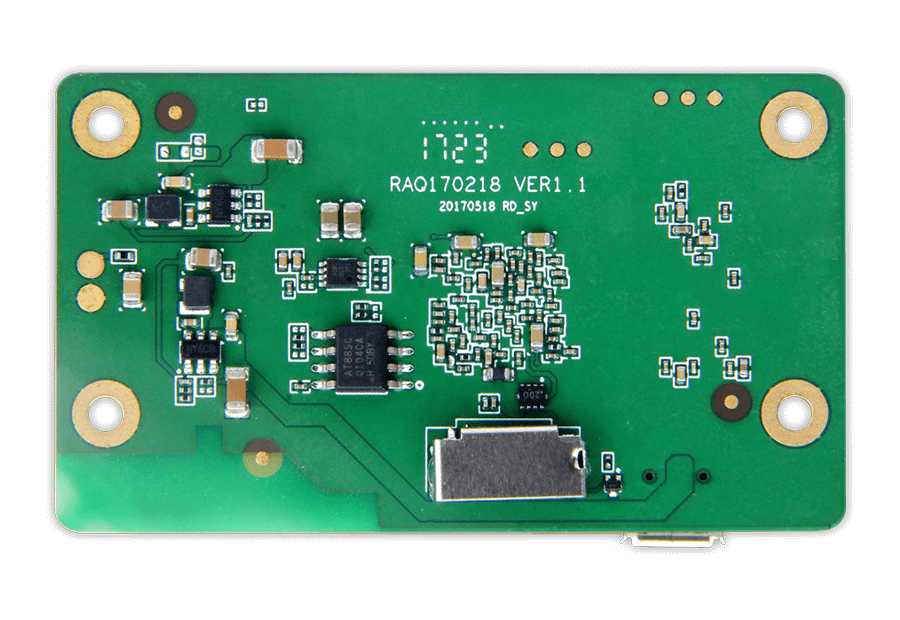

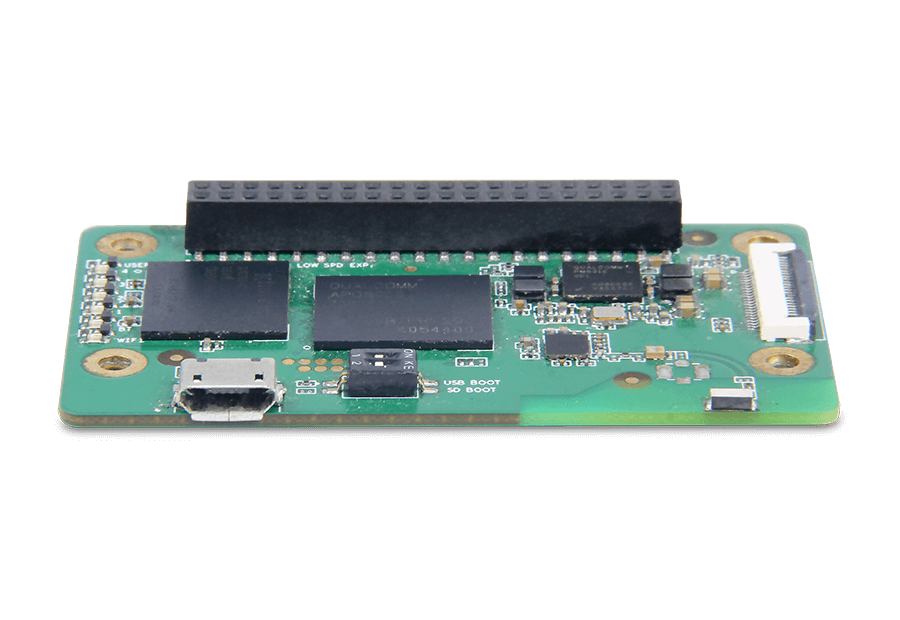

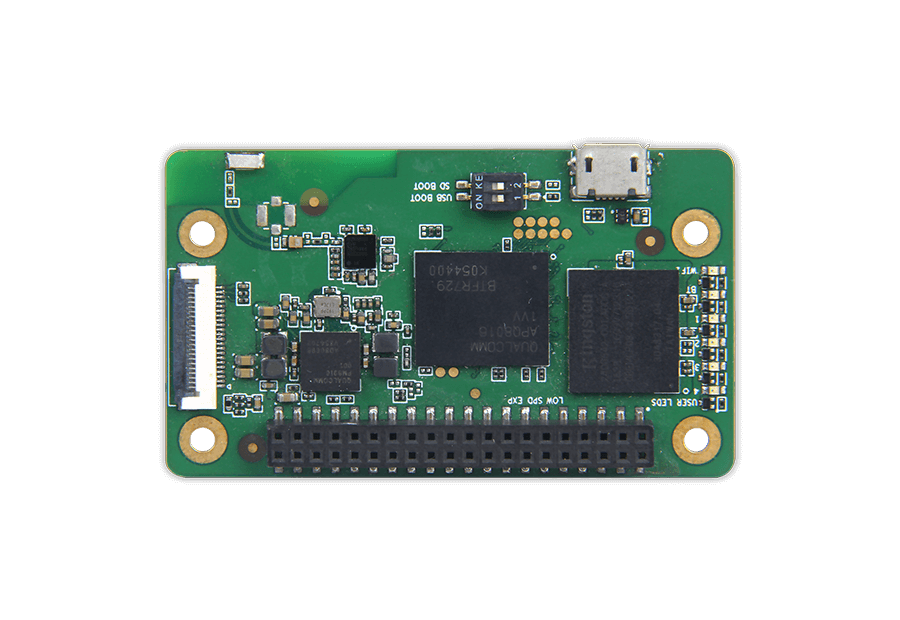

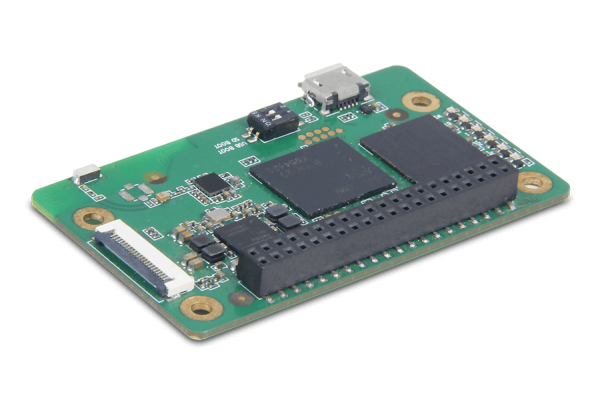

Embedded Platform based on Qualcomm Snapdragon 410 SoC
Developer Board 4 IoT
Geniatech’s Developer Board 4IoT features Qualcomm Snapdragon 410 processor, a Quadcore ARM® Cortex™ A53 at up to 1.2GHz clock speed per core, capable of 32-bit and 64-bit operation. It supports Android, Linux and Windows 10 and offers advanced processing power, WLAN, Bluetooth, and GPS, all packed into a board the size of a credit card. It is designed to support feature-rich functionality, including multimedia, with the Adreno™ 306 GPU, integrated ISP with up to 13 MP camera support, and 1080p HD video playback and capture with H.264 (AVC).
Qualcomm Snapdragon 410 quad-core
Developer Board 4 IoT features Qualcomm Snapdragon 410 processor, a Quadcore ARM® Cortex™ A53 at up to 1.2GHz clock speed per core, capable of 32-bit and 64-bit operation.
2G + 16G
The utilization of eMMC memory offers an array of benefits in terms of performance security and reliability,resulting in a richer end-user experience
Connectivity: 802.11n (2.4GHz) WiFi, Bluetooth
10/100 LAN provides more stable local network for video streaming.Dual band 802.11n (2.4GHz) WiFi gives wider signal coverage and less interference.
Design for Commerical & Industrial
Development Board 4 IoT is design for commerical and industrial envoirnment. It can be the system board for signage box, hotel, hospitality, education and many more.It can support different OS like Android, Windows or Linux, so it is easy for you to use or develop your own software.
- 1x MIPI-CSI: 1x 2-lane, up to 8MP
- External Storage
- 1x Micro SD socket
Qualcomm® Adreno™ 306 GPU
8GB or 16 GB EMCP
SD 3.0 (UHS-I)
1x MicroUSB 2.0 (device mode only)
On-board BT and WLAN antenna
• UART x2, SPI, I2S, I2C x2, GPIO x12, DC power
• 4 – user controllable
• 2 – for BT、WLAN and Ethernet activity
Linux based on Debian
Windows 10 IoT core
Operating Temp: -25°C to +85°C
RoHS and Reach compliant
