XPI-S905X3 – Open Source SBC

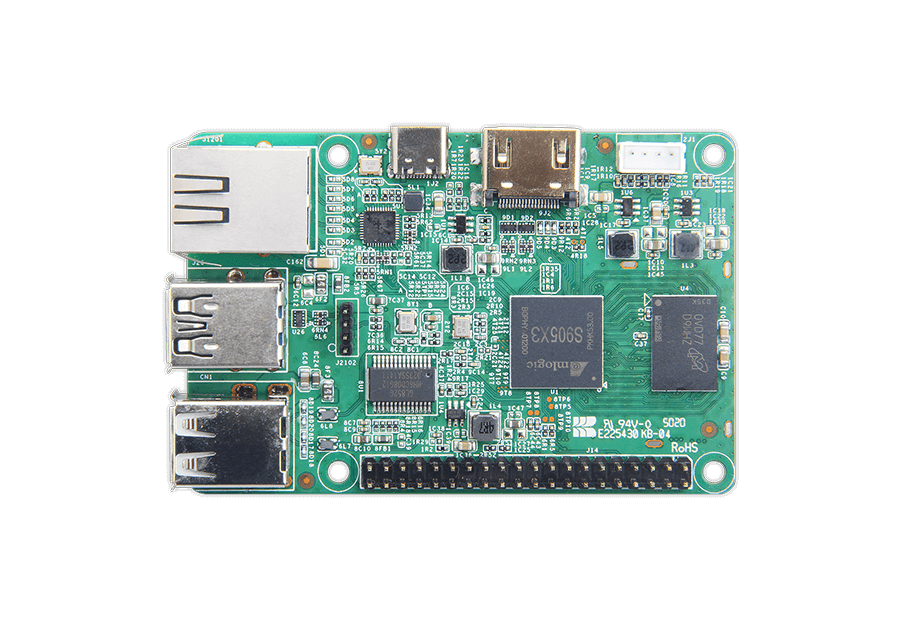

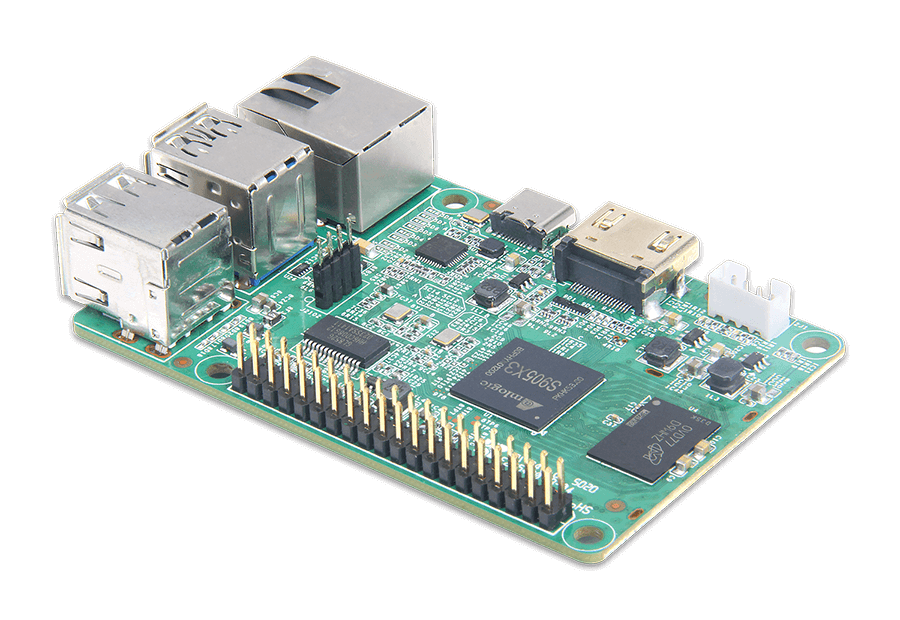

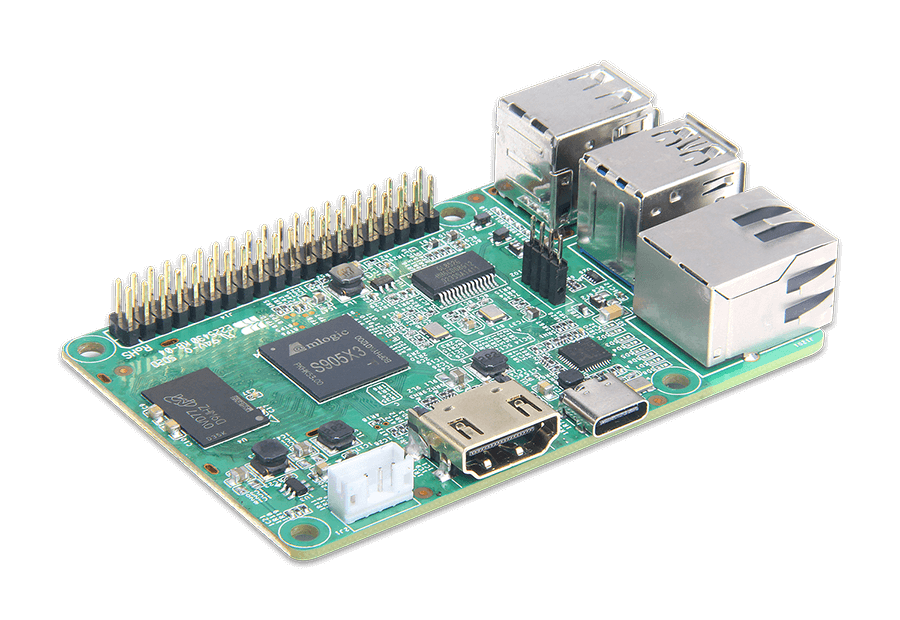

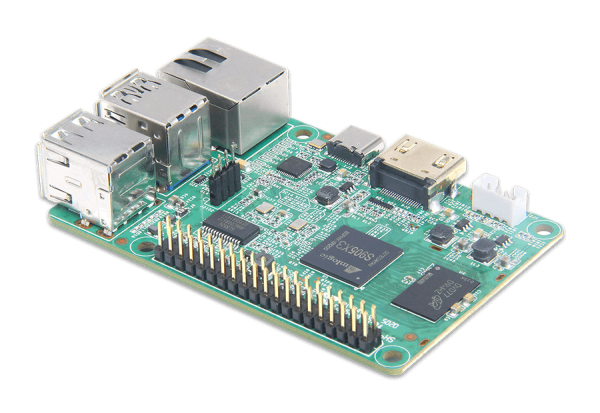

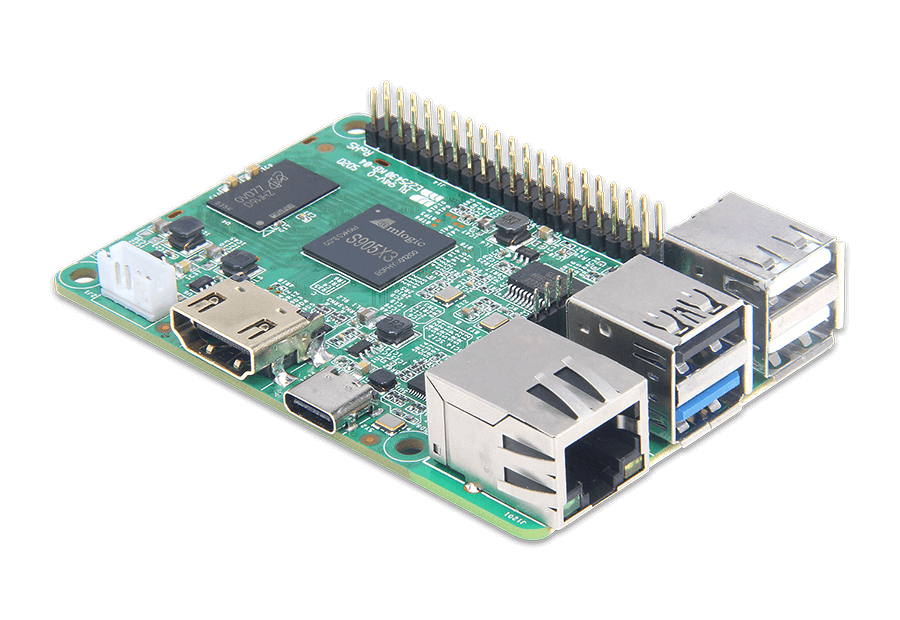

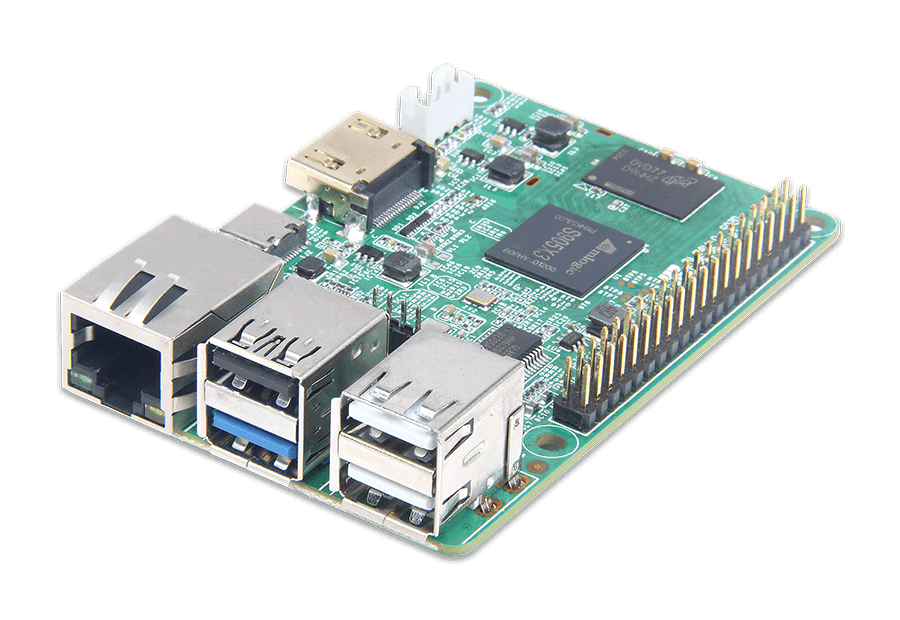

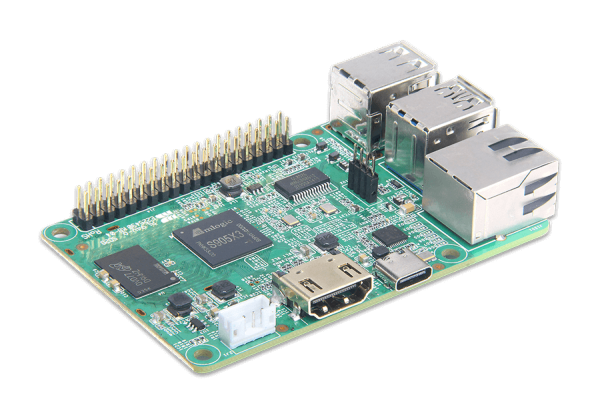

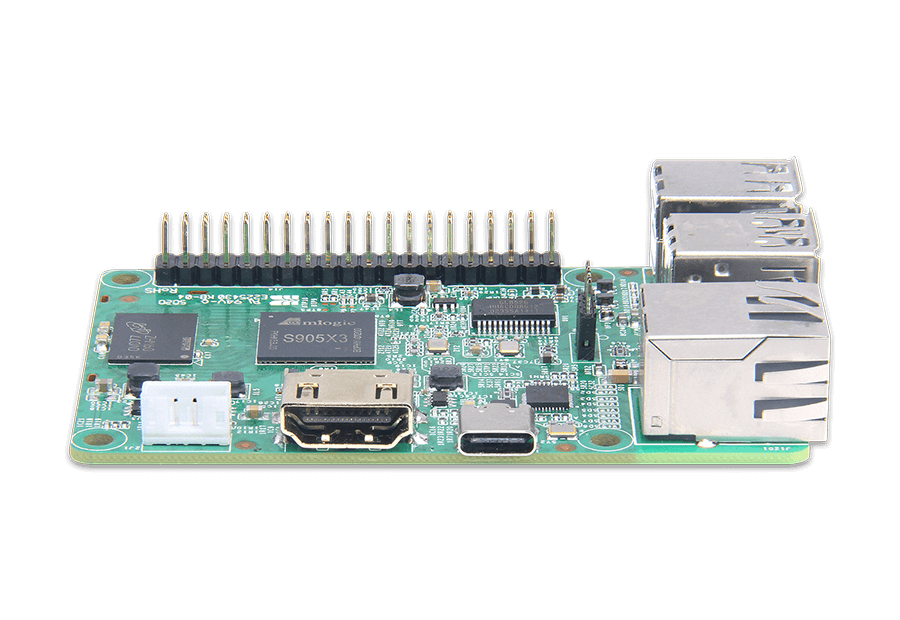

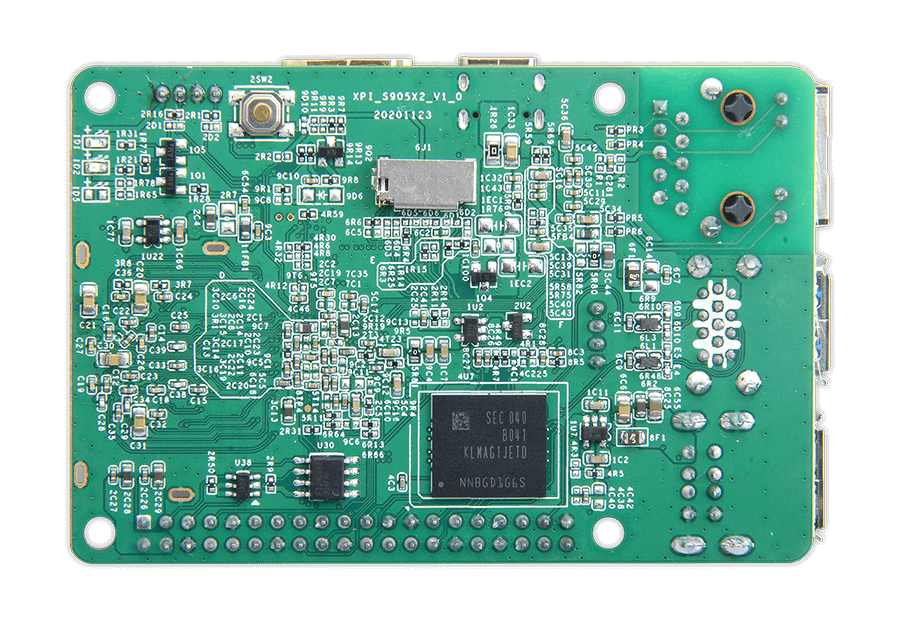

Geniatech XPI-S905X3 is a Raspberry Pi-like single board computer with an Amlogic S905X3 quad-core processor, 2GB of RAM, 8GB of eMMC storage, a 40-pin GPIO header, and a lot of I/O ports.

  • Raspberry Pi Form Factor, 85*56mm, Only the size of a bank card.
  • Amlogic S905X3 with Quad-core Cortex-A55
  • 1~4GB RAM + 8~32GB eMMc flash
  • 4*USB HOST, 1*HDMI® Out, 1* USB-C Power supply, 1*40-pin GPIO header
  • WiFi and Gigabit ethernet interface
  • Max display resolution: 4K@120fps
  • Android 9.0 OS

Buy a Sample

Get A Quote
Chipset Amlogic S905X3 (S905, S905X, S905X2, S905X4 optional)
Market area Global
OSD Language English/Chinese (multi language OSD)
Processor



CPU Quad-core Cortex-A55
GPU ARM G31 MP2 GPU
RAM 2GB(1GB Optional)
EMMC FLASH 8GB(16G/32G Optional)
Network Ethernet RJ45, 1000M
WiFi Optional
Bluetooth Optional
Interface TF Card Slot TF card *1(max. 64GB)
HDMI® HDMI® out*1
USB USB 2.0*3 and USB3.0*1
MicroUSB Power IN*1
Extension GPIO GPIO*28
Dimensions 85 mm * 56 mm
Adapter DC5V / 2A Cooling fin  WIFI Module(Optional (2.4G&5.8G / BT4.0))
Accessory Adapter and USB power line
