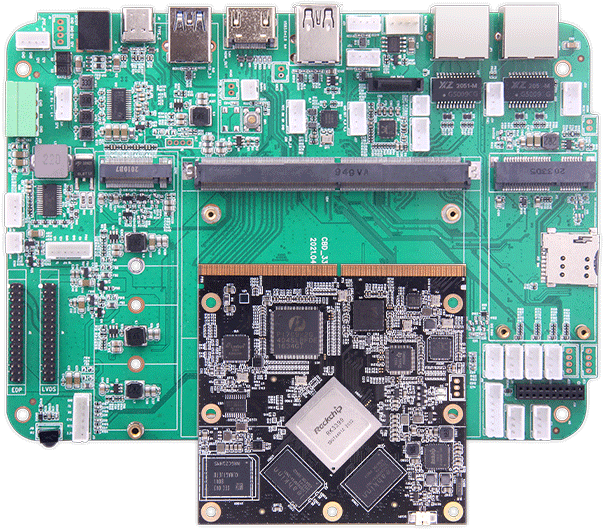

RK3399 SMARC Development Kit

SMARC3399 adopts RK3399 hexa-core (A72x2+A53x4) 64-bit processor, main frequency up to 1.8ghz, integrated with quad-core Mali-T864 GPU, providing excellent performance. Onboard M.2 PCle, 4GLTE extended interface, various display interface and communication serial port. Support Android10.0/Debian10.0 system, open source convenient enterprise secondary development. It is suitable for commercial advertising machines, vending machines and educational terminals with HD display, which can reduce the threshold of research and development and speed up the product development cycle

Get A Quote
Configuration is optional

DDR2/4G, eMMC16/32/64G

High scalability

Rich interface, compatible with mainstream screen

Stable and reliable

Built-in watchdog module, 7*24 hours stable operation without downtime

Dual operating system

Support Android&linux system

Compatible with Mainstream Display

Support LVDS/eDP/HDMI® display interface, can directly drive mainstream 5-100 inch display screen, support 4K hardware solution, support multi-screen display.

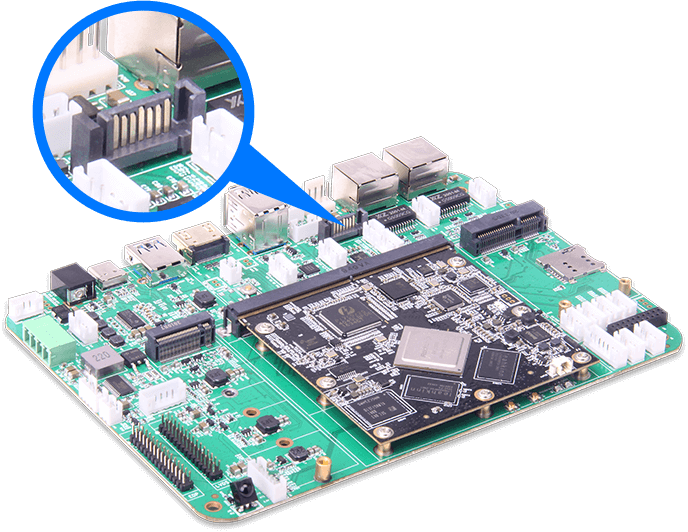

SATA Ports Supported

Compatible with mainstream hard disk interface, convenient for customers to read and write data, support larger storage space and faster transmission rate

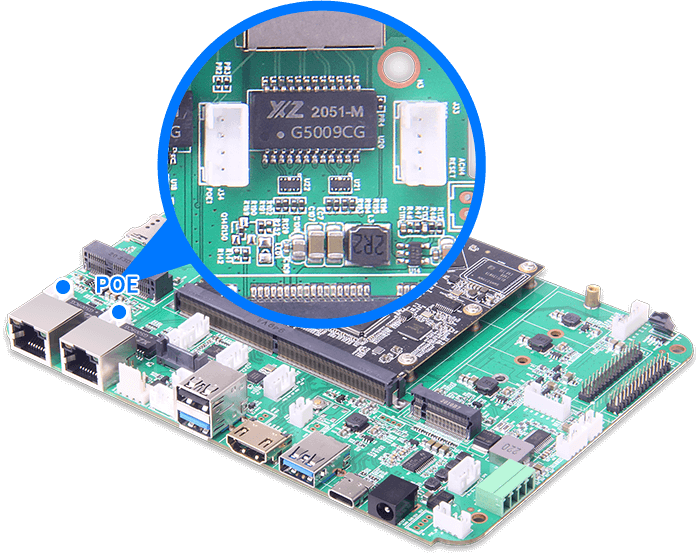

Can Support POE

Built-in POE port for connecting to the built-in POE module.

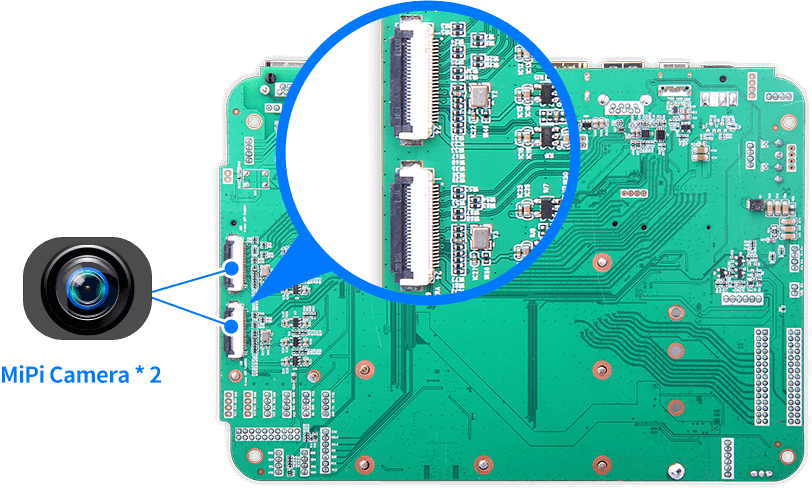

Supports Video Input From Dual MiPi Cameras

The port can be connected to an external camera or used to expand the input capability of multiple cameras

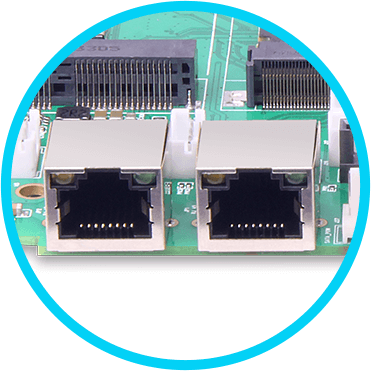

Dual Gigabit Ethernet Port

Dual GIGABit network ports, with better network expansibility, can access and transfer Intranet data through dual network ports, improve network transmission efficiency

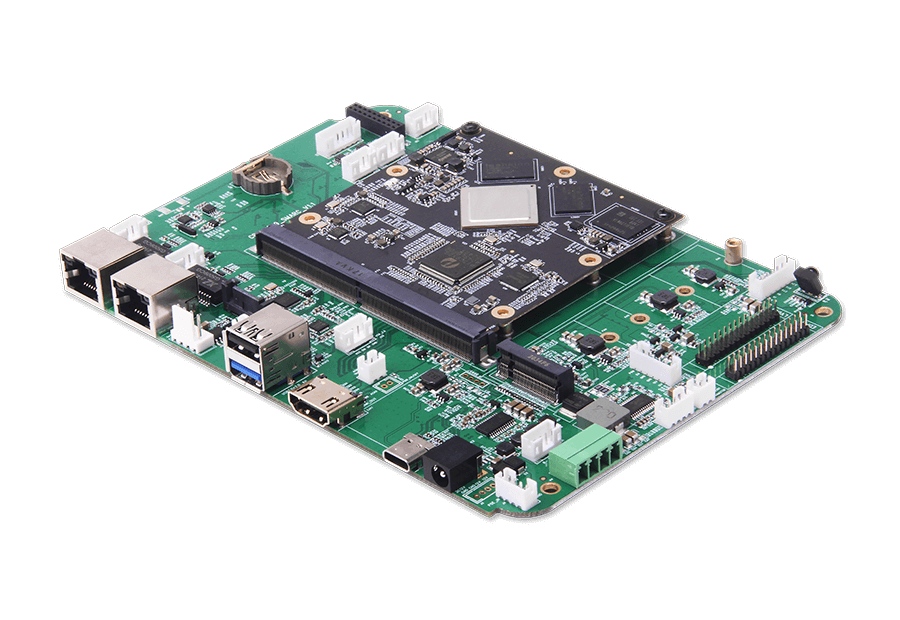

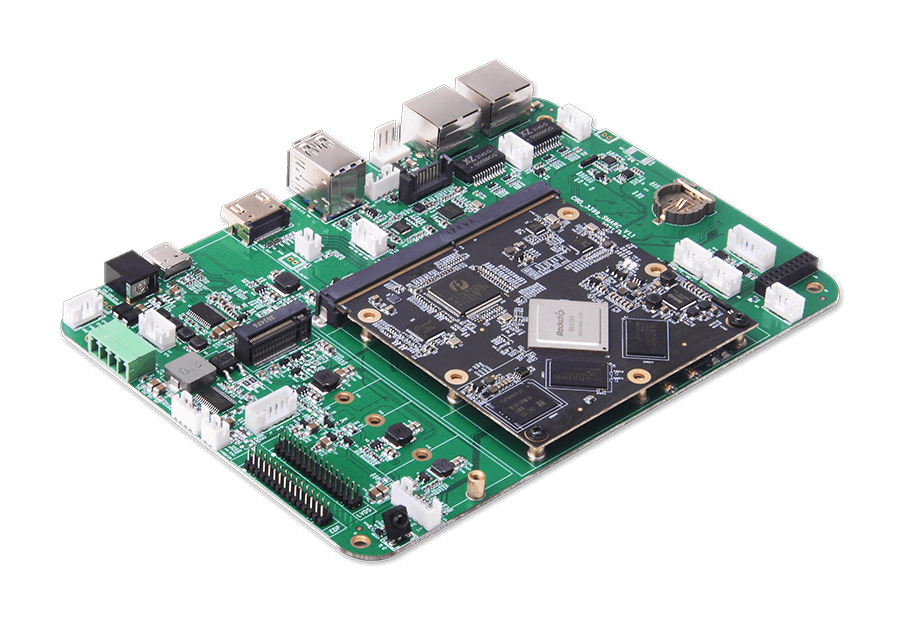

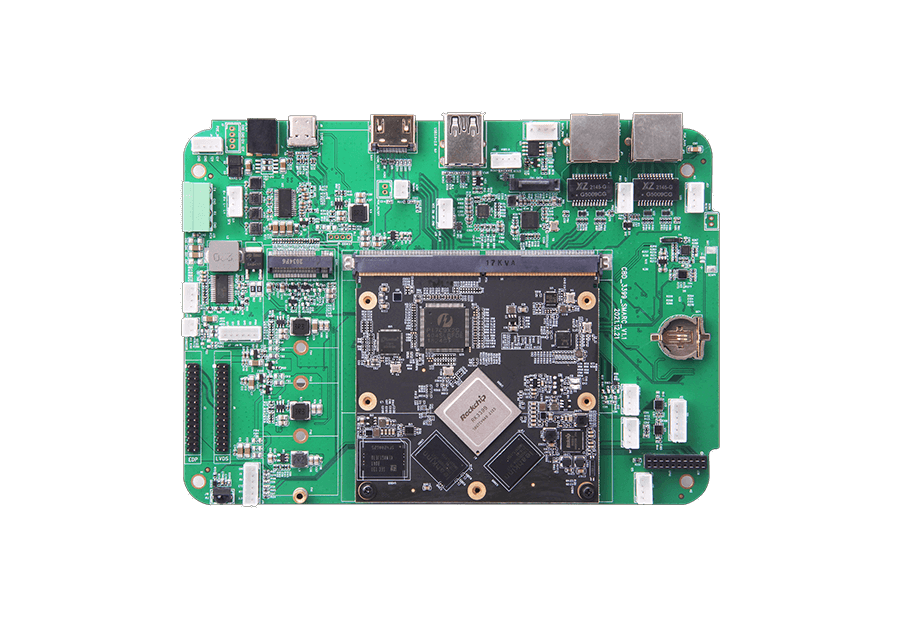

High Performance Industry Motherboard

The combination of core board and baseboard forms a complete high-performance industrial application motherboard, with richer expansion interfaces and stronger performance, which can be directly applied to various intelligent products to accelerate the landing of products

Support Personalized Customization

Shell structure customization

Customize the onboard function

Provide SDK for secondary development

Mass production services

Widely Used

It can be applied to advertising screen display,industrial PC, medical equipment, human-computer interaction, image processing, portable devices, automotive applications, infrared systems, control systems and other products in various industries

  • CPU
    Dual -core Cortex-A72 up to 1.8GHz
    Quad-core Cortex-A53 up to 1.4GHz
  • GPU
    Mali-T860 GPU
  • Internal Memory
    2G LPDDR4(4G optional)
  • Internal Storage
    16G EMMC(32G/64G optional)
  • OS
    Android 10.0/Debian10.0
  • Type-C
  • USB
    USB 3.0*2,USB2.0 *4
    *1(support4096 x 2160)
  • Earphone Socket
  • SATA
    *2(SATA*1,SATA power*1)
  • MIC in
  • RJ45
    *2(1000 Mbps Ethernet port)
  • LINE in
  • Mini PCIe
  • SIM card
  • UART
  • I2C
  • I2S
  • GPIO
  • LVDS
  • EDP
  • M.2
  • IR
  • CAN Bus
  • Speaker
  • BackLight
    *2(BackLight Power*1,BackLight *1
  • Power
    *2 (DC*1,POE*1) 12V2A
  • Size
  • Weight

SoM Specification

Carrier Board Specification
