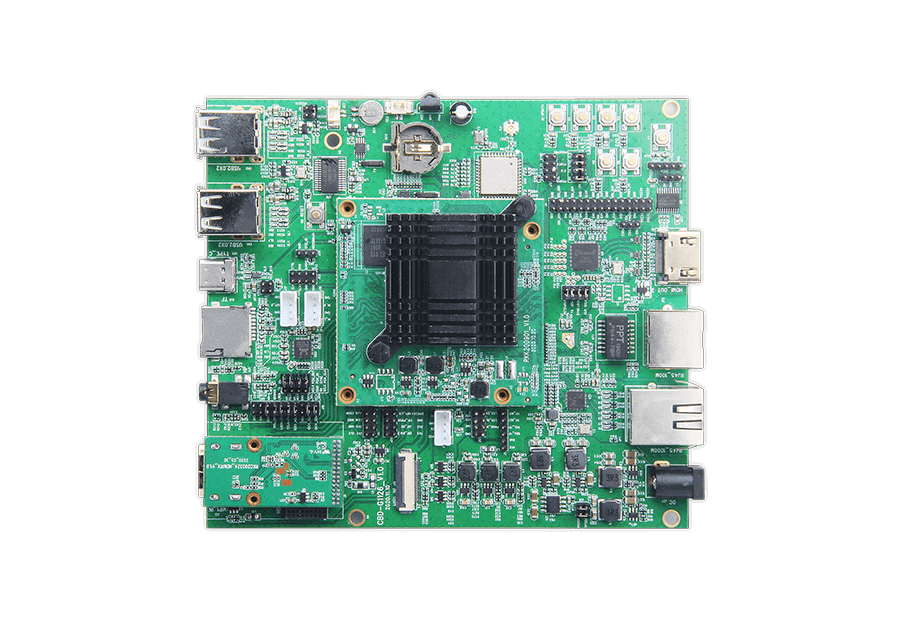

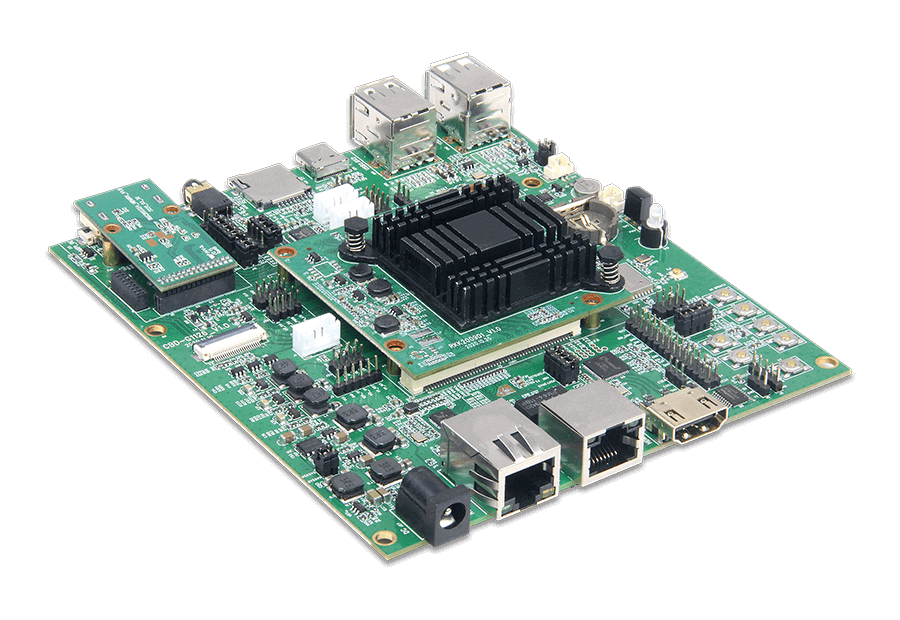

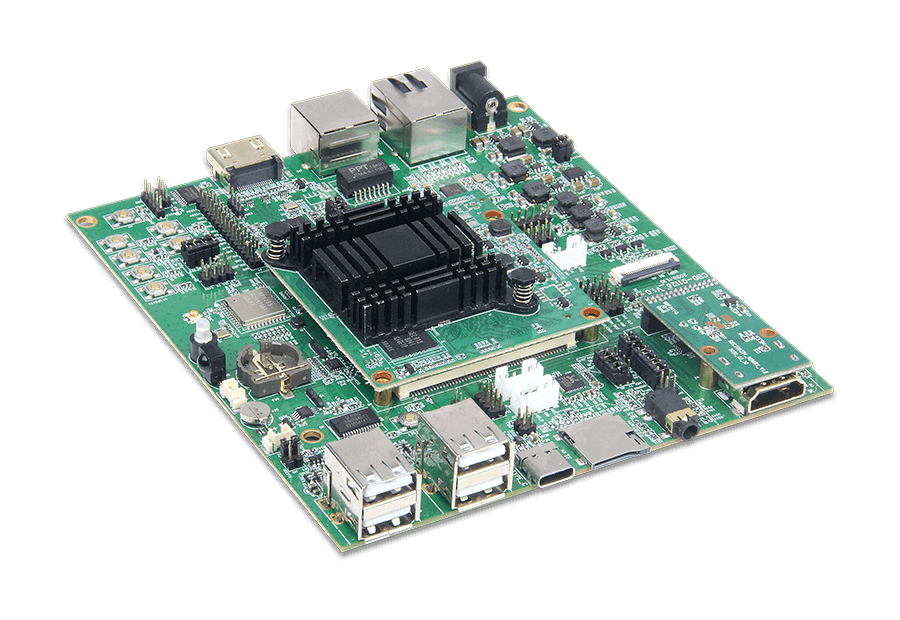

DB810 – Linux SBC Computer

i.MX 8M Mini is NXP’s first embedded multi-core application processor built with advanced 14LPC FinFET process technology, which can provide higher speed and higher power efficiency. Support wired network and 4G/LTE Internet access and data transmission functions; Support Geniatech defined compatible interface: GT-IoT interface (support ZigBee3.0, Z-Wave7, LoRa, BLE, etc.) IndependentLoRa module interface, compatible with several common module interfaces at home and abroad. Can be used in any general industrial and IoT applications.

Category: Single Board Computers Tags: ARM processor, Cortex-A53, Cortex-M4, i.MX 8, NXP

Get A Quote

High Reliability

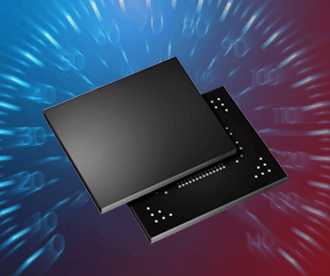

SoC: i.MX 8M Mini is NXP’s first embedded multi-core application processor built with advanced 14LPC FinFET process technology, which can provide higher speed and higher power efficiency. The i.MX 8M Mini series has Commercial and Industrial-level certifications, and is supported by NXP’s product life plan, and can be used in any general industrial and IoT applications.

Higher CPU speed

Higher power efficiency

Commercial grade temperature range

Industrial grade temperature range

High Scalability

Support wired network and 4G/LTE Internet access and data transmission functions; SupportGeniatech defined compatible interface: GT-IoT interface (support ZigBee3.0, Z-Wave7, LoRa, BLE, etc.) Independent LoRa module interface, compatible with several common module interfaces at home and abroad.

System Diversity

Supported systems: Android, Linux, Yocto (Linux)

Application Scenarios

Home audio/video systems, machine learning, vision,multimedia and industrial Internet of Things

Software and Hardware Customization Service

Other customized services + supply

Shell structure customization

Carrier board function customization

Provide SDK for secondary

Mass production service

Processor	i.MX 8M Mini Quad ARM
Processor	Cortex-A53&Cortex M4
Memory/Storage	2GB LPDDR4(1-4GB optional)
Memory/Storage	8GB eMMC5.1(8-128GB optional)
Connectivity	Dual band Wi-Fi 5 2×2
Connectivity	Bluetooth 4.1 BLE
Peripheral	USB*2
	Key*3
	TF slot*1
	SIM slot*1
	DIP switch*1
	Type C*1
	Audeo*1
	Ethernet*1
	PCIe*1
	LoRa*2
Indicator	LightLED*4
OS-support	Linux(Yocto)
OS-support	Android
Expansion connector	●2x 80 pin High-Speed connector
	Uart4,IIC4,MIPI DSI1,MIPI CSI1,PCIe1,SPI2,USB1,GPIO18
	SAI2,Eth1,Audeo*1
	●1×40 pin Mezznine boards High-Speed connector
	MIPI CSI1,MIPI DSI1,USB1,IIC2
	●1×20 pin Mezznine boards Low-Speed connector
	Uart2,IIC1,GPIO13,SPI1
	● GT-IoT connectpr
	LoRaZ-Wave,ZigBee,BLE,etc
Size (mm)	70 x 40
Operating	0°C to +70°C(Standard)
Temperature	-40°C to +85°C( optional )
Net Weight (g)	15
Power	5V
