| Chipset | RK3566 | |
| Market | Global | |
| PROCESSOR | System | Debian 10 |
| CPU | Quar core ARM Cortex-A55 CPU，Up to 1.8GHz | |
| GPU | ARM G52 2EE GPU，Support OpenGL ES 1.1/2.0/3.2. OpenCL 2.0. Vulkan 1.1 Embedded high-performance 2D acceleration hardware | |
| NPU | Integrated RKNN NPU AI accelerator, 1Tops@INT8, supports one-click switching Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/
Darknet |
|
| LPDDR4 内存 | 4G（maximum support 8GB） | |
| EMMC | 32GB eMMC (maximum support 64GB) | |
| Network | Wired Network | Onboard Gigabit Ethernet PHY supporting IEEE1588 |
| WIFI | WIFI Module 2.4G/5.0G | |
| Bluetooth | BT5.0 | |
| Interface | HDMI® out | *1 （最高支持 4Kp60） |
| I2C | *1 | |
| RS232/485 | *1 RS232;*1 485 | |
| Mic+Audio out | *1(Mic+Audio out 2-in-1 Seat) | |
| Amplifier Speaker | *1 | |
| USB | *1 USB 2.0 (OTG)；1 USB3.0 | |
| MIPI-CSI | *1(4 Lane) | |
| MIPI DSI | *1(4 Lane) | |
| LVDS | *1(2 Port) | |
| M.2 | *1 | |
| GPIO | GPIO 8pin(2 in/2 out)+1*5V/1*3.3v/2*GND | |
| POE | 12V | |
| Supply Voltage | DC 5V / 2A 12V/2A | |
| size | 120*60*mm | |
| Work environment | relative humidity: 10% ~ 90%
Storage temperature: 0 ~ 85℃ operating temperature: 0 °C ~60 °C |
|

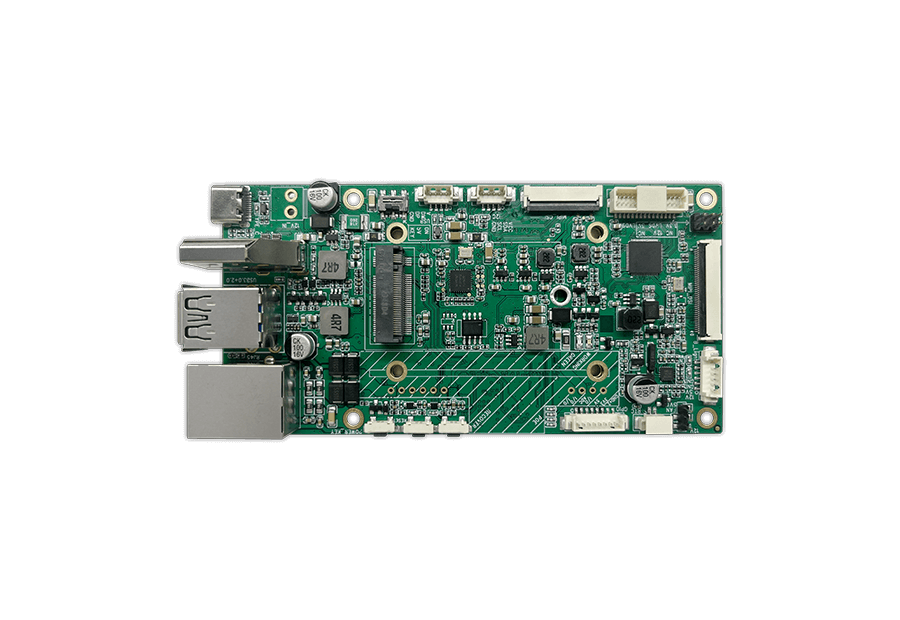

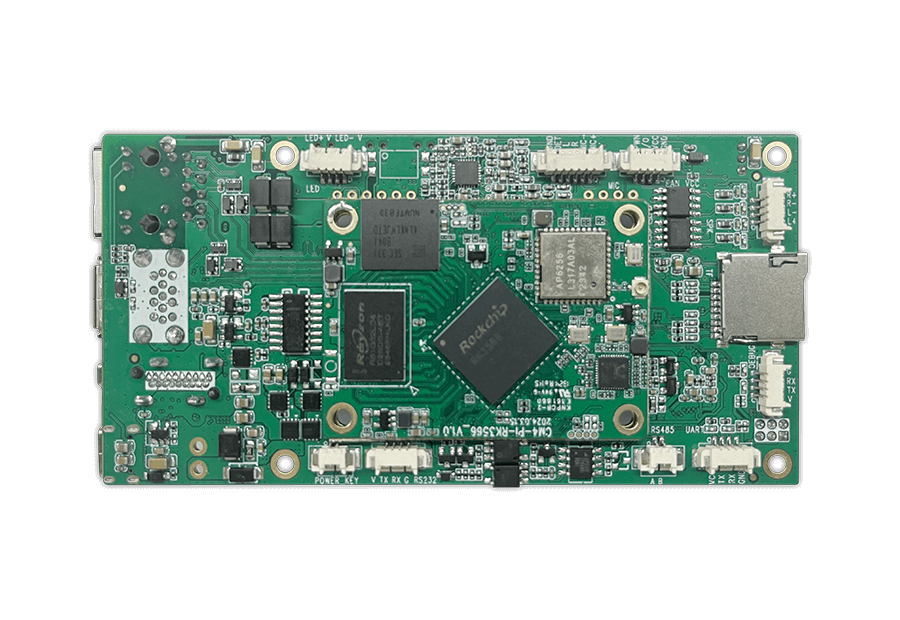

CBD-CM4-PI-RK3566
CBD-CM4-PI-RK3566 is a development board based on the Rockchip RK3566 platform, which can be used as an open system or as an embedded board to be integrated into end-products, with a small-size, ultra-thin design, rich interfaces, and powerful functionality, and is mainly suitable for commercial displays as well as traffic advertisement display light areas.
The key features of the product include: Rickchip RK3566 high-performance, low-power 64-bit quad-core processor, support for HDMI® display, resolution up to 4KP60, support for hardware video decoding, resolution up to 4KP60, support for hardware video encoding, resolution up to 1080P60, 4GB of LPDDR4 memory (up to 8GB), 32GB of EMMC (up to 64GB), USB OTP (up to 1080P60) and USB OTP (up to 1080P60). 64GB),Type-C port for USB OTG, Bluetooth 5.0, Dual-band 2.4/5 GHz wireless LAN.
