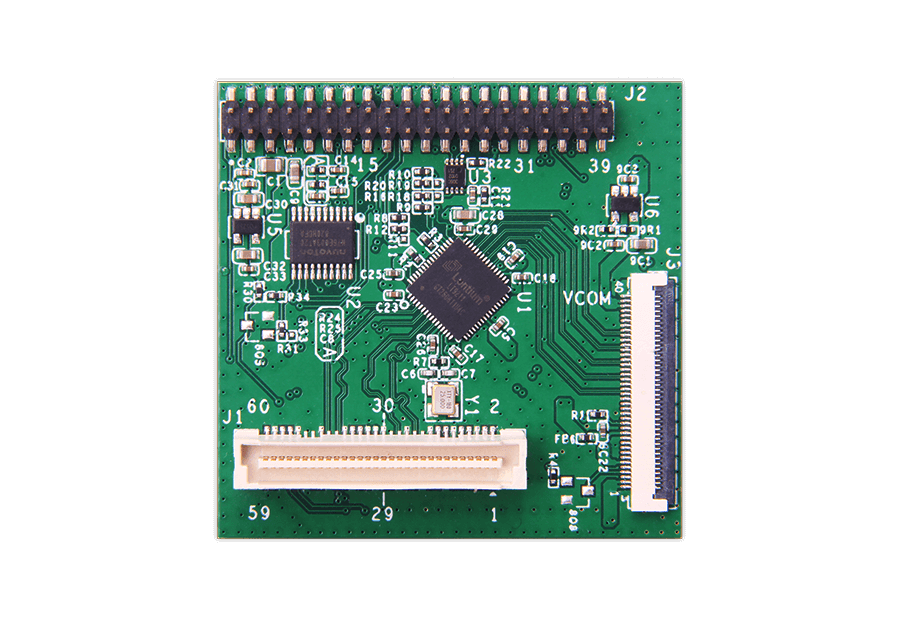

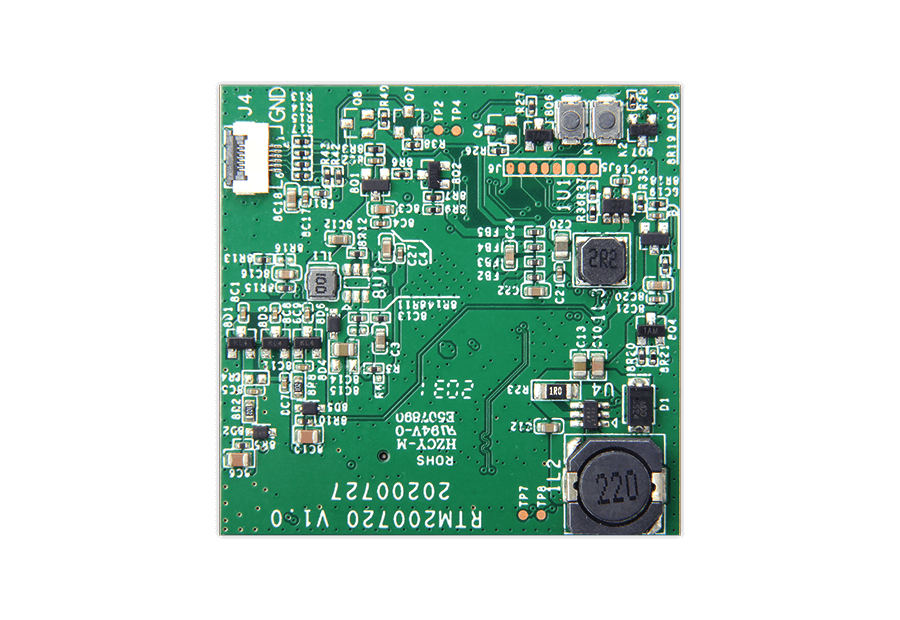

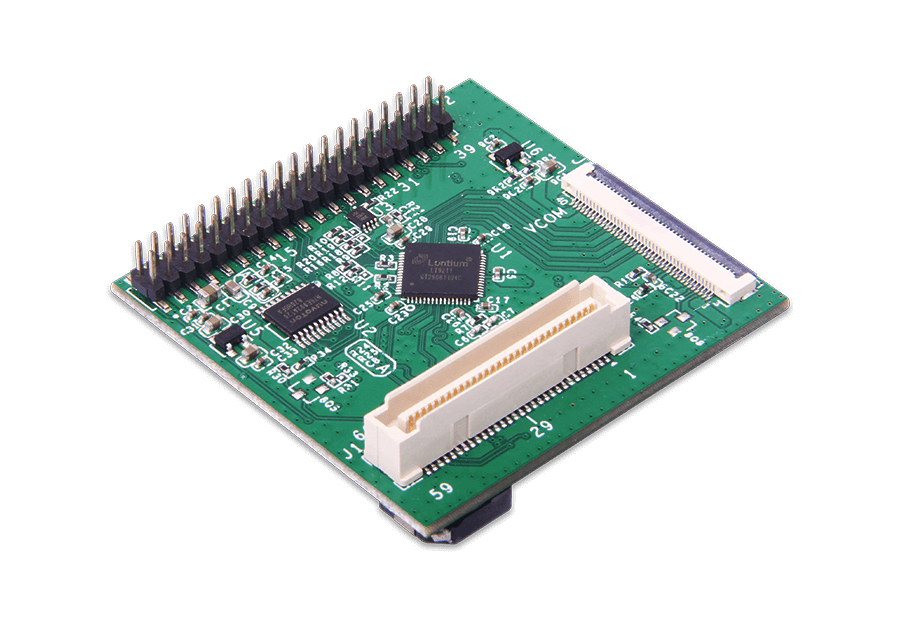

Geniatech LVDS conversion board uses LT9211 multi-channel display chip is adopted to realize various TFT display，Can realize MIPI to LVDS, MIPI to RGB, 40Pin FPC interface is provided for connecting an 8-inch TFT screen and a 6Pin FPC interface is provided for connecting a TP touch screen.,LVDS conversion board for DB4/DB11 enables rapid development of TFT screen applications and bulk deployment of products. Ideal for surveillance, video conferencing and even robotics projects.

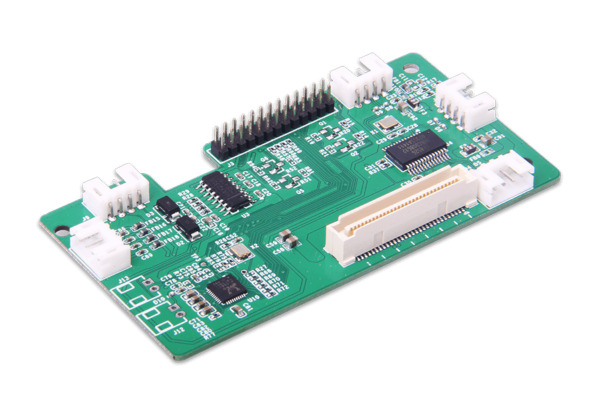

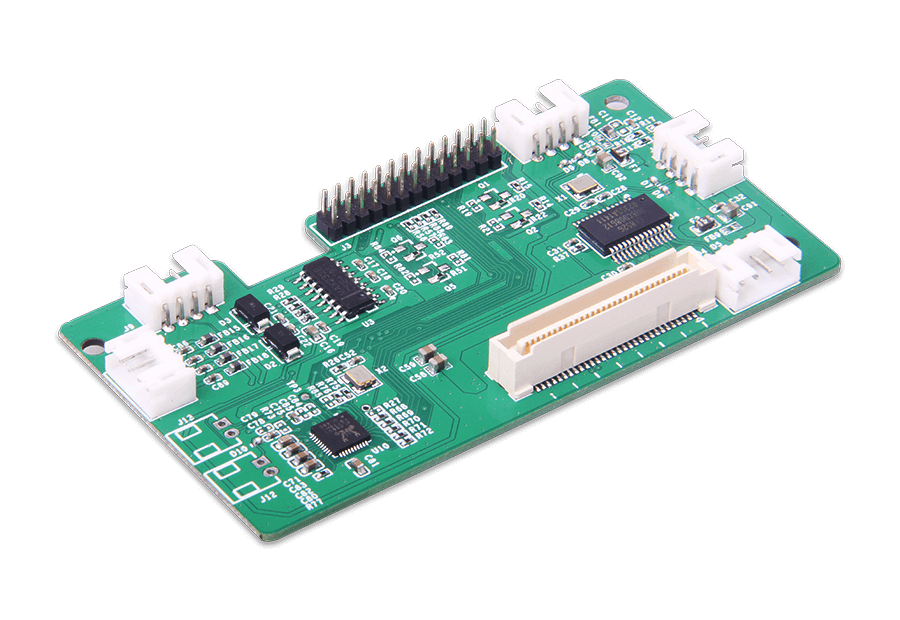

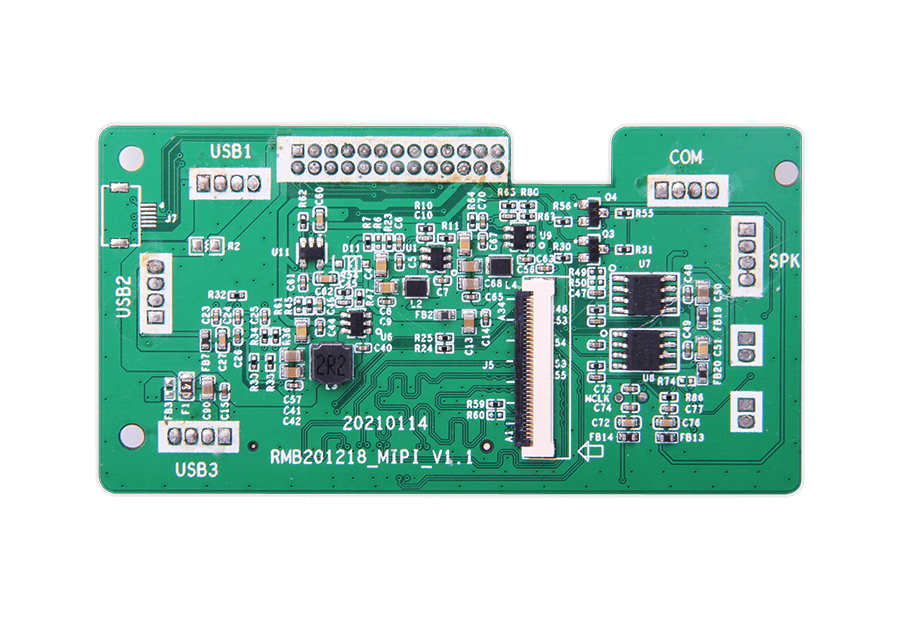

Geniatech MIPI conversion board,provides a 34Pin FPC interface for connecting to MIPI screens. It also provides a 6Pin FPC interface and USB interface for connecting to TP touch screens. With MIPI conversion board, you can easily integrate MIPI touch screens into your DB4/DB11 projects. It is very suitable for communication field, artificial intelligence, intelligent healthcare, Internet of Things (loT) and even robotics projects.
34Pin MIPI FPC port
40Pin TFT FPC port
6Pin TP FPC port
Provide
HIGH SPEED
LOW SPEED
connector Interface
Display used interface
I2C, UART
GPIO, USB
Backlight power supply of display is
9.6V260mA
which meets the common TFT power supply
Supported systems
Geniatech DB4：Linux, Android, Windows 10 loT
Geniatech DB11：Linux, Android, Yacto
