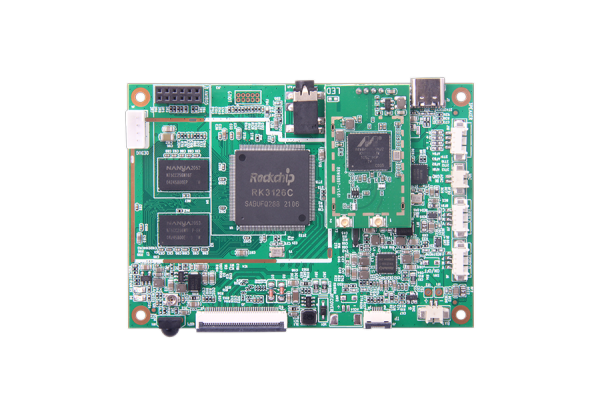

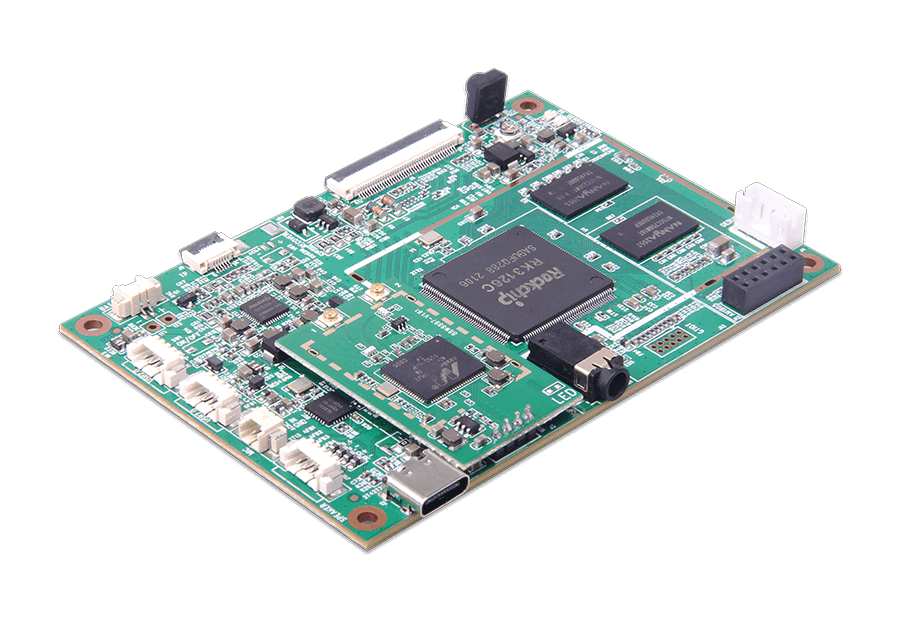

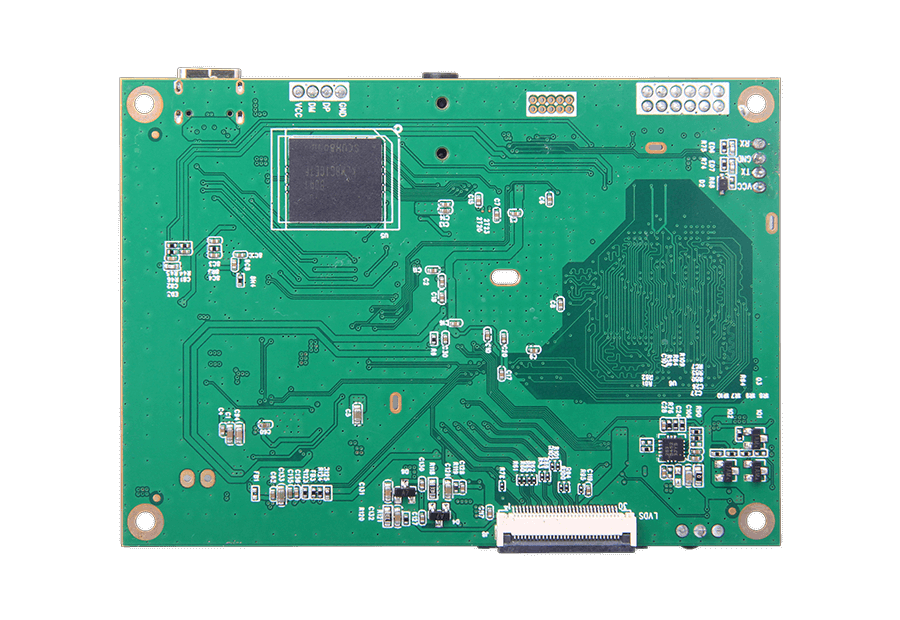

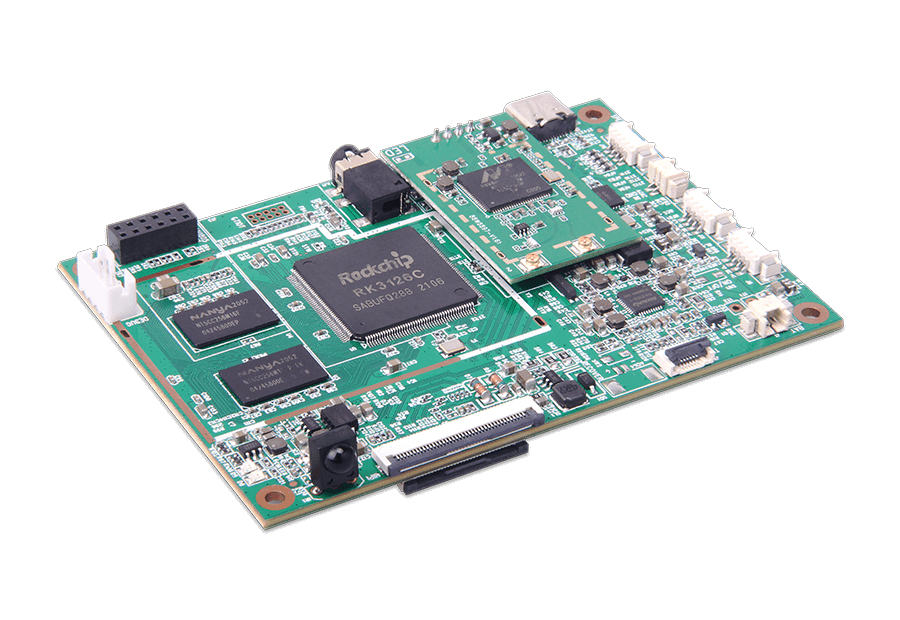

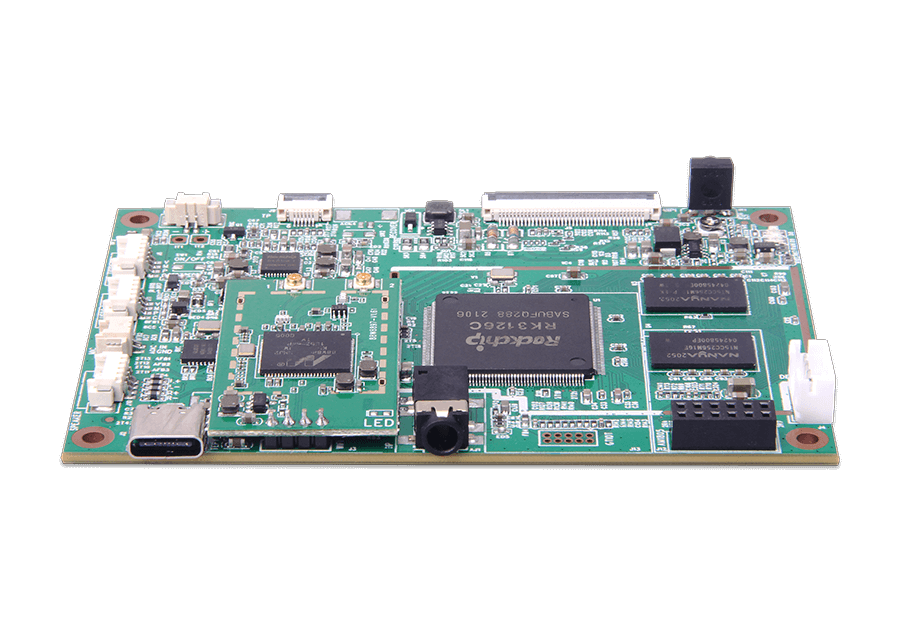

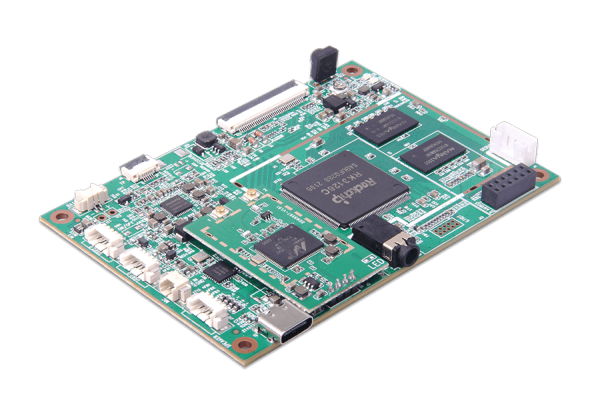

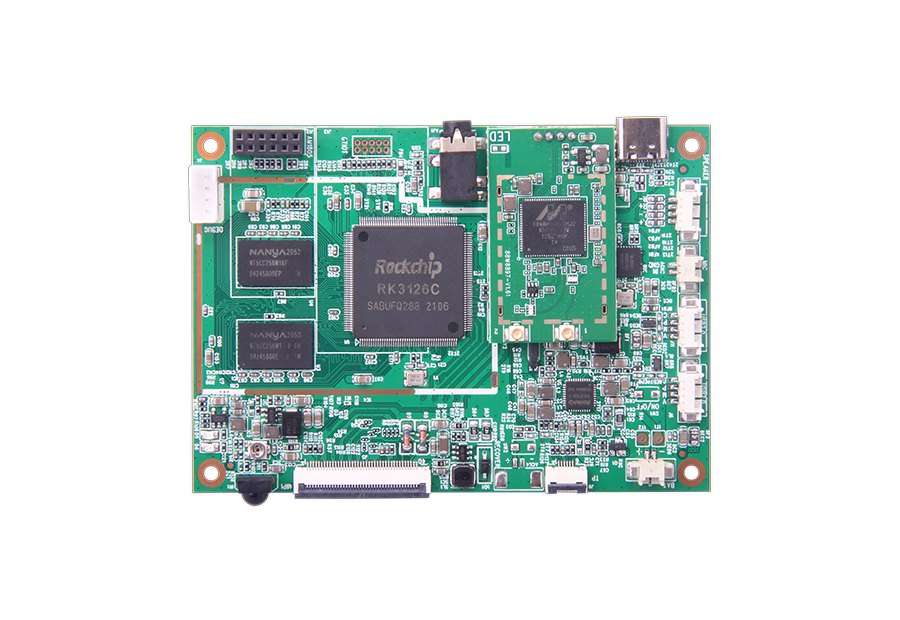

DB3126

DB3126 adopts cortex-A7, 1.2GHz high performance Quad-core processor, built-in Mali400 MP2 GPU, supports smooth high-resolution display and mainstream games, supports Android/Linux dual operating system, is a motherboard with both high performance and stability.

Get A Quote

High Performance Graphics and Video Processor

Using ARM mail-400MP2, built in 2D accelerator, support OpenGL ES1.1/2.0, can achieve (H.264, VC-1, MPEG-1/2/4, VP8, MVC) and other multi-format 1080P@30fps video decoding, support H.264, MVC, VP8 and other video coding

Multiple Screen Interfaces

Supports LVDS/MIPI interface screen to meet your various needs.

Realize Unattended

The port can be connected to an external camera or used to expand the input capability of multiple cameras



Supports Built-in Lithium Battery

In case of emergency, the external power supply is interrupted, and the internal lithium battery can be used for continuous power supply.

Support Personalized Customization

Optional hardware configuration

CPU/memory/storage/WiFi+BT

Provide SDK secondary development

Customers can compile sensitive requirements by themselves

MDM customization (remote device management)

Remotely collect device status information and control the device (update firmware, uninstall/install APK, restart, standby/wake up, real-time advertising…)

APP customization

Easy to realize customer’s customized requirements, safe, fast and low-cost.

Widely Used

DB3126 can be used with 10 inch LCD screen, suitable for household appliances, industry, commercial display and other fields


CPU Quad-core Cortex-A7 up to 1.2GHz
GPU Mali400 MP2
Internal Memory 1G DDR3(512M/2G optional)
Internal Storage 8G EMMC(16G optional)
OS Android/Linux
Typc-c *1
WiFi/BT Bluetooth/NFCSingle-ChipSoC
IEEE802.11ac/n/a/g/b,Bluetooth4.0
USB USB2.0*2
MIC *1
LVDS *1
MIPI *1
Speaker *1
RTC *1
Earphone *1
GTIOT *1
IR *1
Power 5V/2A
Size 93*65mm
Weight 45g
