| Input Signal | Satellite TV Antenna Input |
| Receive Frequency | TV 950 ~ 2350 MHz |
| Standard | DVB-S ETSI EN 302 421 DVB-S2 ETSI EN 302 421 and ETSI TR 102 376 DVB-S2X ETSI EN 302 307-2 V1.1.1 |
| Multi-Standard demodulation | Demodulation Type:QPSK/8PSK/8APSL-L/16APSK-L/32APSK-L Channel bit rate up to 180Mbps Symbol rate form 1Msps to 45 Msps QPSK/8PSK/16PSK-L up to 45Msps;32PSK-L up to 38Msps |
| Interface | USB Port:Mini USB Power:Power Supply 9V/1.5A RF in:F connector |
| Support OS | Windows Mac OS Linux System:Ubuntu 20.04.2; ker5.8.0-50 Rspberry PI:Pi3/Pi4 Ubuntu 20.04.2 LTS ;ker5.10.92 |
| Housing | plastic |
| Environment | Operation Temperature:0-45℃ Storage Temperature:-20-60℃ |
| Dimensions | 145.2mmX56mm |
| Packit list | 1X SU6000 1X Quick install Guide 1X Power Supply 1X Mini usb to USB2.0 adapter cable |

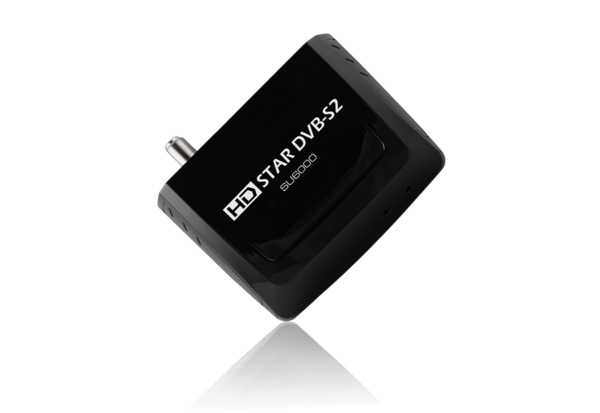

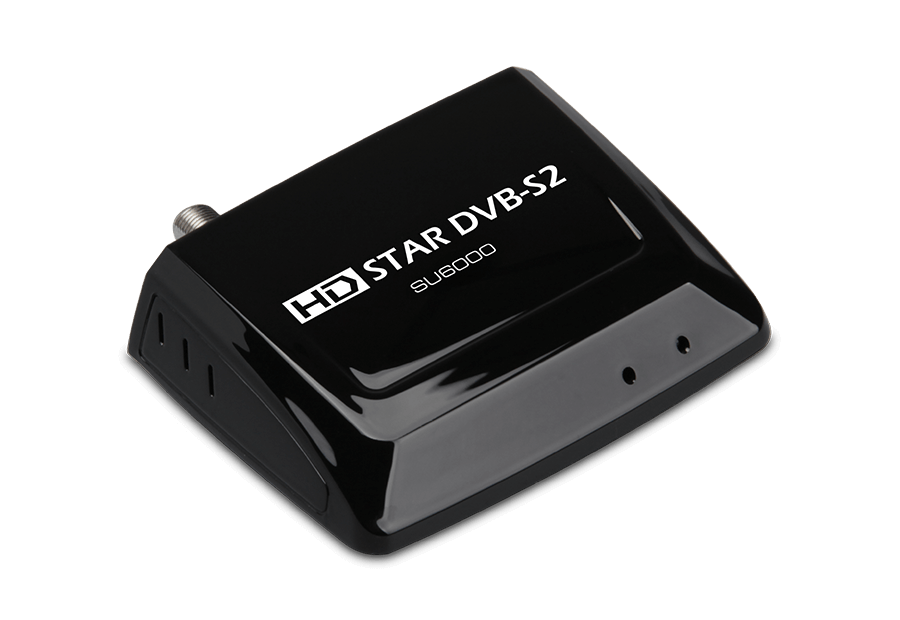

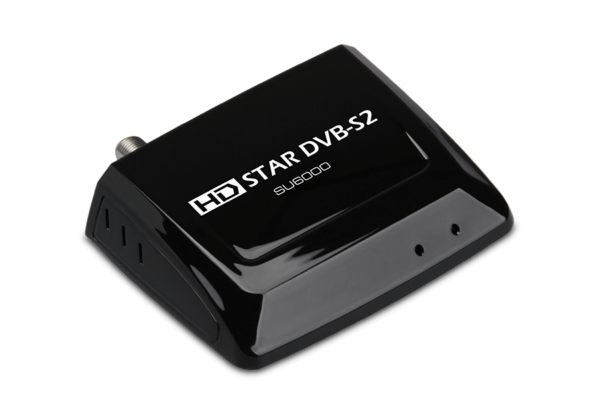

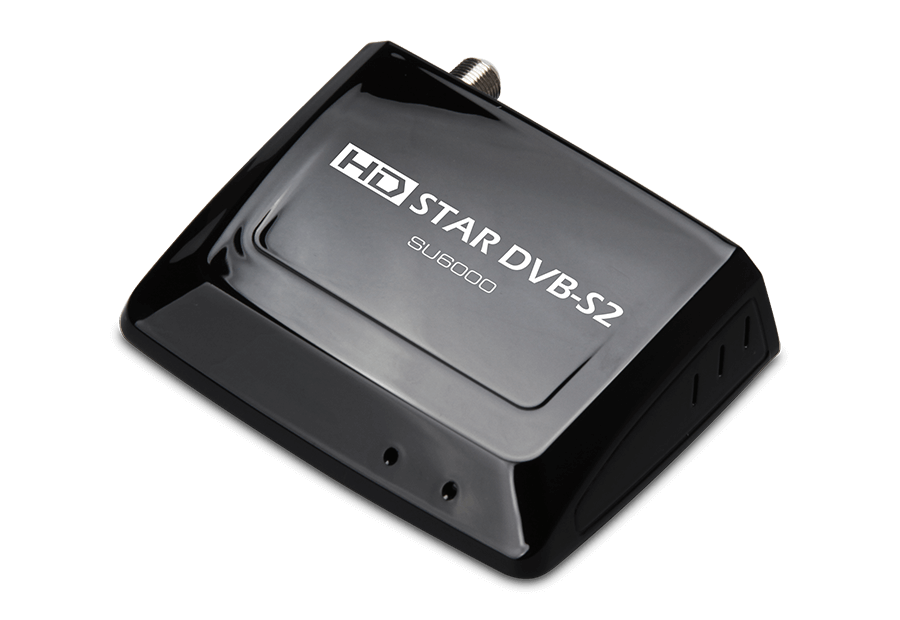

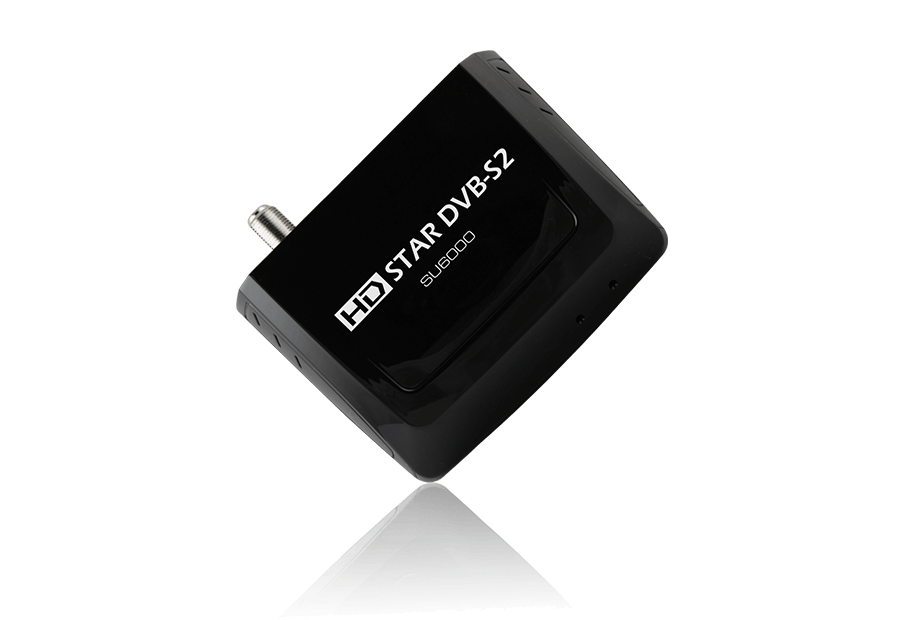

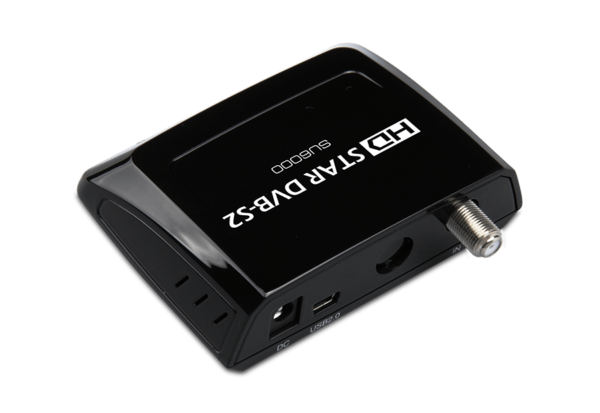

SU6000 HDStar DVB-S2 TV Box
Geniatech SU6000 is a digital HD satellite receiver box with USB2.0 interface, which allows you to access free to-air high definition and standard definition digital satellite TV and digital radio in on your PC. It can be used to record and save TV programs directly to your PC’s hard disk in MPEG -2/H.264/H.265 TS format.
It’s also packed with a unique feature of allowing you to pause a live broadcast and continue from where you left with the Time Shift function.
- Support OS: Windows/Linux/Rspberry Pi/Mac OS
- High receiver sensitivity
- Support DVB S2X/DVB S2/DVB S Standard
- Support H.265 Decorder
