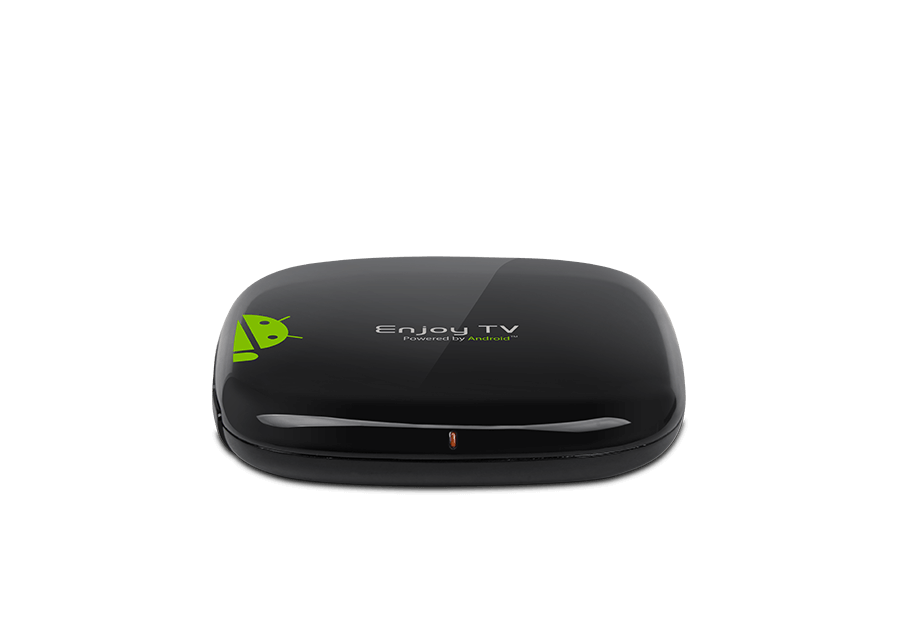

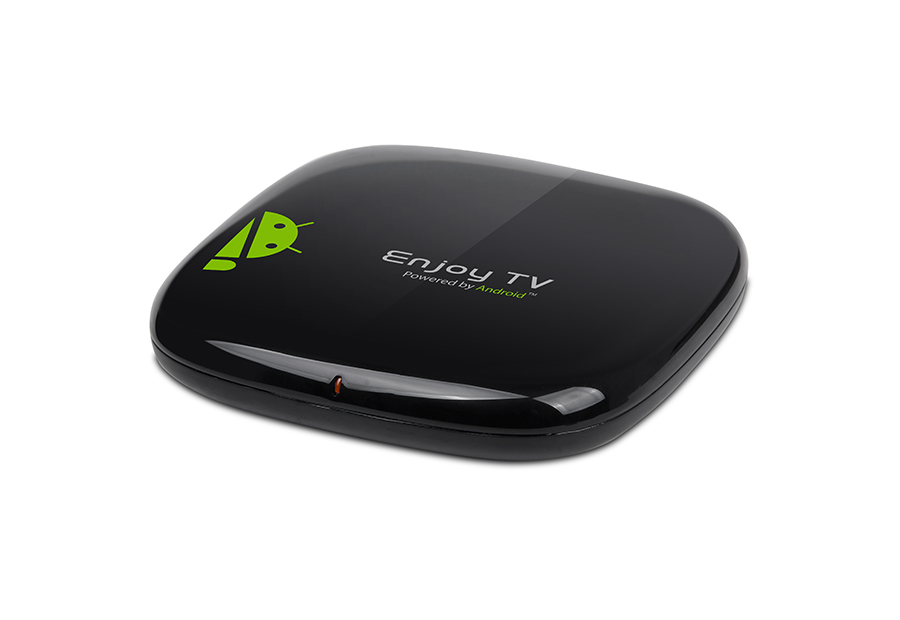

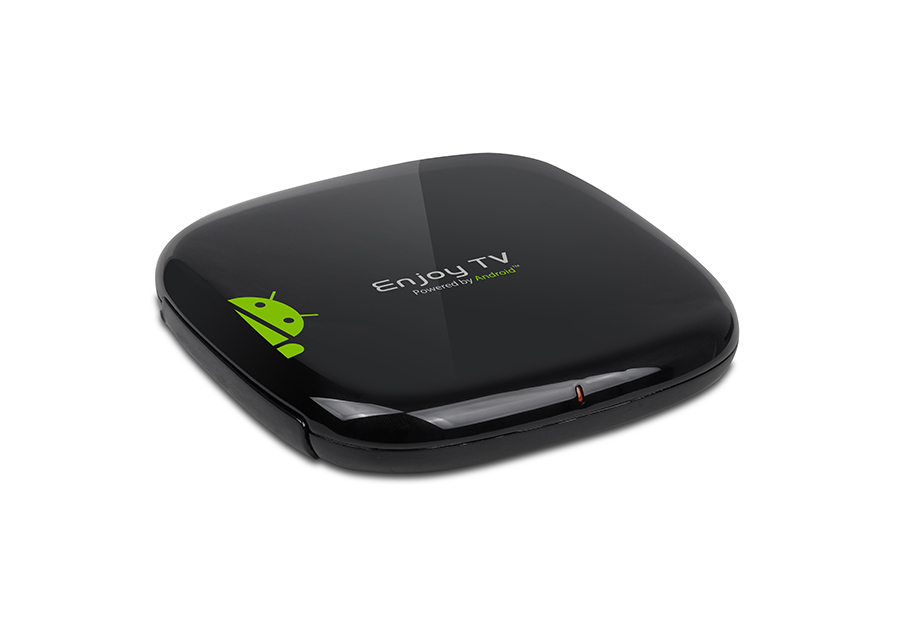

ATV496 Series Android TV Box (Amlogic S905X4)

ATV496/ATV496Max is a high-performance and ultra-low-power 4K media player, supports wired/wireless flexible combination of communication modes, can enjoy your favorite TV programs and can freely install various applications software.

Buy a Sample

Categories: ,
Get A Quote
Small size, strong performance
Amazing audio and video capabilities
Good heat dissipation effect
Personalized customization

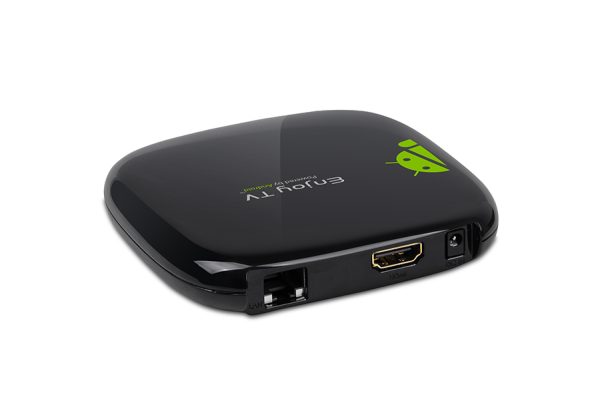

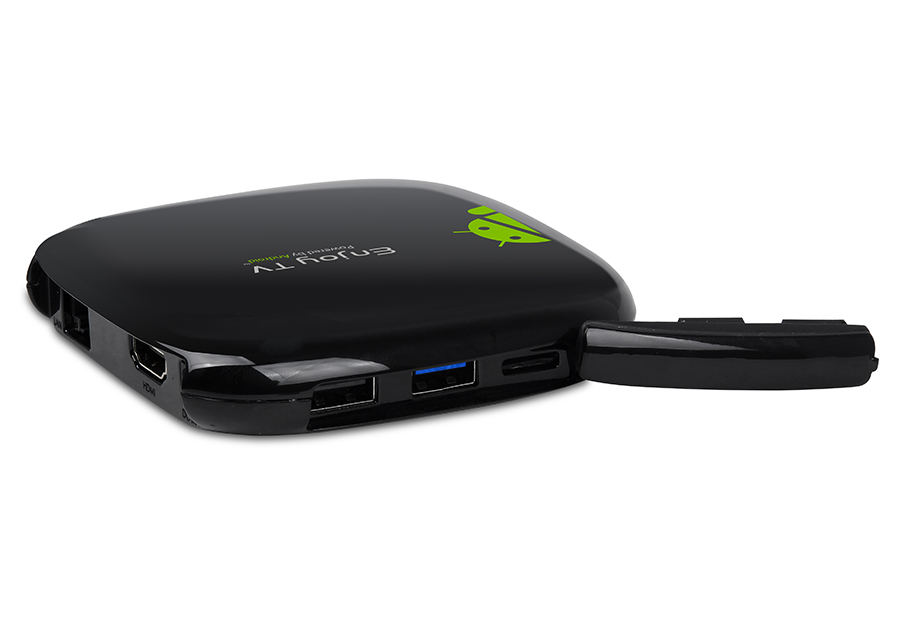

Multiple Interfaces And Cost-effective

  • Video output: 1*HDMI®
  • Audio output: 1*HDMI®+1*BT
  • LAN: 1*RJ45 10/100/1000M
  • WIFI:IEEE 802.11 a/b/g/n/ac 2.4G/5.8G (optional)
  • BT:BT5.0
  • USB:1*USB 3.0+1*USB 2.0
  • Micro SD:1*Micro SD

Amazing Video Capabilities

  • New hardware and android11.0 system
  • Support mainstream video hardware decoding
  • AV1/MPEG4/AVS2/VP9 up to 4Kx2K@60fps / 4x1080P@60fps
  • Support Dolby Visionoptional, HDR10+,HDR10, HLG HDR

Excellent Capacity of Radiation

The honeycomb hole design is adopted in the middle of the bottom shell where the heat is concentrated, allows the heat to be dissipated in time, and low temperature rise for long-term high frequency operation.

Achieve the Value of Unattended

Built-in independent and reliable hardware watchdog, which can realize 7*24H unattended continuous and stable work, release manual work to improve efficiency

Support Personalized Customization

Optional hardware configuration

CPU/memory/storage/WiFi+BT

Provide SDK secondary development

Customers can compile sensitive requirements by themselves

MDM customization (remote device management)

Remotely collect device status information and control the device (update firmware, uninstall/install APK, restart, standby/wake up, real-time advertising…)

APP customization

Easy to realize customer’s customized requirements, safe, fast and low-cost.

Support CEC

Application Scenarios

Product ATV496MAX ATV496
SoC Amlogic S905X4 Amlogic S905X3
CPU Quad-core Cortex-A55 Quad-core Cortex-A55
RAM 4GB DDR4(2GB Optional) 2GB DDR4(4GB Optional)
Storage 16GB eMMC(8G/32G/64GB Optional) 16GB eMMC(8G/32G/64GB Optional)
Network 1000M ethernet, 2.4G/5.8G Dual band(Optional) 1000M ethernet, 2.4G/5.8G Dual band(Optional)
I/O HDMI®×1, USB3.0 ×1, USB2.0 OTG ×1, MicroSD ×1 HDMI®×1, USB3.0 ×1, USB2.0 ×1, MicroSD ×1
Telecontrol BT/IR BT/IR
OS Android 11 Android 9.0
Operating temperature 0~50℃ 0~50℃
Size 100×100×24mm 82×82×19mm
Weight 162g 159g
