| Chipset | Rockchip RK3399 |
| Market area | Global |
| OSD Language | English/Chinese(multi language OSD) |
| OS | Android 10 or above |
| Android 10 or above | Android 10 or above |
| CPU | Dual-core ARM A72 processor@ 1.8GHz And Quad Core A53 @ 1.4GHz |
| GPU | ARM Mali-T860MP4 GPU 800MHz |
| DDR | 2GB（4G Optional） |
| EMMC FLASH | 8GB（16G/32G/64G Optional） |
| Ethernet | RJ45, 10/100/1000M |
| WiFi | IEEE 802.11a/b/g/n/ac , 2.4G + BT + 5.8G |
| SDM Connector(Intel) | PCIe* x 8 (98pin) SMT connector |
| USB | USB 2.0*2 |
| M.2 | M.2*1 |
| 3.5mm jack | Audio Out |
| Battery port | External Battery |
| Dimensions | 60 mm * 100 mm * 25mm |
| 3.5mm JACK | Audio Out |
| SDM Connector | PCIe* x 8 (98pin) SMT connector |
| Antenna Interface | Antenna Interface |

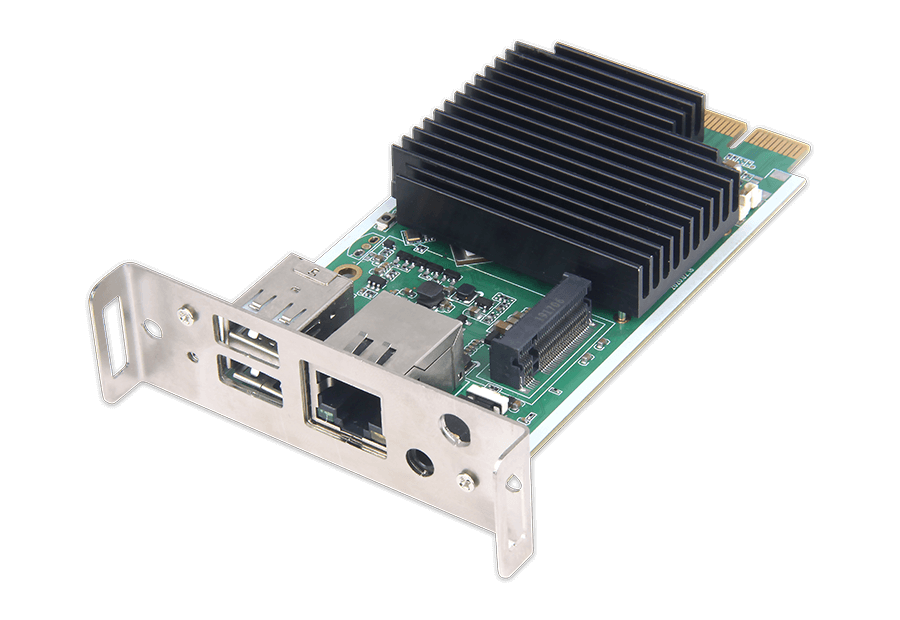

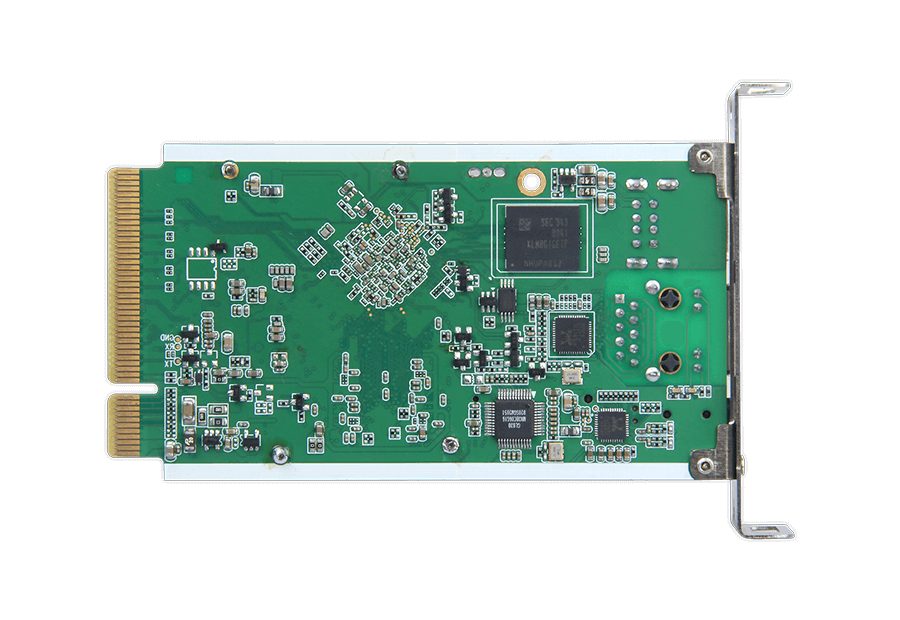

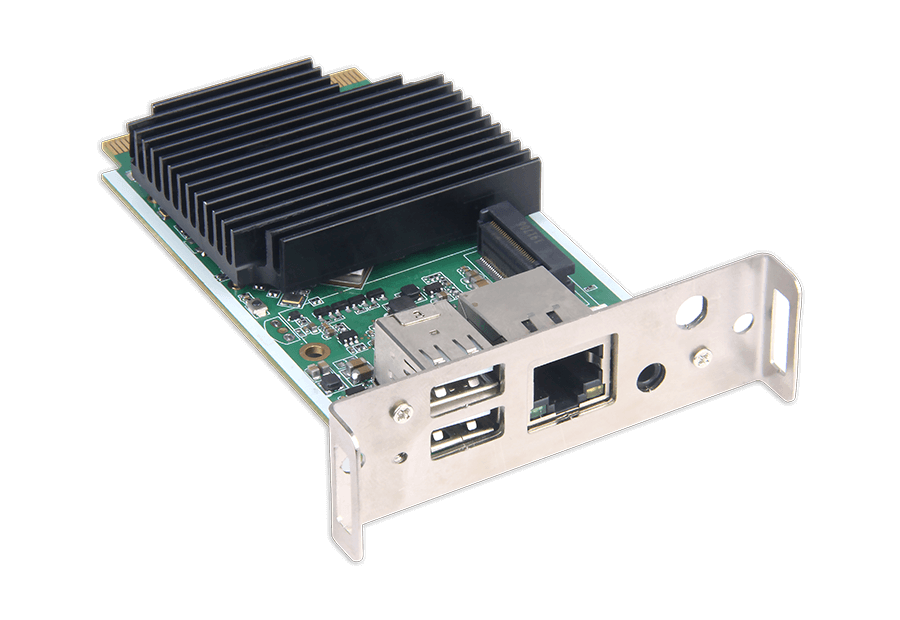

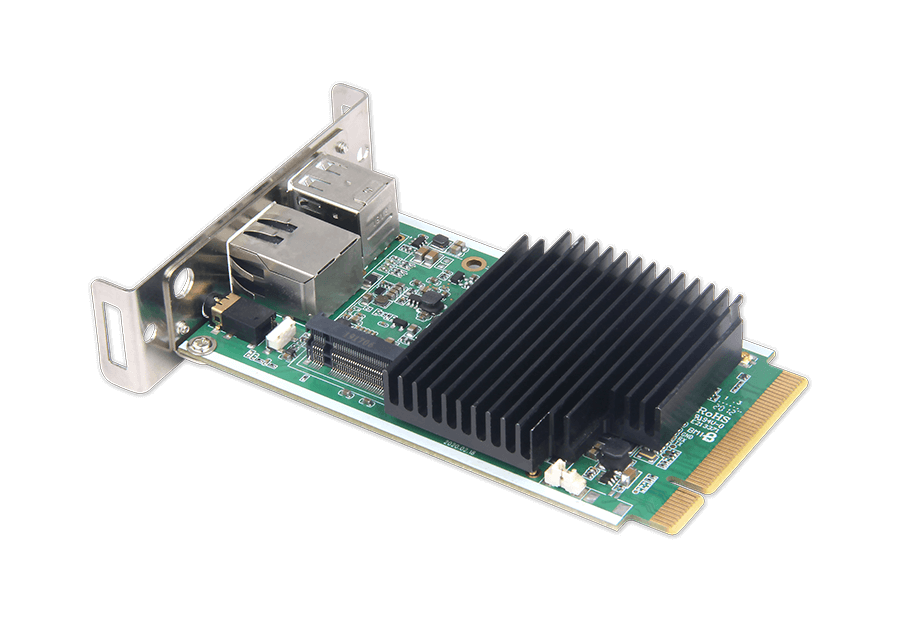

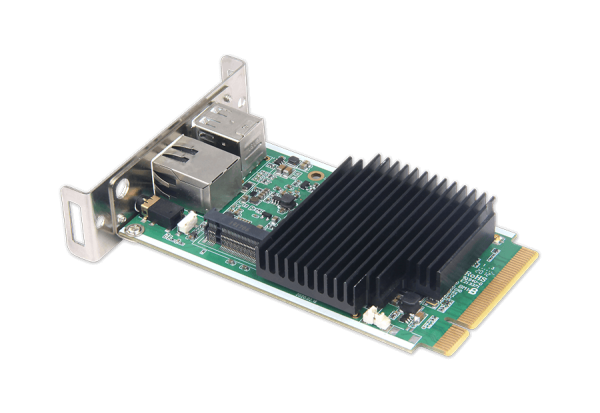

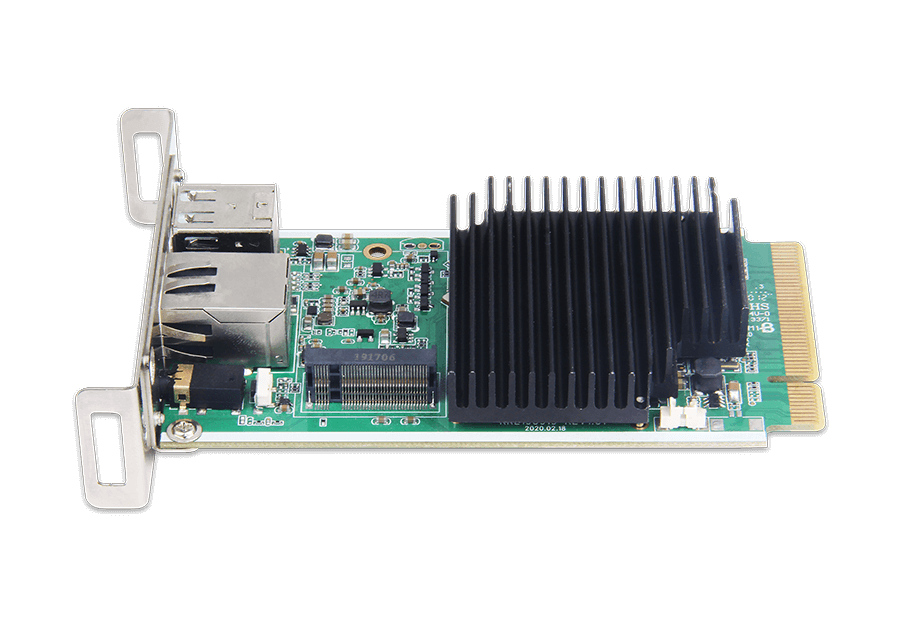

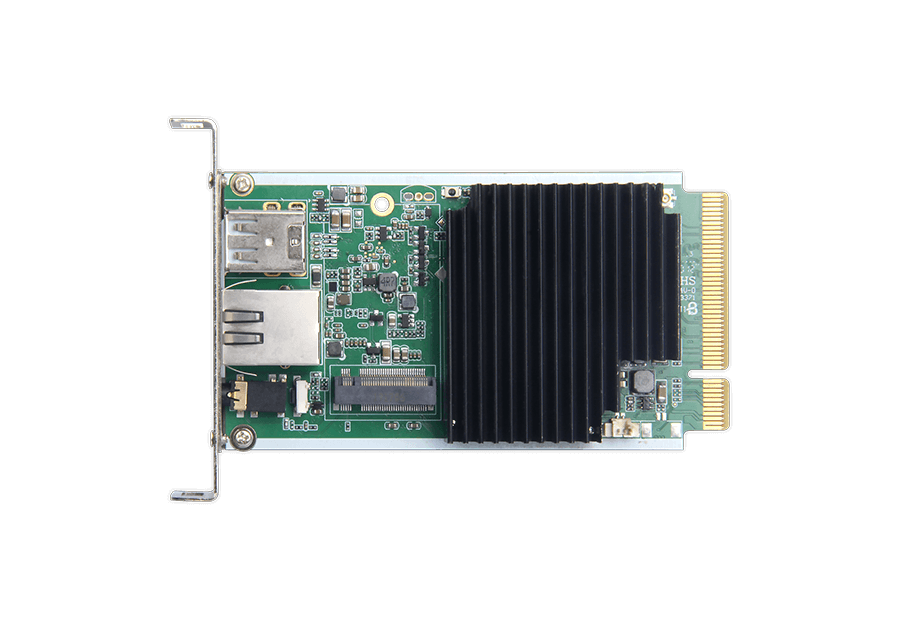

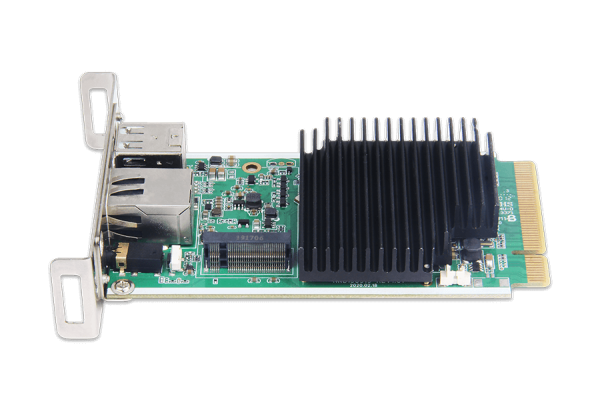

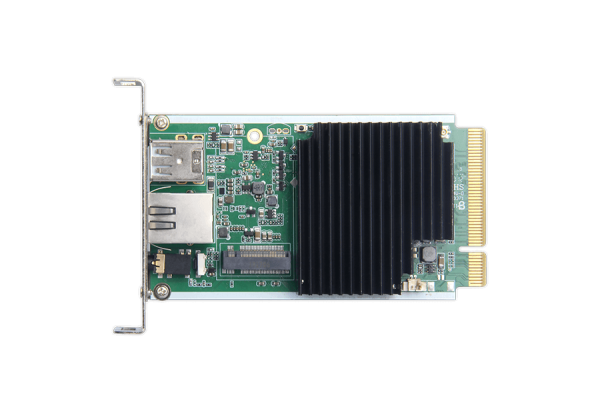

SDM3399
Geniatech Developer board SDM3399 is based on Rockchip RK3399, Quad core ARM Cortex A72/A53 @1.8GHz CPU,it features Android 7.1 OS with 2GB LPDDR4,
8GB eMMc flash,support WiFi & LAN, USB, SD/TF card external storage, support program playback Plastic frame,
support wall mount and desktop stand Designed for retail, interactive communication.
