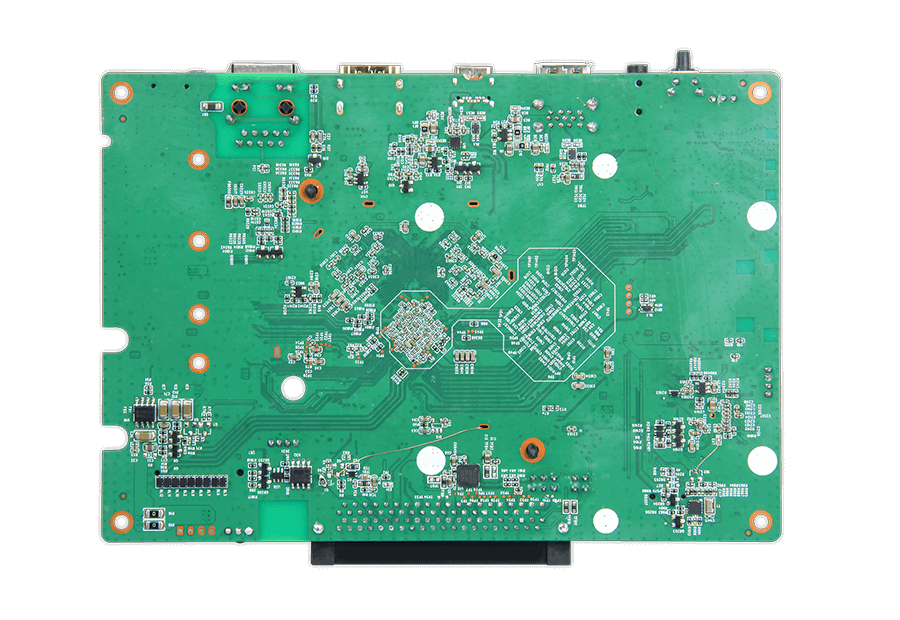

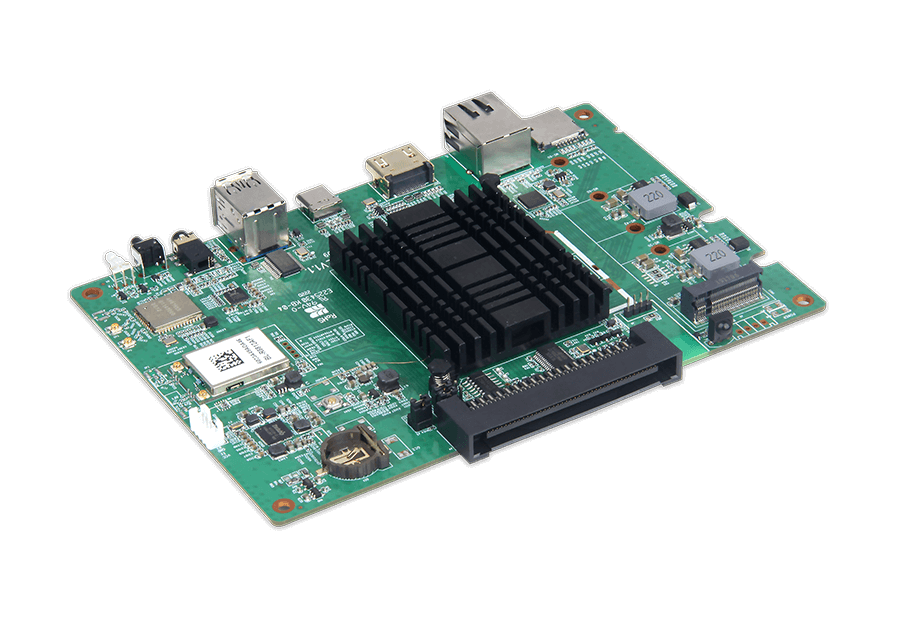

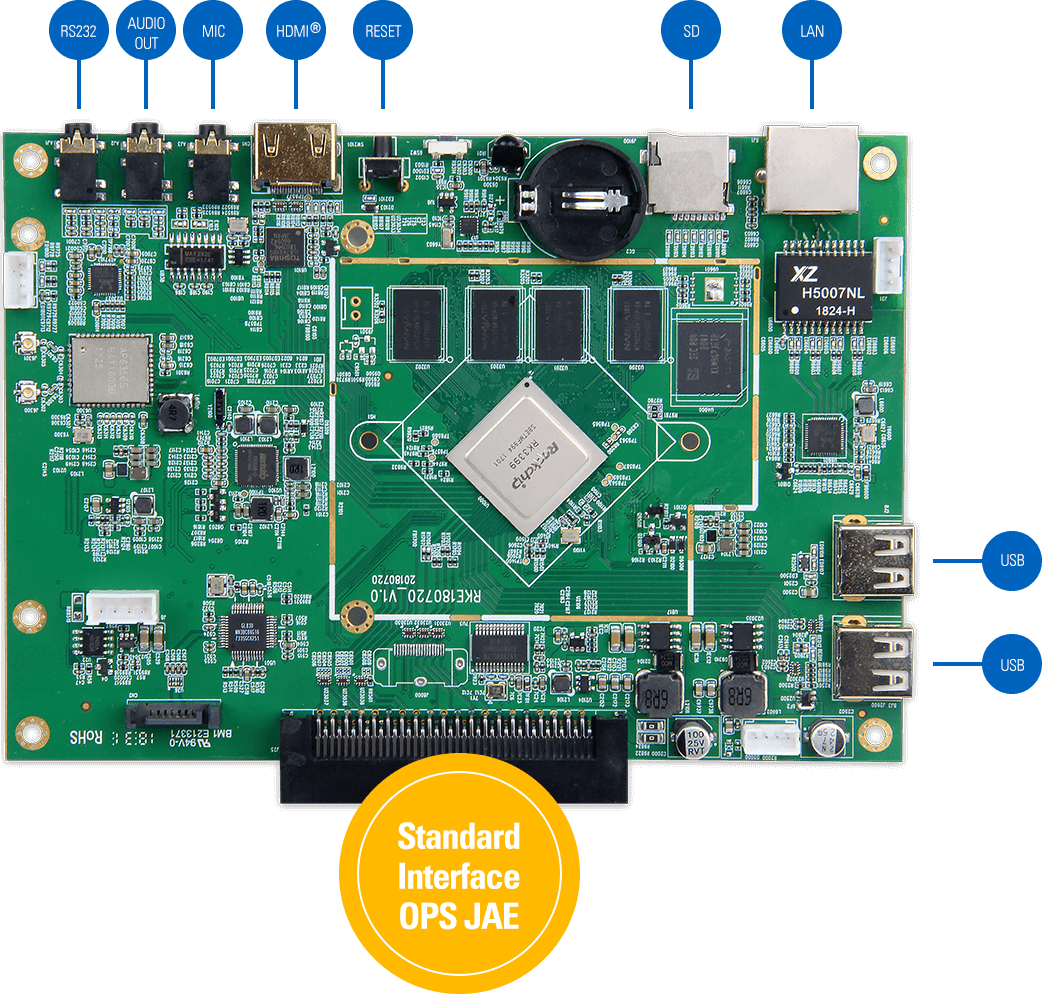

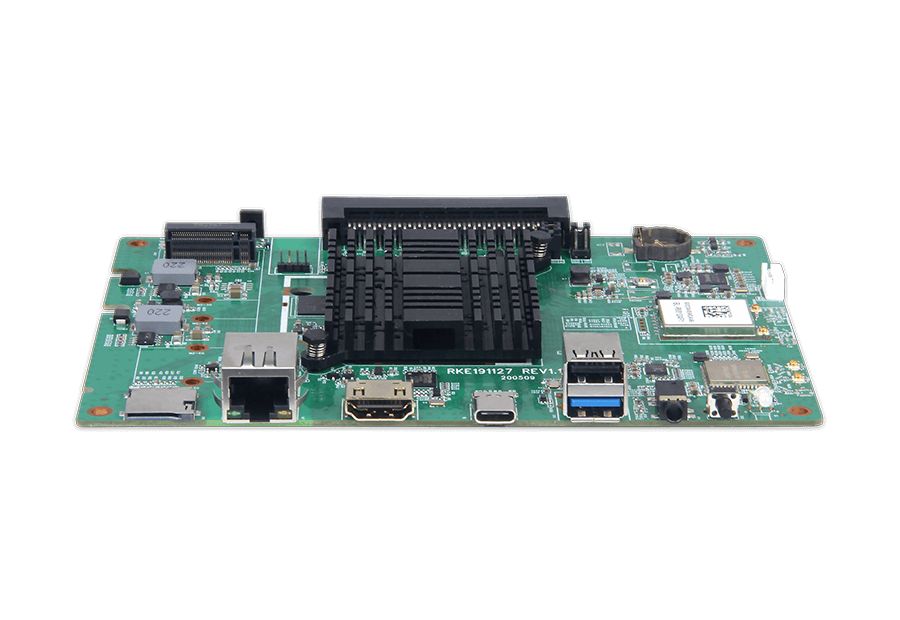

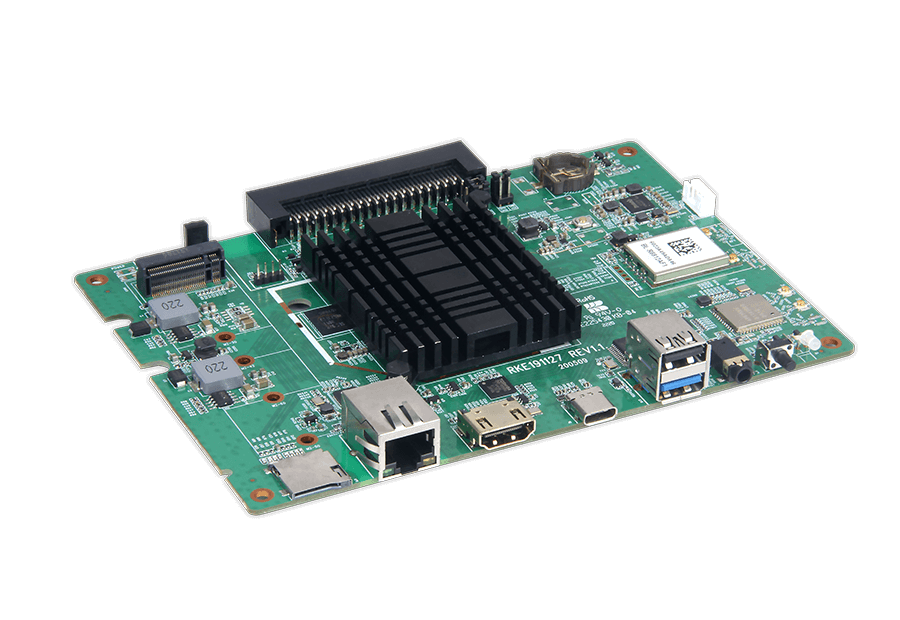

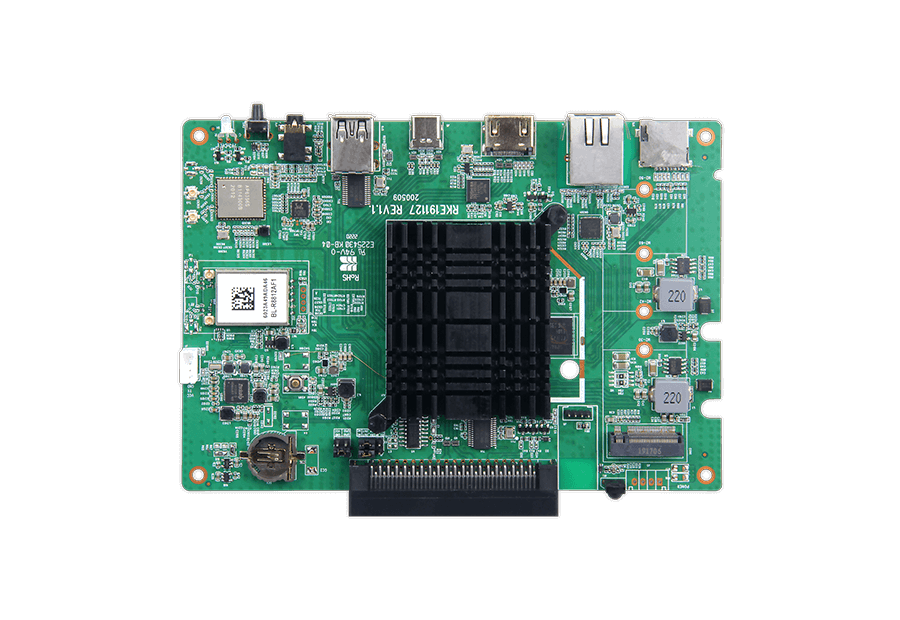

Geniatech OPS3399 is an OPS (Open Pluggable Specification) developer board powered by the Rockchip RK3399 processor with a Quad-Core Cortex-A72/A53 @1.8GHz CPU. Running Android 10, it integrates seamlessly into displays for embedded computing applications. With 2GB LPDDR4, 8GB eMMC storage, Wi-Fi, LAN, USB, and SD/TF expansion, it supports program playback and flexible installation via wall mount or desktop stand—ideal for retail and interactive communication solutions.
| CPU | Dual-core ARM A72 processor@ 1.8GHz And Quad Core A53 @ 1.4GHz |
| GPU | ARM Mali-T860MP4 GPU 800MHz |
| DDR | 4GB（2G Optional） |
| EMMC FLASH | 32GB（8G/16G/64G Optional） |
| OS | Android 10 |
| Ethernet | RJ45, 10/100/1000M |
| WiFi 1 | IEEE 802.11a/b/g/n/ac , 2.4G + BT + 5.8G @2T2R |
| WiFi 2 | IEEE 802.11a/b/g/n/ac , 2.4G + 5.8G @2T2R |
| Micro SD | Micro SD *1(max. 256GB) |
| 80 Pin Connector(Intel) | JAE TX25A 80-pin connector |
| USB | USB 3.0*1,USB 2.0*1 |
| Power IN | Power IN headpin |
| M.2 | M.2*1 |
| Type-C | USB3.0 &DP output |
| 3.5mm jack | Headphone(audio out/mic in) |
| DB9 port | RS-232 |
| Reset | Reset*1 |
| LED | Power LED*1 |
| IR receiver | Infrared remote control |
| Dimensions | 180 mm * 119 mm * 30 mm |
| Adapter | DC12~19V |
| Accessory | WiFi antenna |
