XPI-3566-CM4

SBC Module with RK3566

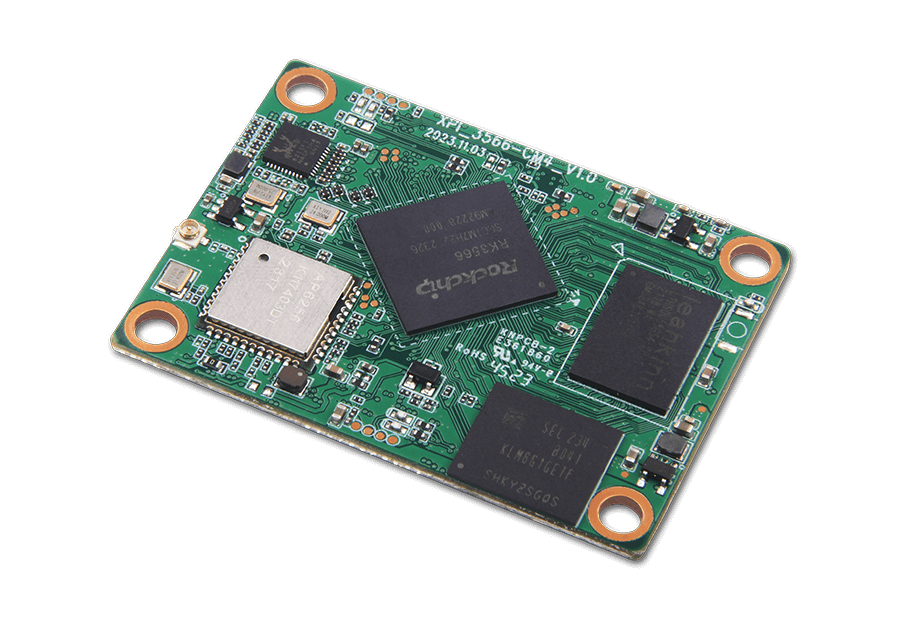

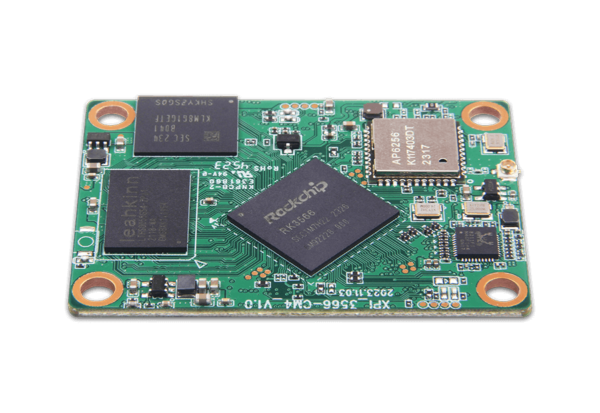

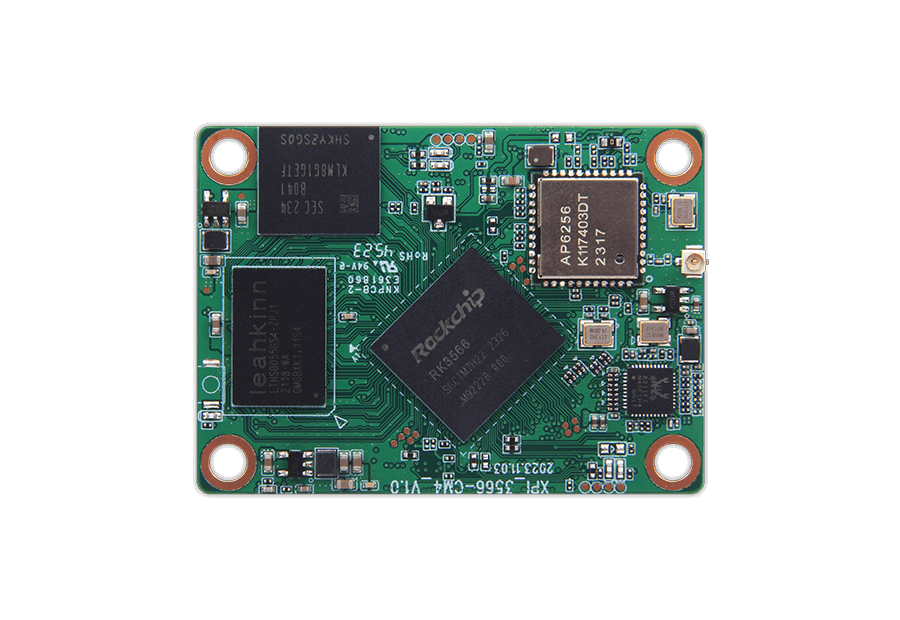

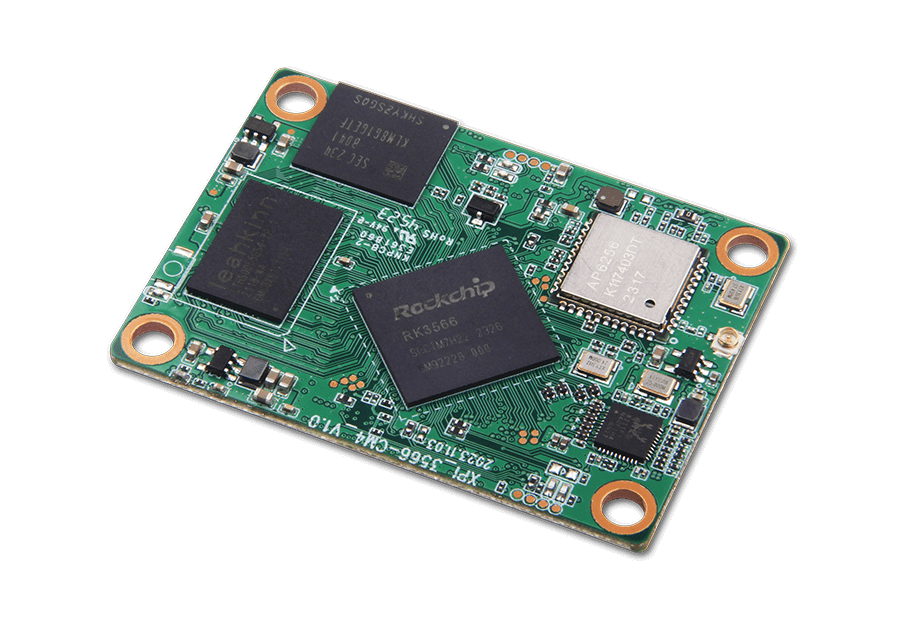

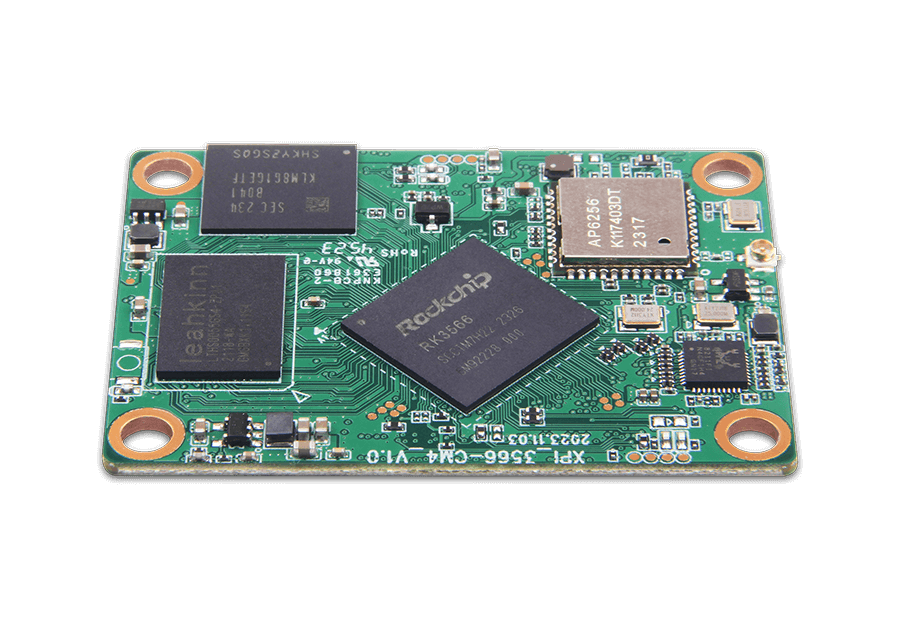

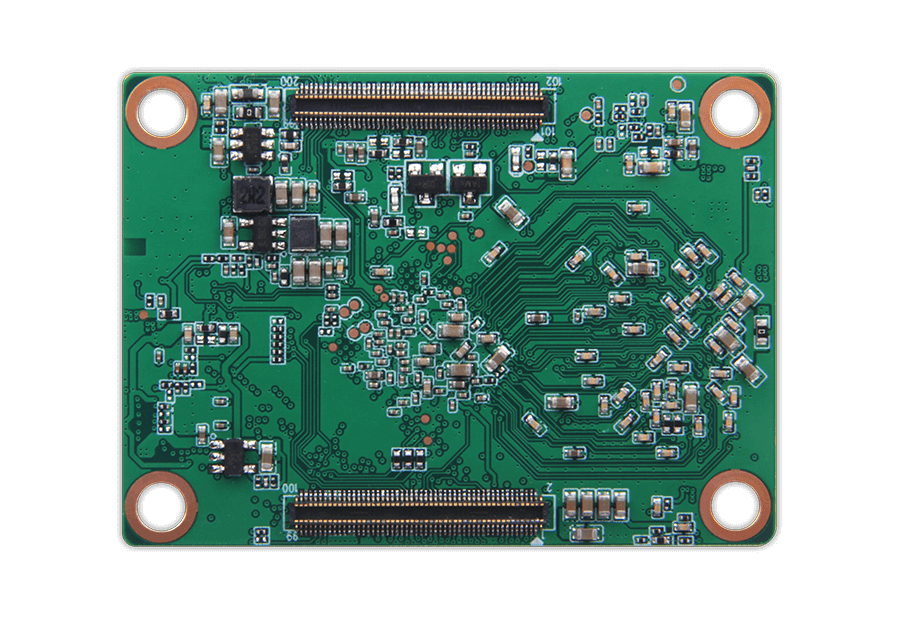

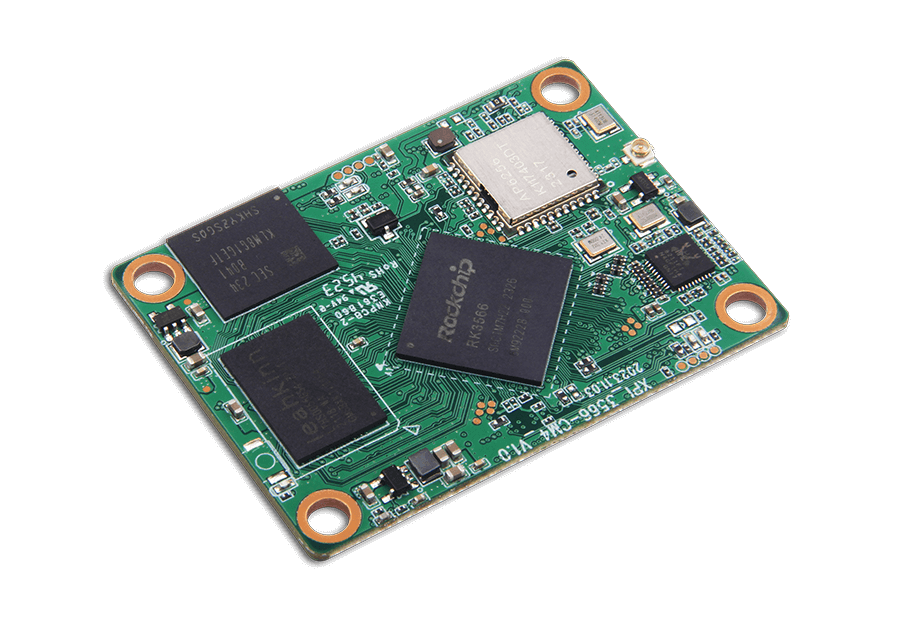

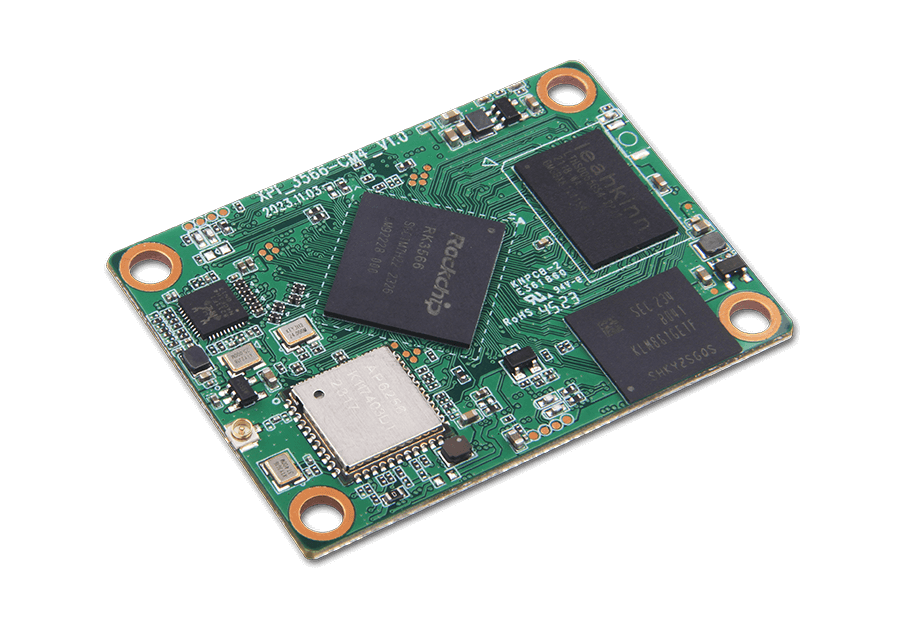

Geniatech XPI-3566-CM4 is a compact computing module board with fully compatible with the Raspberry Pi CM4 module, and powered by the Rockchip RK3566 platform.

  • Compact Design: Dimensions of 55mm x 40mm x 4.7mm
  • AI Tasks: Optionally scalable up to 26 TOPS of AI computing power
  • Powerful Processor: Rockchip RK3566 with Quad-core Cortex-A55
  • Memory Options: 1GB LPDDR RAM (up to 8GB), 8GB eMMC flash (up to 32GB)
  • Versatile Display: Supports HDMI®4Kp60 and MIPI DSI/CSI interfaces
  • Flexible Connectivity: Gigabit Ethernet, Wi-Fi, Bluetooth 5.0, USB 2.0/3.0, PCIe, GPIO
  • Diverse OS Compatibility: Debian 11/Raspberry Pi OS
Contact Sales
Chipset Rockchip RK3566
OS Debian 11/Rasberry Pi OS
CPU Rockchip RK3566, Quad-core ARM Cortex-A55 to 1.8GHz
GPU OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1.
Embedded high-performance 2D acceleration hardware
NPU Supports INT8/INT16/FP16/BFP16 MAC hybrid operation.
Supports TensorFlow/MXNet/PyTorch/Caffe network models converted.
VPU Supports 4K 60fps H.265/H.264/VP9 video decoding
Supports 1080P 60fps H.265/H.264 video encoding
LPDDR4 1G (up to 8G optional)
EMMC FLASH 8GB (up to 32GB optional)
NETWORK RJ45, Onboard Gigabit Ethernet PHY supporting IEEE1588
WIFI Module 2.4G/5.0G
BT5.0(integrated in the WiFi module)
Interface 1*HDMI®out
1* USB 2.0 + 1* USB 3.0
1*MIPI-CSI
2*MIPI DSI
1*PCIe
1*Standard 28-pin GPIO header Can be expanded to UART, SPI, I2C, PWM, SDIO, DPI, PCM, GPCLK function
Adapter DC 5V / 2A
Dimensions 55*40*4.7mm

XPI-3566-CM4 Specification
Download
XPI-3566-CM4 Schematic
Download
XPI-3566-CM4 BlockDiagram
Download
XPI-3566-CM4 Upgrade Guide
Download

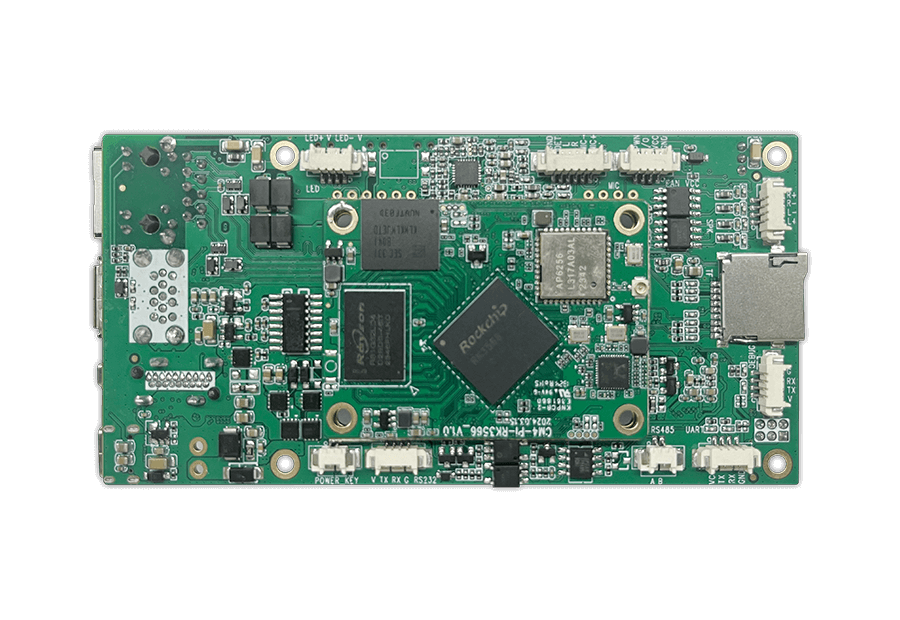

CBD-CM4-PI-RK3566

  • Gigabit Ethernet with IEEE1588 support
  • Dual HDMI (4K@60Hz) outputs
  • MIPI DSI and dual-port LVDS display interfaces
  • MIPI-CSI camera interface
  • USB 3.0 and USB 2.0 OTG ports
  • RS232 and RS485 industrial interfaces
  • M.2 expansion slot
  • GPIO and power pins
  • Power over Ethernet (12V POE)
  • Dual DC power input (5V/12V)
  • Compact 120×60mm size
