RK3568J OSM-L System-on-module

SOM-3568J-OSM

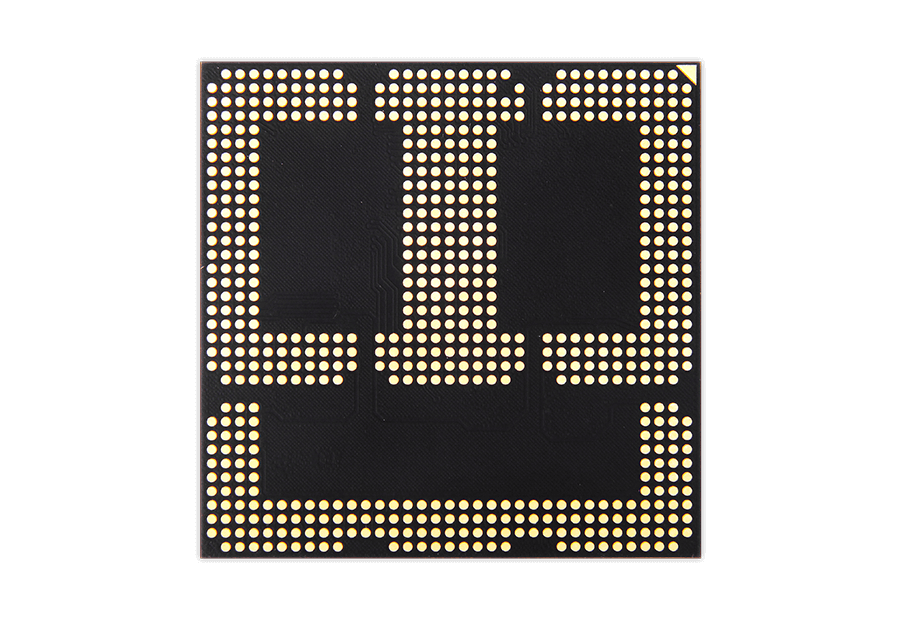

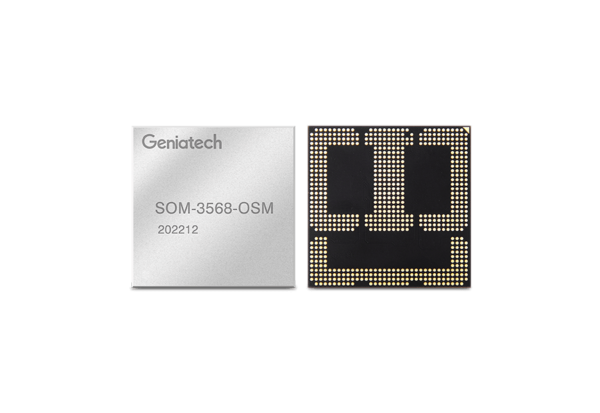

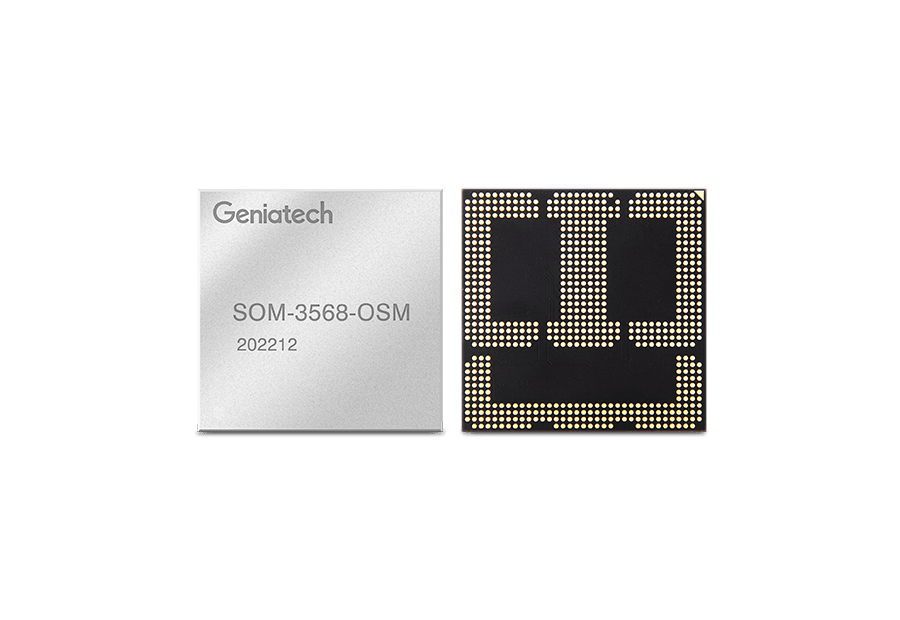

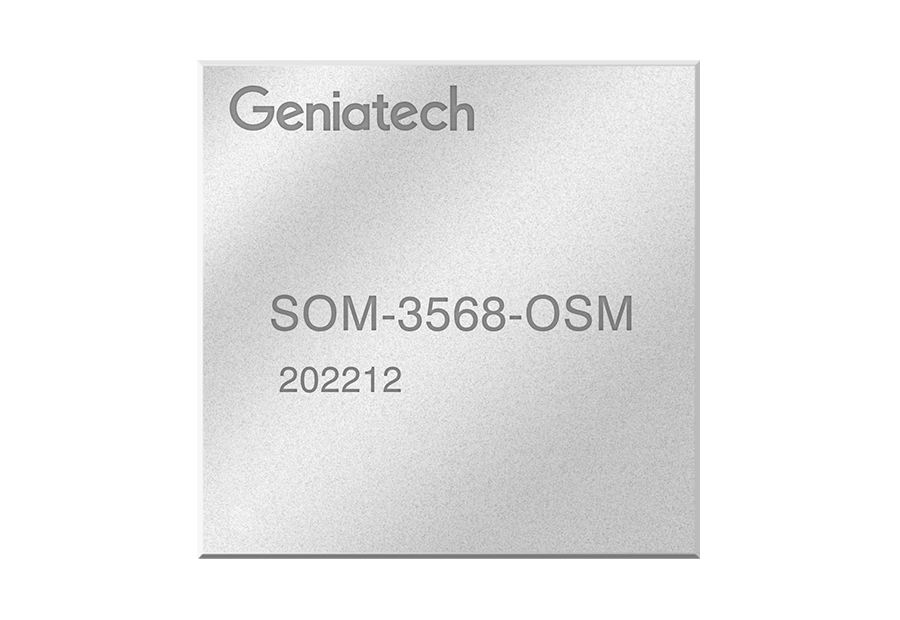

The SOM-3568J-OSM is a compact core board based on Rockchip’s RK3568J processor, designed for personal mobile internet devices and AIoT equipment.

Compact design (45mm x 45mm, Size-L) compliant with OSM V1.1 standard

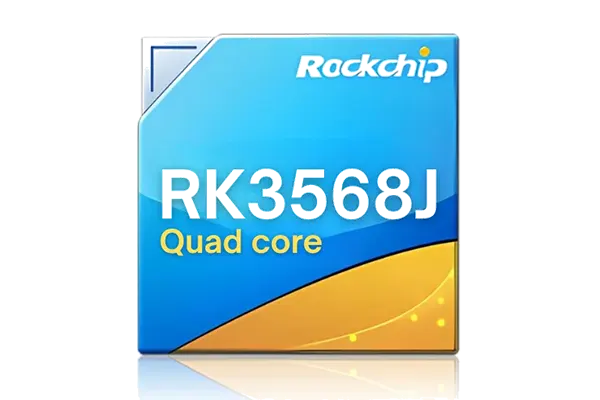

Powered by Rockchip RK3568J with Quad-core Cortex-A55 processor
Supports up to 8GB RAM and 128GB eMMC flash storage
Features MIPI-DSI/eDP interface, 4K 60fps video decoding and 1080P video encoding
Provides rich interfaces, including I2C, UART, SPI, SDIO3.0, USB2.0, PWM, RMII and I2S
Supports multiple operating systems, including Android and Linux
Stable operation at -40 °C ~ 85°C working temperature for 7X24 hours

Standardized OSM Form-Factor

Compact OSM-L footprint – 45 x 45 mm
Solder-down LGA interface, optimized for automated SMT and reflow assembly
Industrial temperature range of -40°C to +85°C
Vendor-neutral standard enabling long-term design reuse

Feature Highlights

Quad-Core ARM Cortex-A55 with Mali-G52-2EE GPU
Integrated NPU delivering up to 1 TOPS for edge AI acceleration
Dual Gigabit Ethernet (RJ45) and WiFi/BT expansion via SDIO
Multi-format Display support: HDMI 2.0 (4K@60Hz), eDP, and MIPI-DSI
Single 4-lane MIPI CSI camera input
Rich I/O: USB, multiple I2S/TDM, CAN, UART, SPI, PWM

Multi-OS Support

Android and Linux (Yocto/Debian) support
Complete Board Support Package with long-term maintenance
Support for OTA (Over-the-Air) updates
Extensive driver and peripheral integration support

From SOM to Complete Systems

Ready-to-use development kits for rapid prototyping
Custom carrier boards for system integration and validation
Turnkey box-level integration for deployment-ready systems
Driver adaptation services for custom LCD panels and peripherals

End-to-End Engineering Services

Full design package: schematics, BOM, PCB layout, reference designs
Direct technical support from Geniatech engineering team
Flexible ordering from prototype to mass production quantities

CPU	Rockchip RK3568J, Quad-core ARM Cortex-A55
GPU	Mali-G52-2EE GPU
NPU	1TOPS
OS	Android, Linux
RAM	2GB（1GB to 8GB optional）
Storage	16GB eMMC (up to 128GB Optional)
Ethernet	2 x RJ45, 1000 Mbps Gigabit Ethernet
WIFI	Extend WiFi&Bluetooth via SDIO3.0
Display	Support HDMI/eDP/MIPI-DSI interface, Resolution up to 4k@60Hz
Audio	for audio output 2 x 8ch I²S/TDM, 1×8ch PDM, 2×2ch I²S/PCM,1x8ch SPDIF
Interface	I2C, UART, SPI, SDIO3.0, USB3.0,USB2.0, PWM,CAN, RMII, I2S（Support 8-way digital microphone array input）
Operation temperature	-40 °C ~ 85°C
Power	DC 5V / 2A
Size	45 mm *45 mm

SOM-3568J-OSM Specification

Download

SOM-3568-OSM Schematic

Download

Carrier Board

DB3568V3 Specification

Download

DB3568V3 HW User Guide

Download

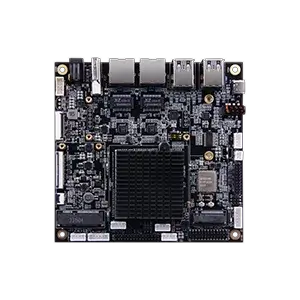

DB3568V3 Evaluation Board for Rockchip RK3568J SOM

DB3568V3 evaluation board is designed to unlock the complete connectivity of the RK3568J System-on-Module (SOM). It provides extensive industrial interfaces and expansion capabilities, enabling rapid deployment of robust AIoT and industrial devices for demanding environments.

OSM V1.1 standard, 45×45mm SOM & 125×120mm carrier board
High-speed I/O: Dual GbE, USB 3.0, SATA
Expansion Buses: PCIe, SDIO 3.0
Industrial Interfaces: Multiple UART, SPI, I2C, ADC
Dual Display Outputs: LVDS & HDMI
Onboard Audio Codec
Wide Voltage Input & Robust Power
Extended Temperature: -40°C to 85°C
Hardware Watchdog & Security
Long-term Supply Guarantee
