RK3588 Edge Computer with Quad-Display 8K Support

MPD3588

RK3588 Edge Computer with Quad-Display 8K Support

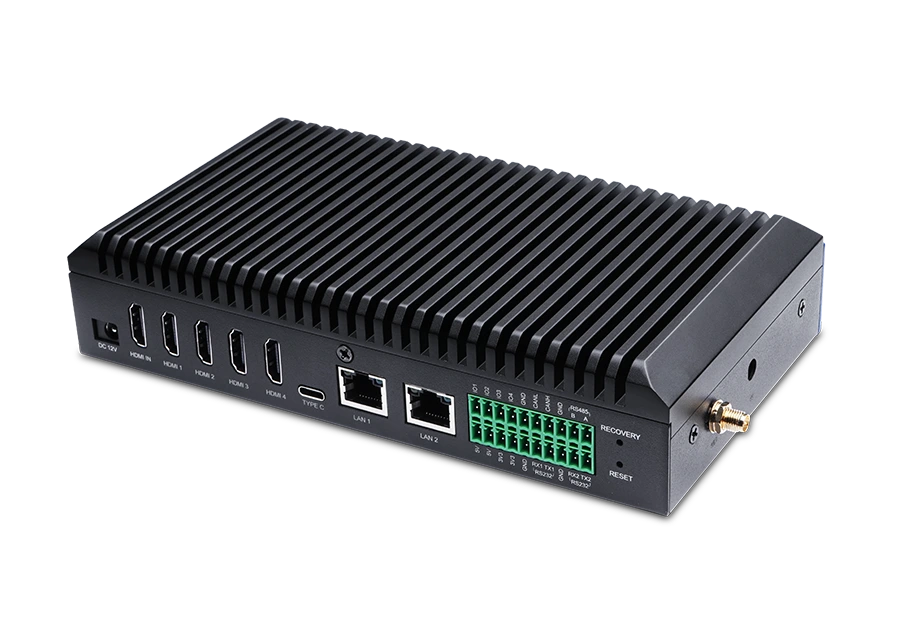

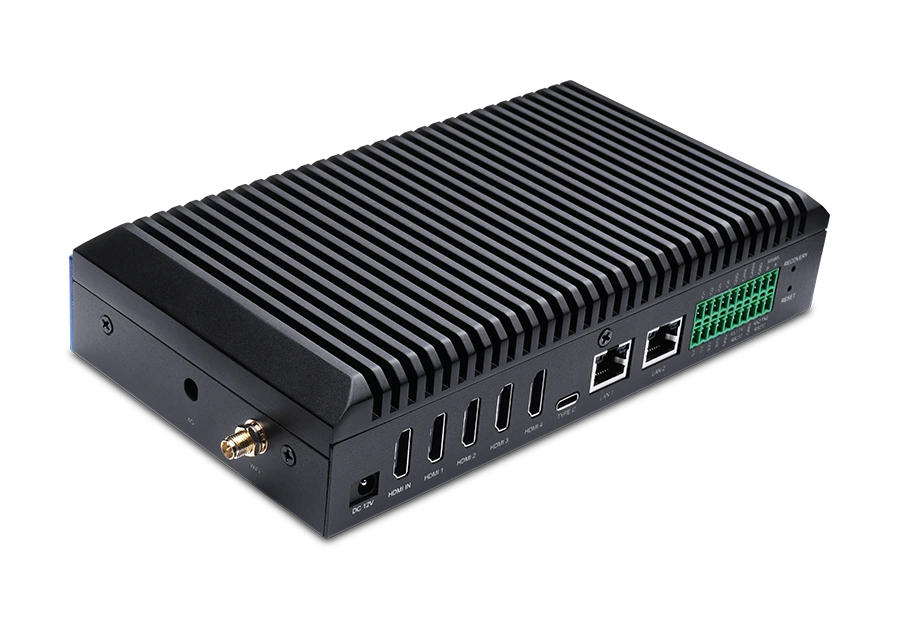

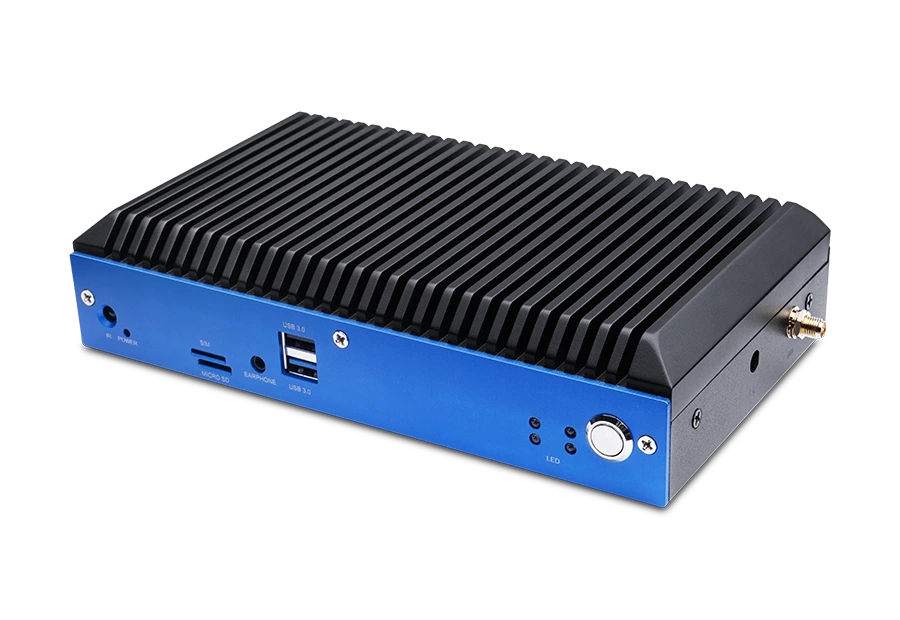

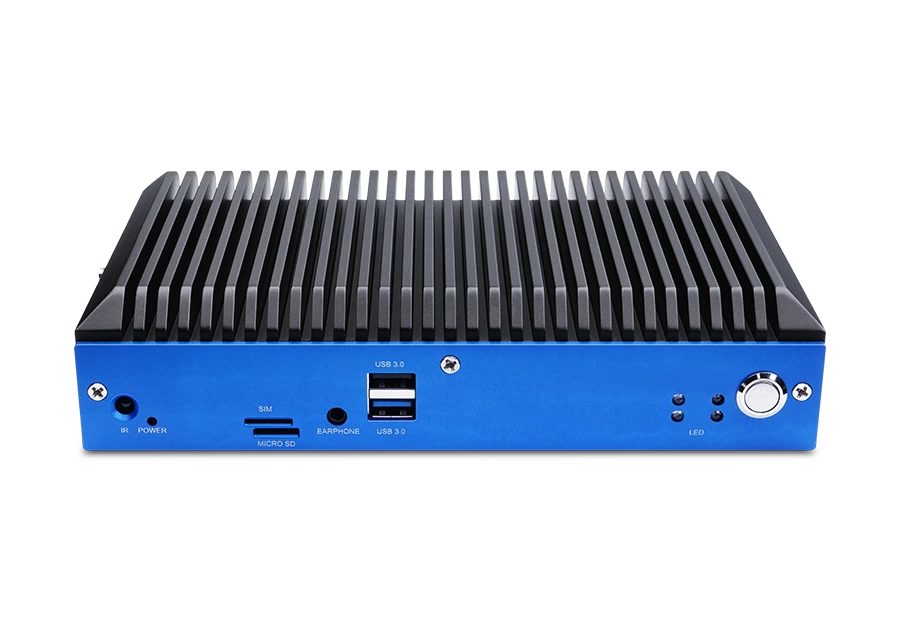

Geniatech MPD3588 is a high-performance edge computer powered by Rockchip RK3588. It features an octa-core CPU, Mali-G610 MP4 GPU, and built-in 6TOPS AI NPU. With 4× HDMI outputs + 1× HDMI input, it delivers 8K video decoding/encoding and flexible multi-screen solutions. Rich I/O, multiple network options, and 24/7 reliability make it perfect for digital signage, multimedia advertising, and industrial applications.

RK3588 octa-core CPU + Mali-G610 MP4 GPU + 6TOPS AI NPU
8K video decoding and real-time H.264/H.265 encoding
Multi-screen capable: 4× HDMI out + 1× HDMI in
Supports up to 32GB LPDDR & 512GB eMMC
Rich I/O & expansion: USB 3.0, Type-C, CAN, RS232/485, GPIO, M.2, I2C, UART
Dual Gigabit Ethernet (PoE optional) + Wi-Fi 6 + Bluetooth 5.2
Android 14 with watchdog & RTC for 24/7 stability

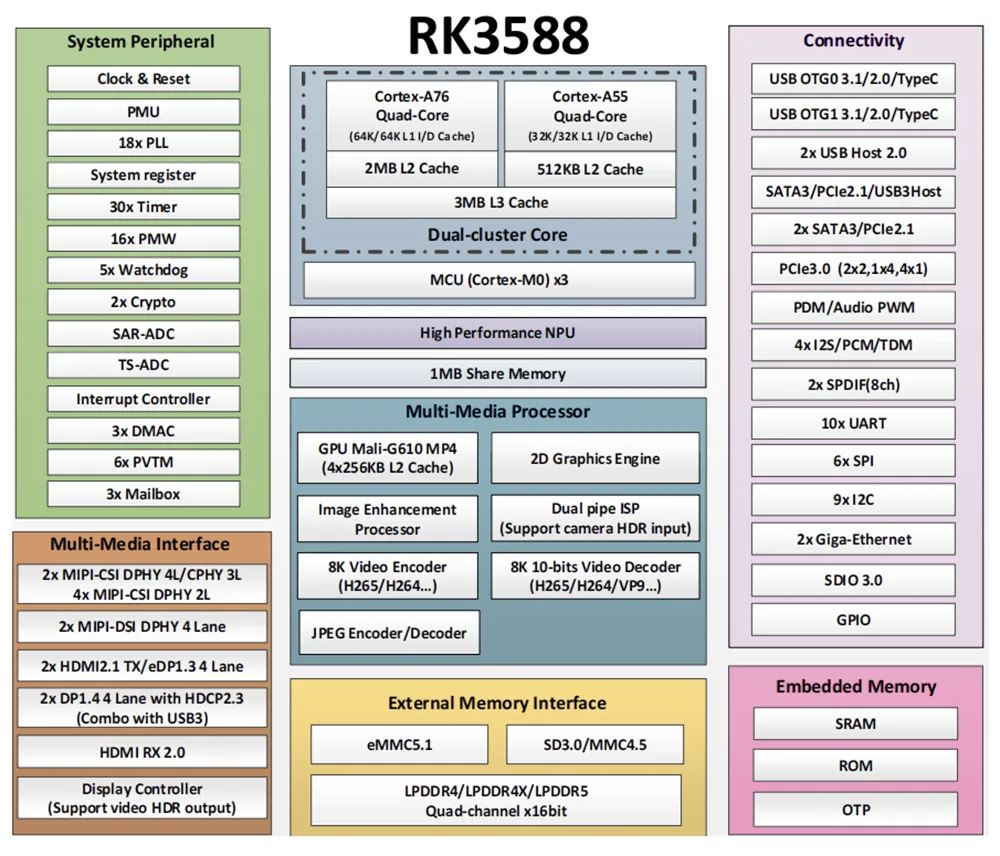

Processor	Rockchip RK3588
CPU / GPU	Quad Cortex-A76 + Quad Cortex-A55 / Mali-G610 MP4
AI	Built-in NPU, up to 6 TOPS
Memory	4GB LPDDR4 (Optional 8GB / 16GB / 32GB)
Storage	32GB eMMC (Optional 64GB / 128GB / 256GB)
Display	4× HDMI OUT + 1× HDMI IN
Video Decode	Up to 8K@60fps (H.265 / VP9 / AVS2), 4K@60fps (AV1)
Video Encode	H.264 / H.265 up to 8K@30fps
Network	2× Gigabit Ethernet (PoE optional), Wi-Fi 6, Bluetooth 5.2
I/O	USB 3.0, USB 2.0, Type-C, RS232/485, CAN, GPIO, IR IN
Expansion	M.2, TF Card, I2C, UART
OS	Android 14
Power	12V / 2A
Dimensions	203 × 114.7 × 50.1 mm
Operating Temp	0°C to +50°C
Reliability	Watchdog & RTC, 24/7 operation
