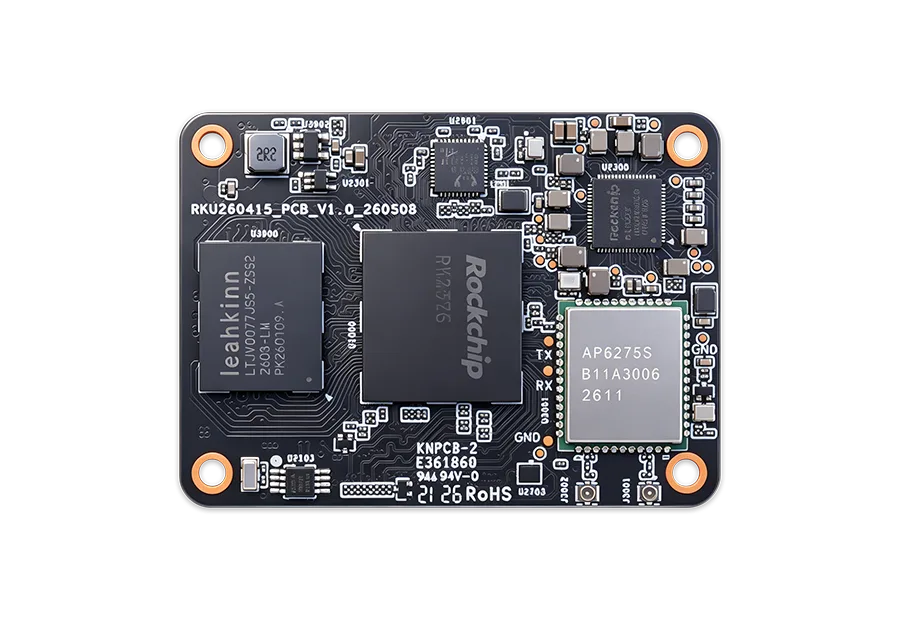

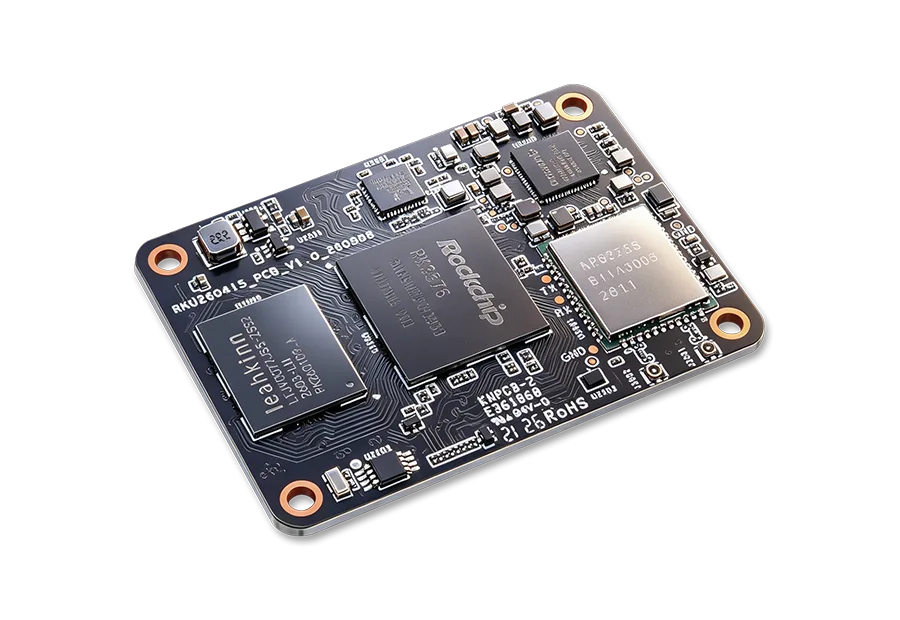

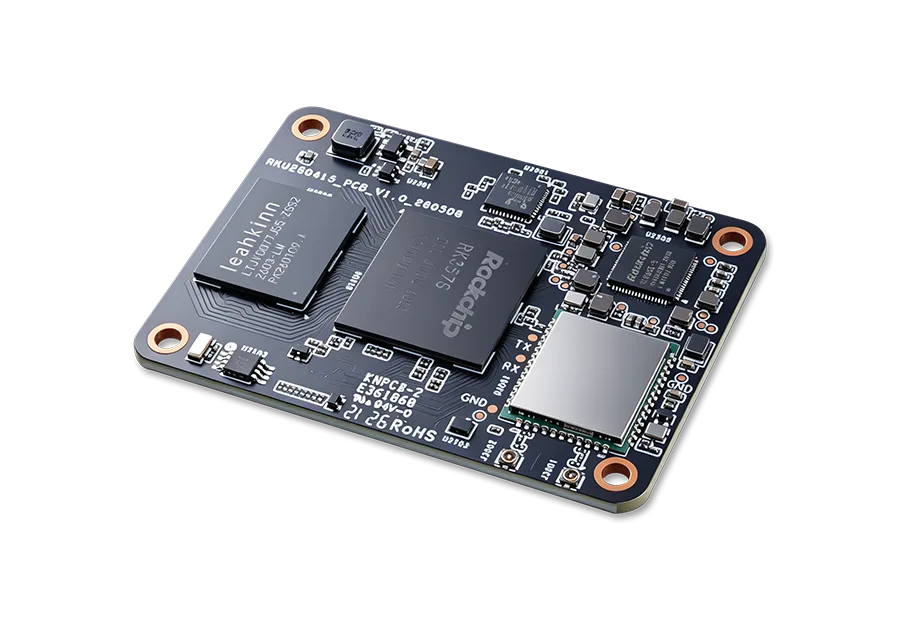

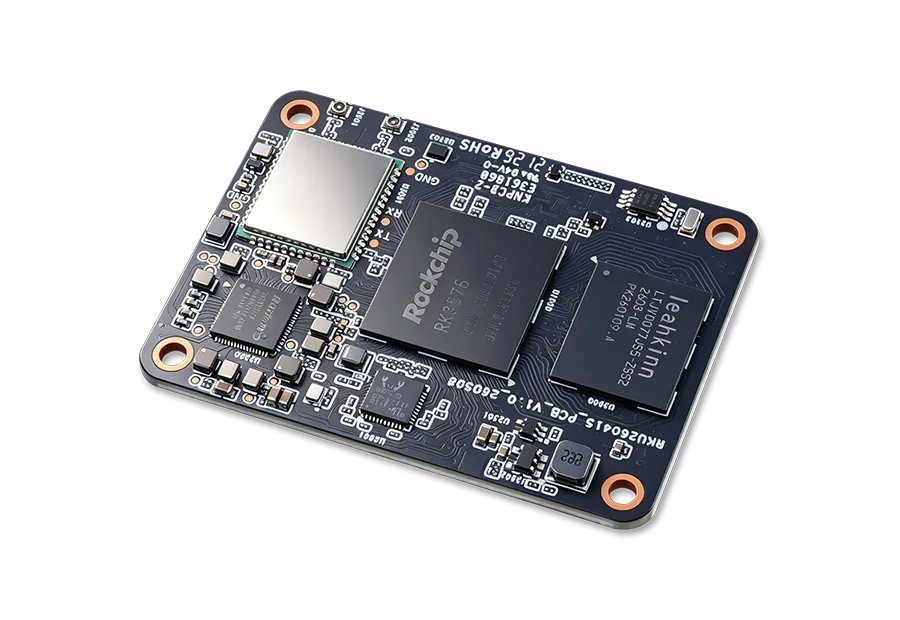

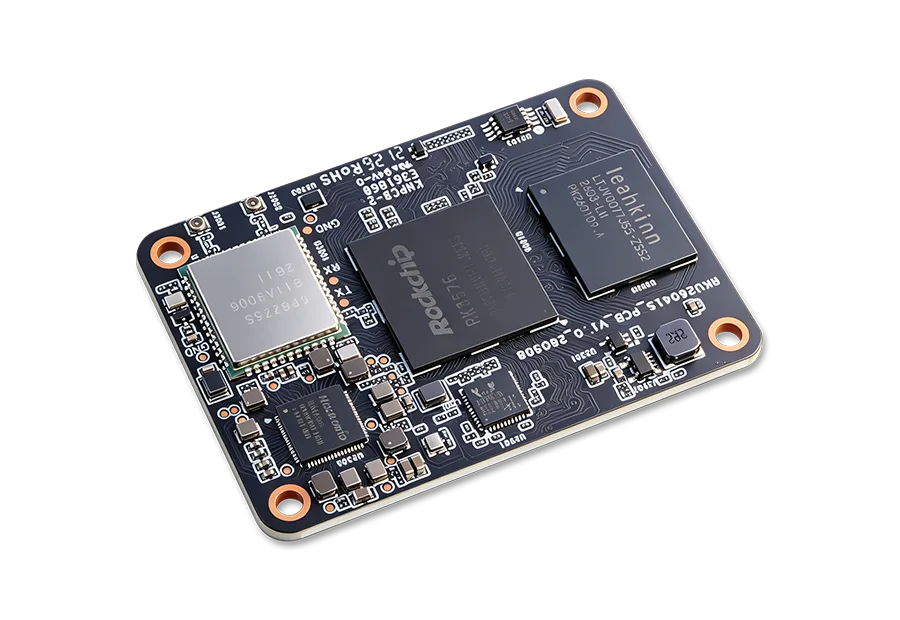

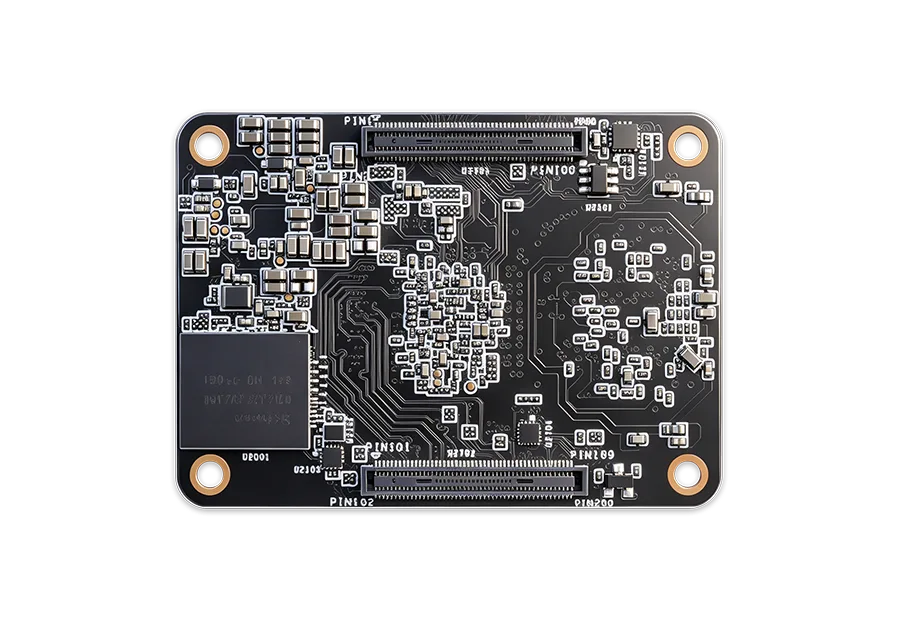

CM5-3576

RK3576 Industrial AI Compute Module

Geniatech CM5-3576 is a Rockchip RK3576-based Raspberry Pi-compatible compute module for industrial AI and embedded systems. It enables scalable edge computing and real-time applications with high-performance processing and deterministic responsiveness, designed for long-term embedded deployments with stable industrial operation.

  • Rockchip RK3576 with quad-core Cortex-A72 + Cortex-A53 real-time core
  • Up to 16GB RAM and 128GB eMMC for scalable performance
  • Raspberry Pi OS compatible for drop-in replacement
  • Rich I/O: HDMI, MIPI DSI/CSI, USB 3.0/2.0, GPIO, CAN, RS232/485
  • Industrial-grade design supporting -40°C to 85°C operation
  • Gigabit Ethernet with optional 2.4G/5.8G Wi-Fi & Bluetooth 5.0
  • 10+ year product lifecycle with one-stop hardware/software customization
Contact Sales
SoC Rockchip RK3576
CPU Quad-core ARM Cortex-A72 processor, equipped with ARM Cortex-A53 real-time core
RAM 4GB LPDDR4 (up to 8GB/16GB Optional)
ROM 32GB eMMC (up to 64GB/128GB Optional)
I/O 1×40PIN GPIO，1×HDMI，1×MIPI DSI，1×MIPI CSI，2×USB3.0，2×USB2.0，1×RJ45，1×TF，1×232，1×485，1×CAN，1×UART，1×DC(DC 5V/3A)
Network GigE，2.4G/5.8G Wi-Fi & Bluetooth5.0 (Optional)
OS Android 14，Debian 12
Operating temperature Commercial：0℃～60℃，Industrial：-40℃～85℃
Size 55×40mm
