SOM-3566-OSM

RK3566 OSM-L System-on-module

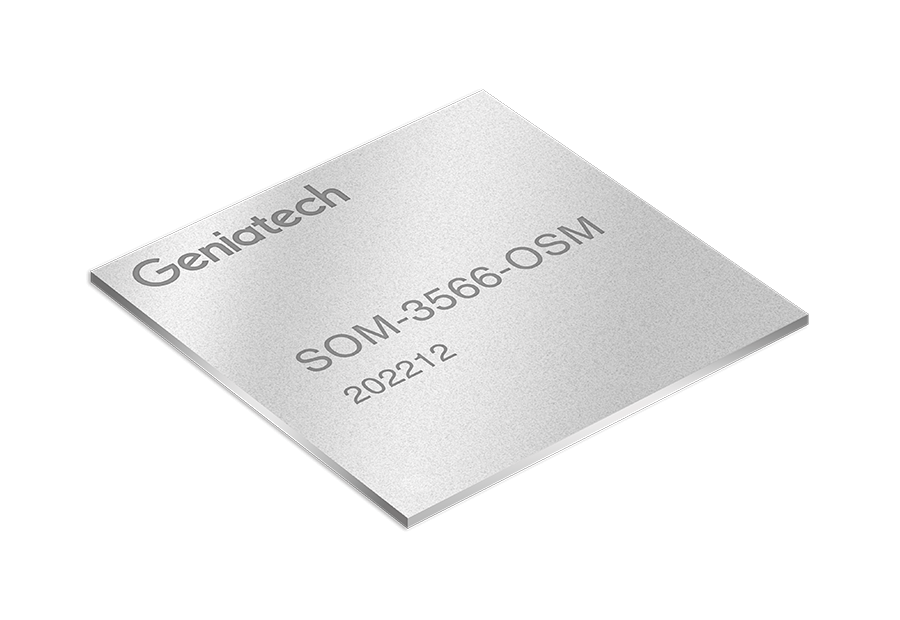

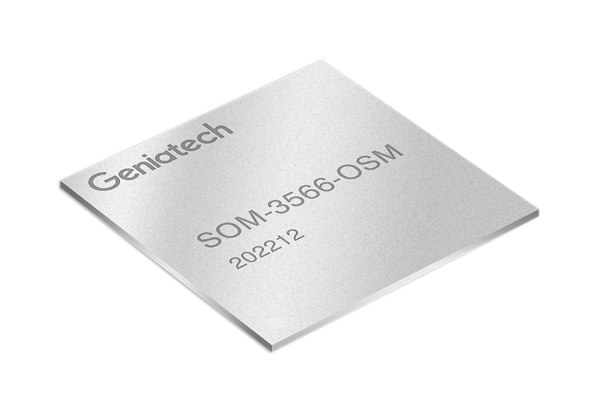

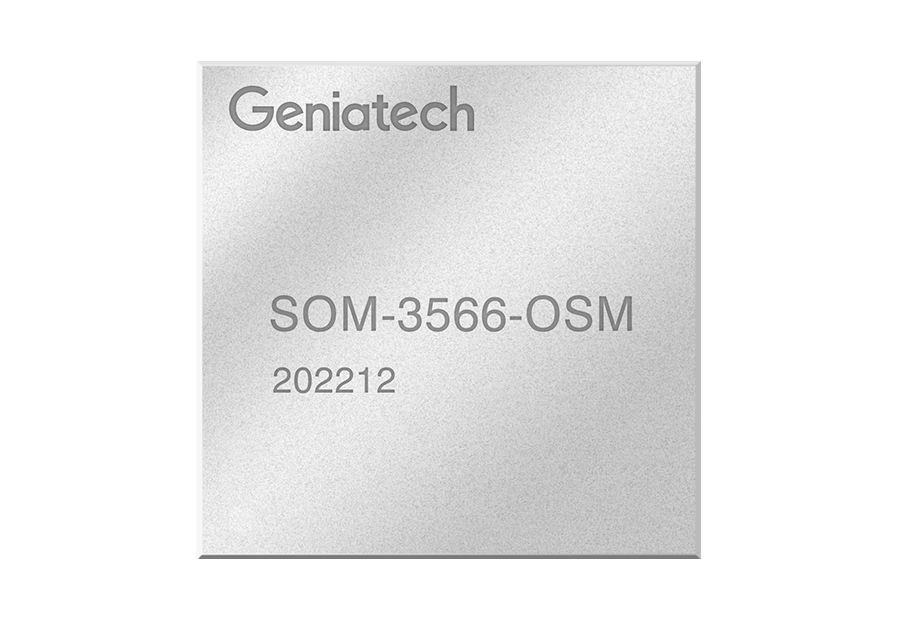

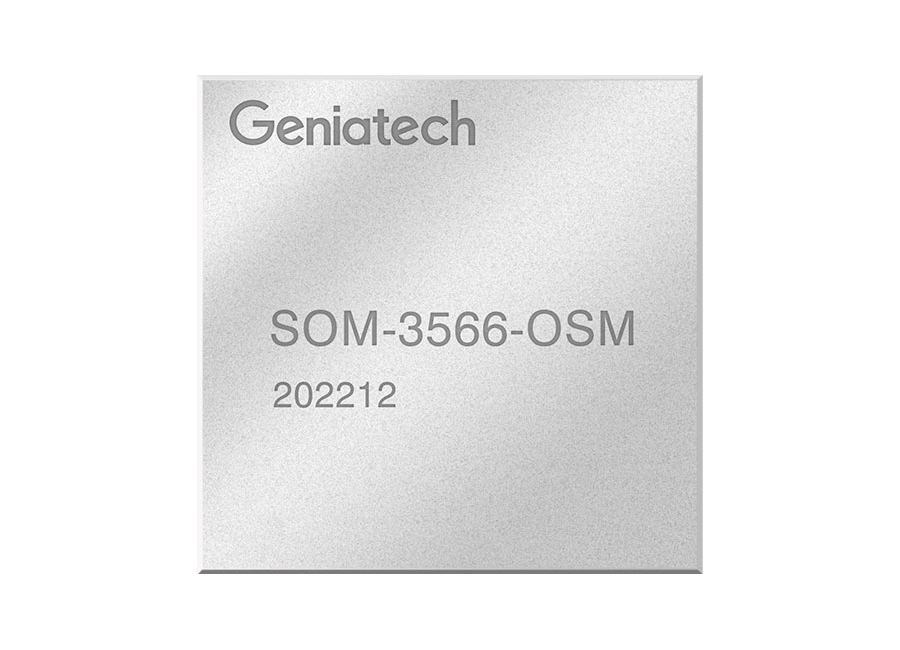

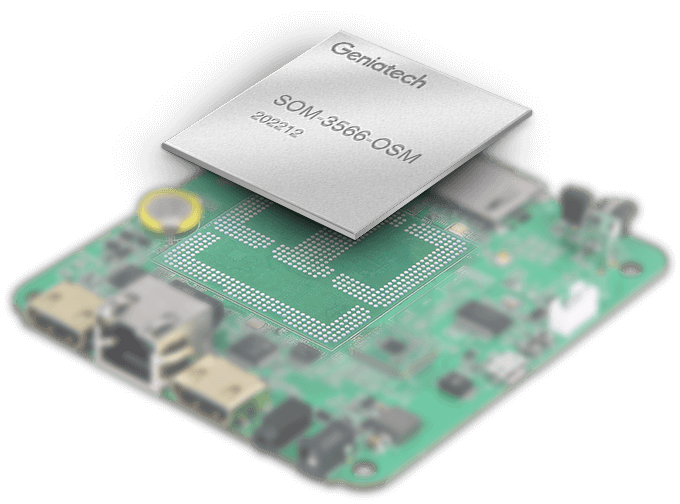

Geniatech SOM-3566-OSM is a versatile system-on-module developed according to the latest OSM (Open Standard Modules™) standard. Based on Rockchip’s power-efficient RK3566 processor, this compact module delivers balanced performance with quad-core processing, capable graphics, and integrated AI acceleration, making it ideal for smart NVR, IoT gateways, industrial controls, commercial displays, and various edge AIoT applications.

  • OSM-L standard footprint – 45 x 45 mm
  • Quad-core 64-bit Cortex-A55 @ up to 1.8GHz, ARM G52 2EE GPU
  • Integrated RKNN NPU AI accelerator, 1 TOPS@INT8
  • Up to 8GB LPDDR4 and 128GB eMMC 5.1
  • Multi-format display: HDMI, eDP, LVDS, MIPI-DSI & MIPI-CSI
  • Rich I/O: Gigabit Ethernet, USB 3.0, PCIe 2.1, multiple UART, I2C, SPI, PWM
Contact Sales
Buy Now
OSM standard

According to the latest OSM (Open Standard Modules™) standard released by SGeT (Standardization Group for Embedded Technology e.V)

Small Form Factor, Low Cost Embedded Computer Module

Adopted with Size-L type, 45*45mm

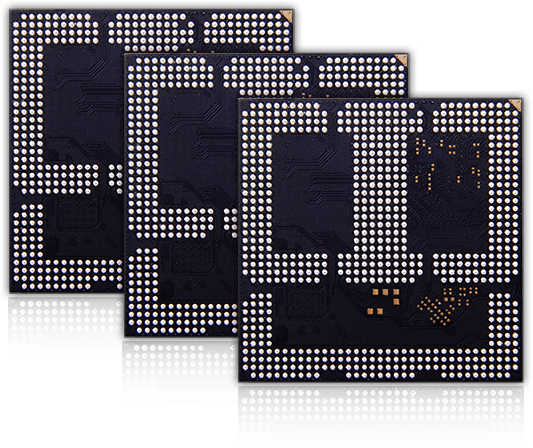

LGA Package

Solder PCBs directly without connectors

Open Source Design

Rich hardware and software interfaces

Modular Embedded Edge Computing

For the growing number of IoT applications, the standard helps combine the benefits of modular embedded computing with increasing cost, space and interface requirements.

High Reliability

With Rock-chip RK3566 processor, the board can support up to 8GB DDR4, 128GB eMMC or 512MB NAND flash memory

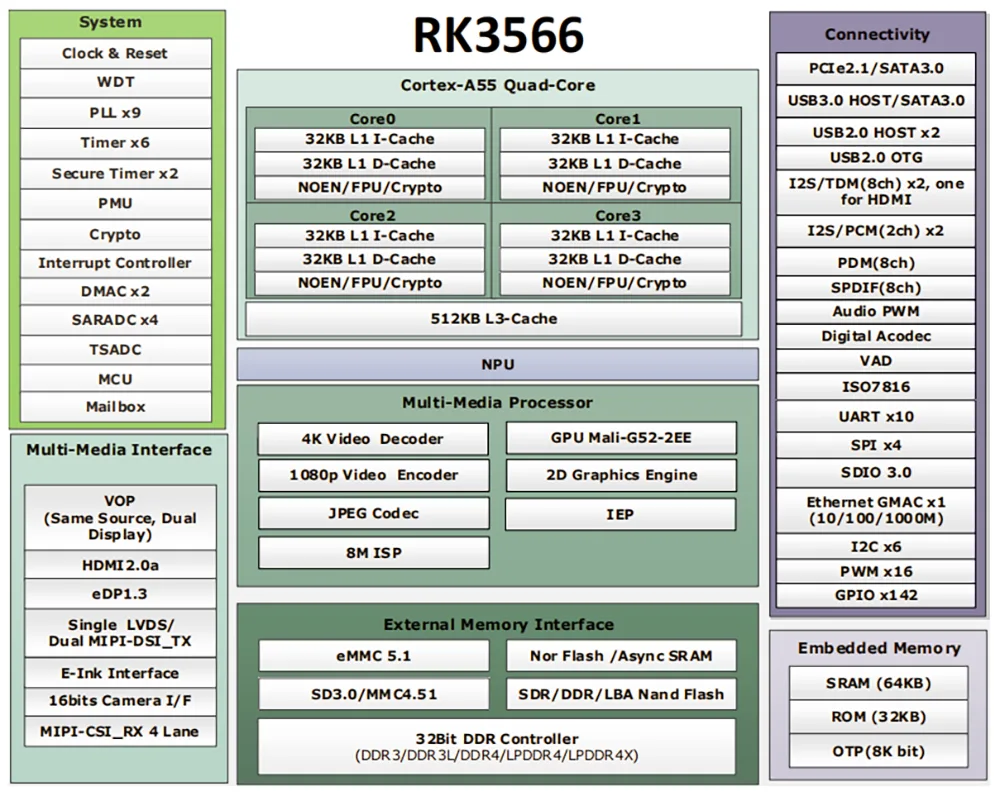

Rock-chip RK3566 is equipped with a quad-core 64-bit Cortex-A55 processor, the main frequency can reach up to 1.8GHz, and the performance has been greatly improved; With 22nm lithography process, it features low power consumption and high performance.. Integrated dual-core architecture GPU, high-performance VPU and high-performance NPU. GPU supports OpenGL ES3.2/2.0/1.1，Vulkan1.1；The VPU can realize 4K 60fps MPEG4/H.264/VP9 video decoding and 1080P 100fps MPEG4/H.264 video encoding; The NPU with computing power of 1Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow.

Environmental applicability

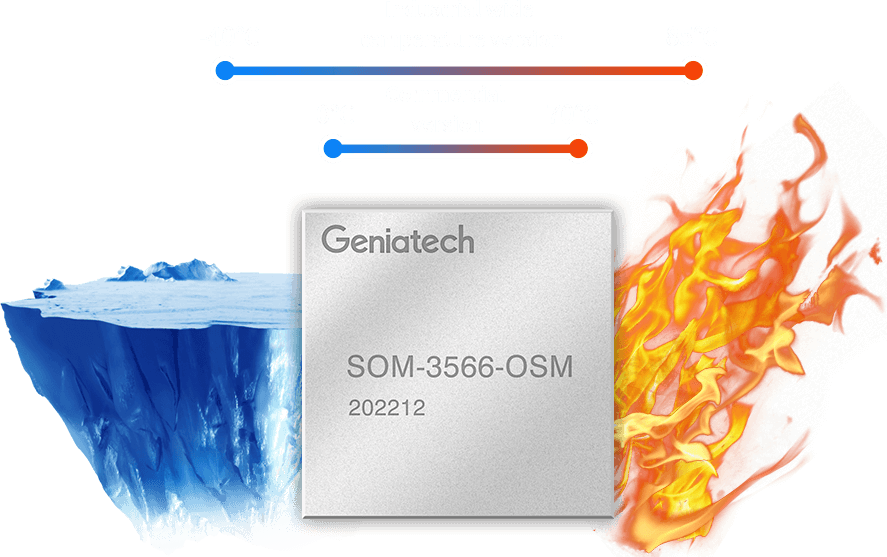

According to the actual using environment, there are industrial wide temperature version and commercial version configurations for chosen: Industrial wide temperature version: -40~85 degrees; Commercial version: 0~70 degrees.

Abundant application interfaces

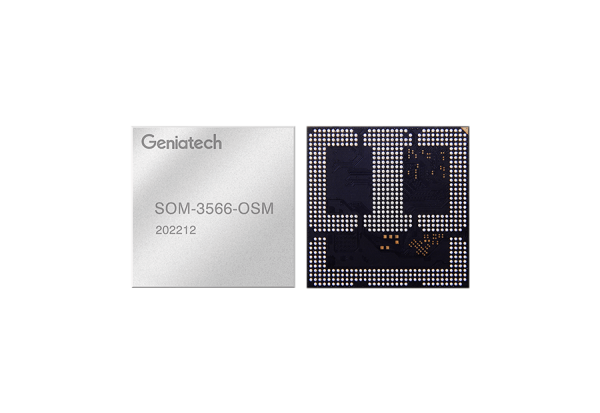

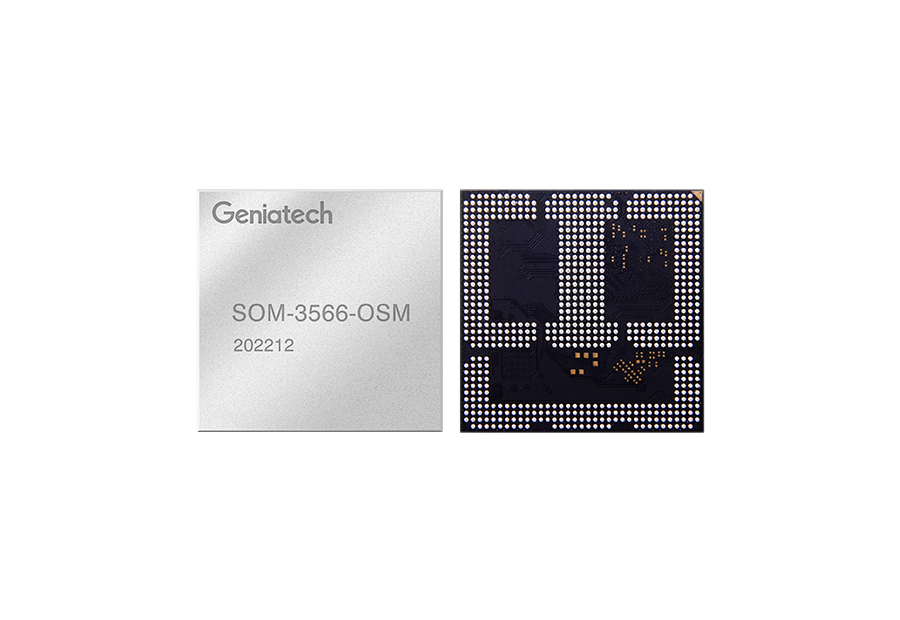

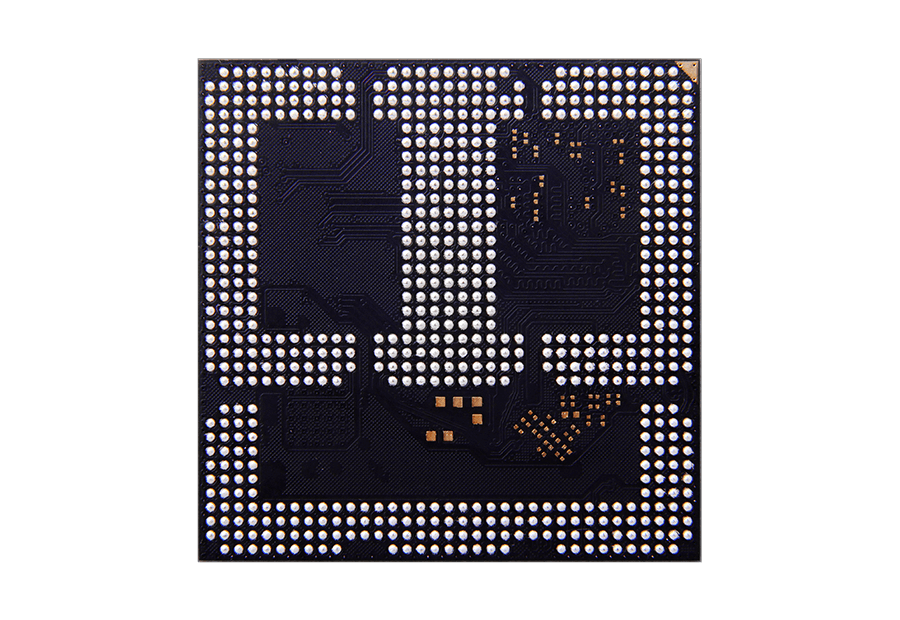

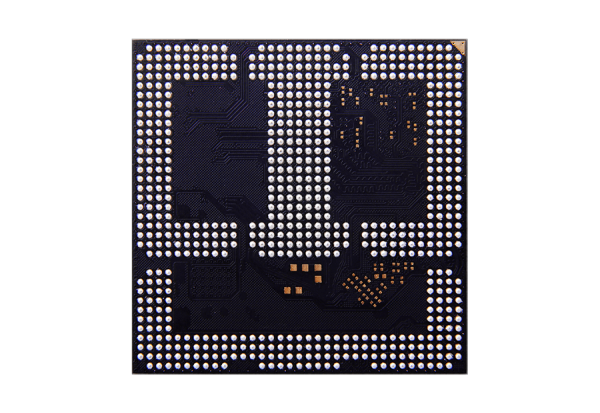

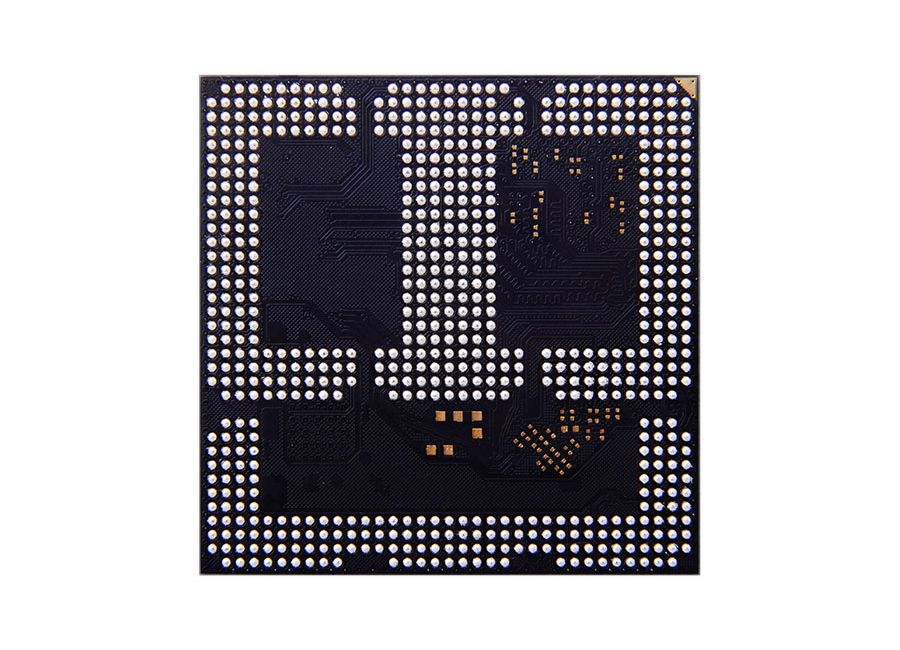

662 ball grid contact points, Support UART, UART、I2C、SPI、ADC、PWM、GPIO、PCIE2.1、USB2.0、USB3.0、HDMI®、EDP、MIPI CSI、MIPI DSI、 I2S、RGMII、SDIO、CIF Camera and other expansion interfaces.

lexible carrier board design

It can be configured according to different product types and applications, and can be customized quickly

Supports various operating systems

It supports Android, Debian, BuildRoot and other operating systems, stable and reliable.

Rockchip RK3566 Core Board Application Scenarios

It can bu used in Audio and video entertainment host, intelligent NVR, cloud terminal, IoT gateway, industrial control, edge computing, face gate, vehicle central control, commercial display equipment, AIoT and other application fields.

The product has a long life cycle and can be supplied for a long time

The RK3566 is included in the Rockchip Product Longevity Program to ensure stable product availability for your embedded design. The hardware supply guarantee period is at least 5 years, and the software maintenance period is 5 years.

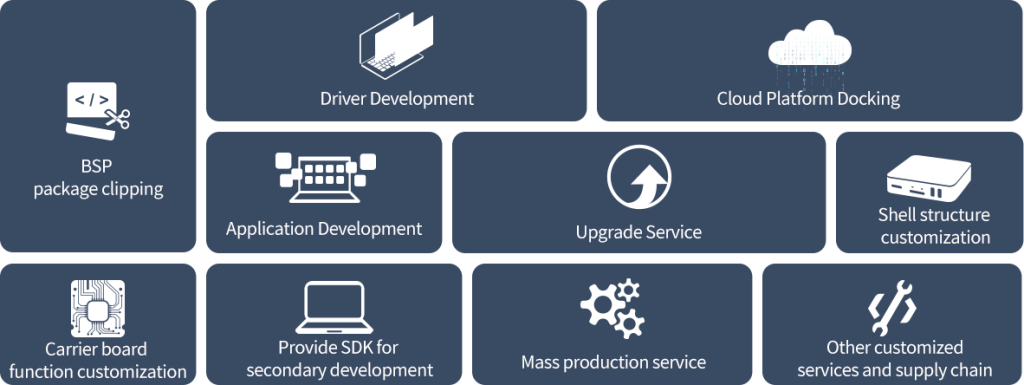

Software and Hardware Customization Services

Chipset Rockchip RK3566
Market area Global
OSD Language English/Chinese(multi language OSD)
Processor CPU Quad-core Cortex-A55
GPU Mali-G52 GPU
RAM 2GB(1GB/4GB/8GB optional)
ROM 16GB（8G/32G/64GB/128GB Optional）
Network Ethernet RJ45, 1000M
WiFi Extend WiFi & Bluetooth via SDIO3.0
Display Support eDP/MIPI-DSI interface, Resolution up to 1920×1080
USB 1 x USB Host 30 , 1 x USB OTG 2.0, 2 x USB Host 2.0
Audio 1 x SPDIF, for audio output 1 x 8ch I²S /TDM, 1×8ch PDM, 1×2ch I²S/PCM
Interface I2C, UART, SPI, SDIO3.0, USB2.0, PWM, RMII, I2S（Support 8-way digital microphone array input）
Dimensions 45 mm *45 mm
Adapter DC input voltage 5V

SOM-3566-OSM Specification
Download
SOM-3566-OSM Schematic
Download
SOM-3566-OSM Developer Guide Debain
Download

Carrier Board

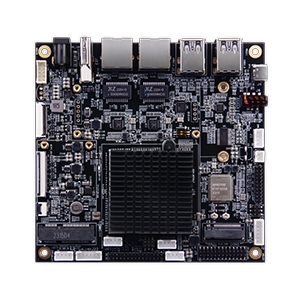

DB3566V2 Specification
Download

DB3566V2 Evaluation Board for Rockchip RK3566 SOM

DB3566V2 unlocks the full connectivity of the RK3566 SOM. It offers a comprehensive set of industrial interfaces and expansion options for rapid deployment of robust AIoT and industrial devices in demanding environments..

  • Gigabit Ethernet with IEEE1588 support
  • Dual HDMI (4K@60Hz) outputs
  • MIPI DSI and dual-port LVDS display interfaces
  • MIPI-CSI camera interface
  • USB 3.0 and USB 2.0 OTG ports
  • RS232 and RS485 industrial interfaces
  • M.2 expansion slot
  • GPIO and power pins
  • Power over Ethernet (12V POE)
  • Dual DC power input (5V/12V)
  • Compact 120×60mm size

Learn More
