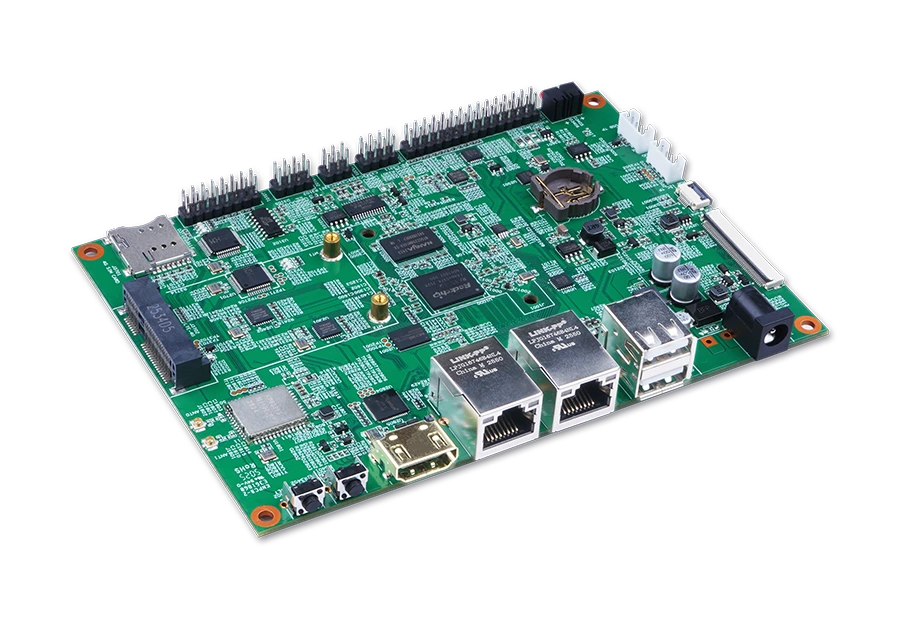

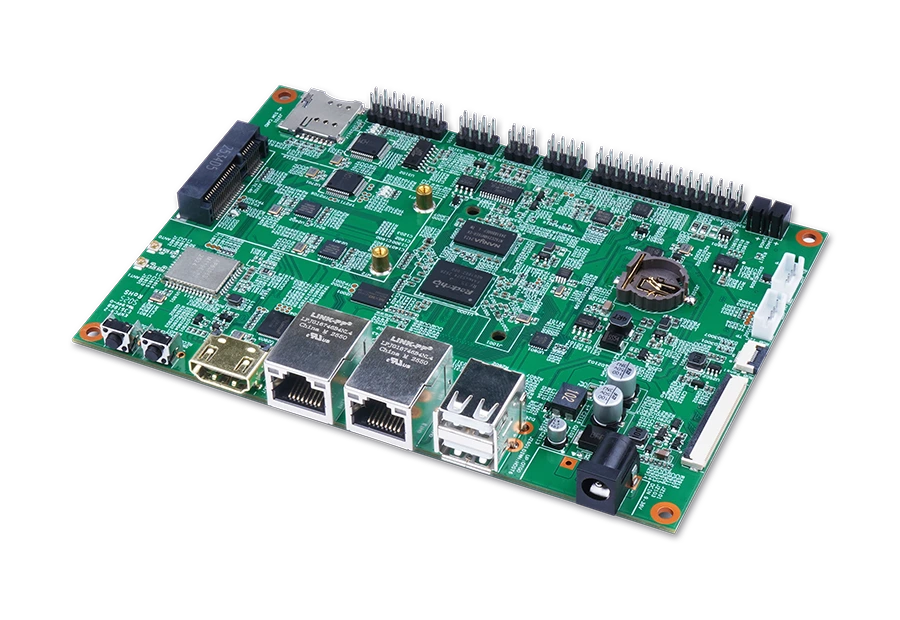

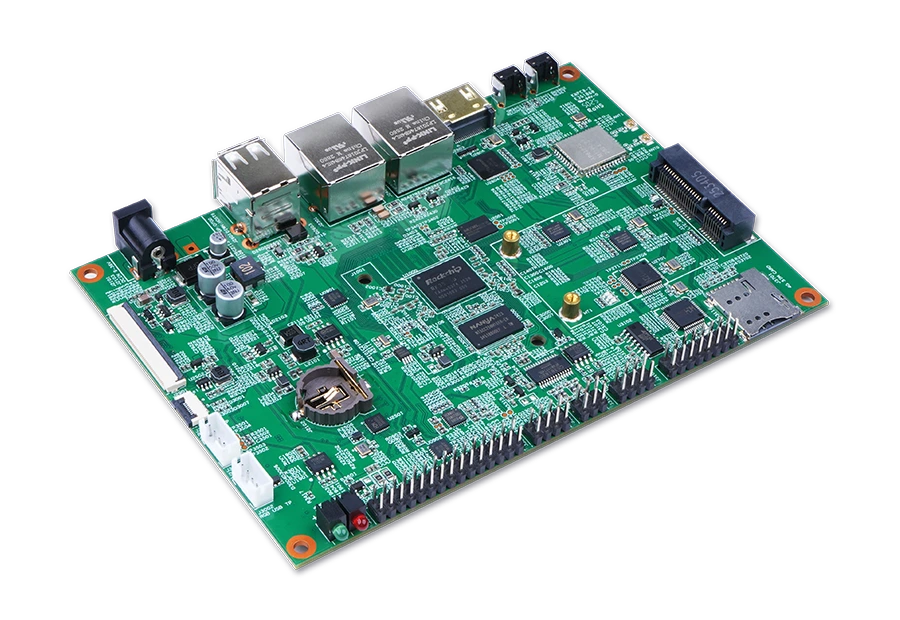

Geniatech DB3506 development board is built on the Rockchip RK3506 processor. Featuring a heterogeneous computing architecture and rich industrial interfaces, it delivers efficient performance with excellent cost efficiency for demanding industrial control, HMI, and embedded applications.
| Processor | |
|---|---|
| Chip Model | Rockchip RK3506 |
| CPU | 3-core ARM Cortex-A7 + ARM Cortex-M0 |
| GPU | Integrated 2D graphics engine with hardware-accelerated 2D rendering |
| OS Support | Linux (Yocto / Buildroot) |
| Memory and Storage | |
| RAM | 512MB LPDDR3 (Optional: 256MB / 1GB) |
| NAND Flash | 256MB (Optional: 256MB / 512MB) |
| Wireless Connectivity | |
| Wi-Fi | 2.4GHz / 5GHz |
| Bluetooth | Bluetooth 5.0 |
| Cellular | Mini PCIe slot for optional 4G module |
| Hardware Interfaces | |
| USB | 2× USB 2.0 Type-A |
| Ethernet | 2× Ethernet |
| Display Output | 1× HDMI OUT, 1× RGB display interface, 1× RGB touch USB interface, 1× RGB touch screen I²C interface |
| Serial Ports | 4× UART, 1× RS-232 / RS-485, 2× CAN |
| Other Interfaces | 1× Audio, 1× Micro SIM socket, 1× 1×4-pin debug header, 2× LED indicators |
| Power & Mechanical | |
| Power Input | DC 12V / 1.5A |
| Dimensions | 146 mm × 102 mm |
| Weight | 105 g |
| Environmental | |
| Operating Temperature | Commercial: 0°C to +60°C Industrial: -40°C to +85°C |
| Storage Temperature | Commercial: -20°C to +70°C Industrial: -40°C to +105°C |
