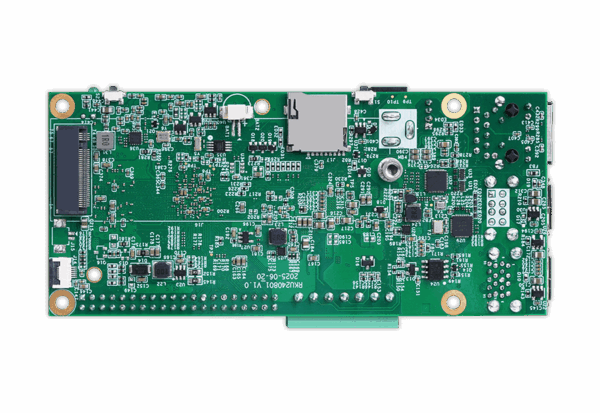

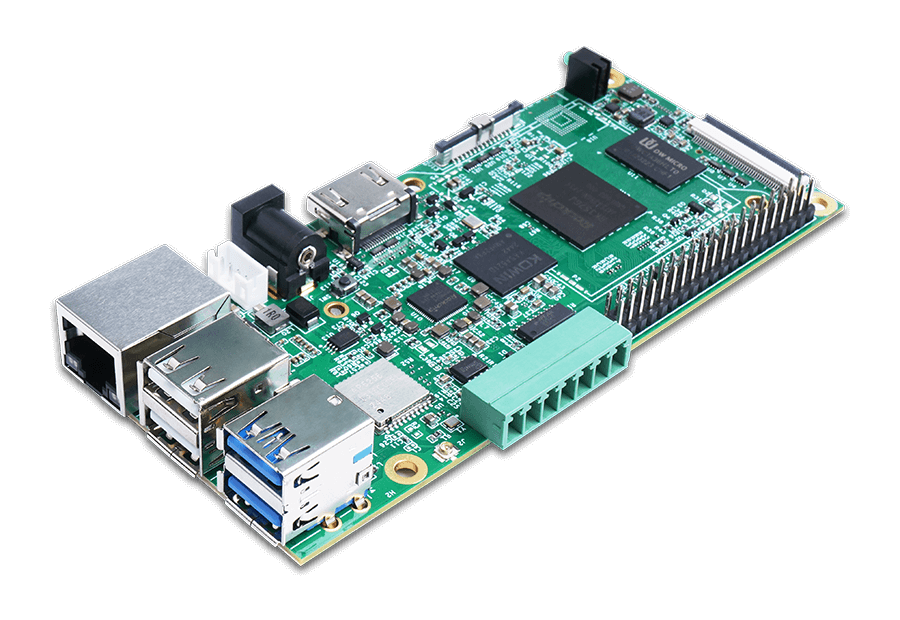

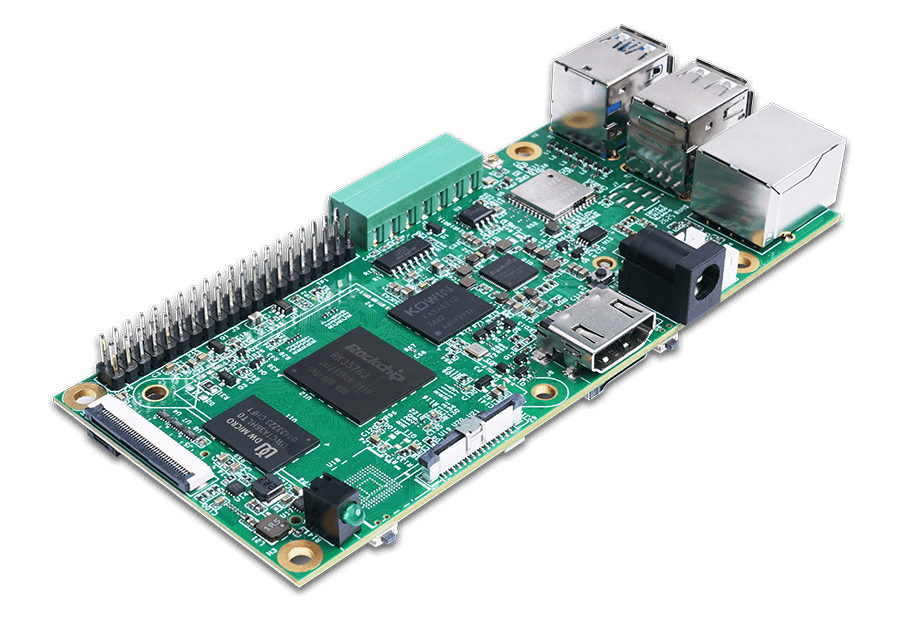

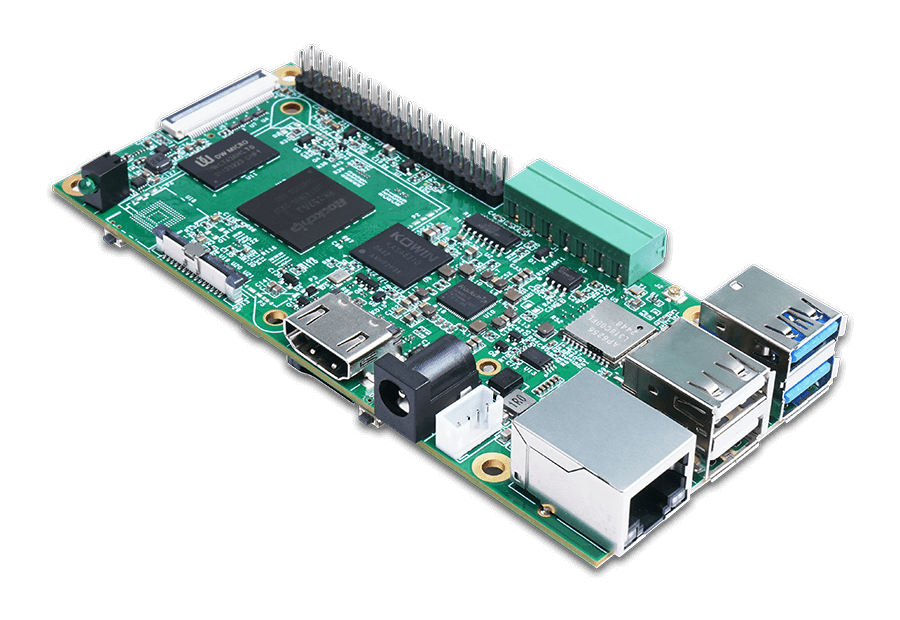

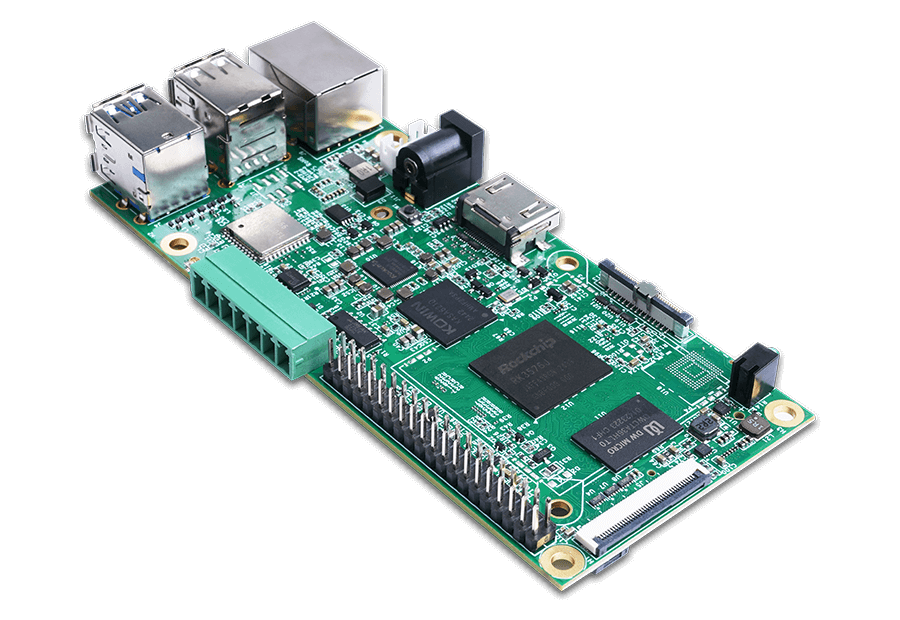

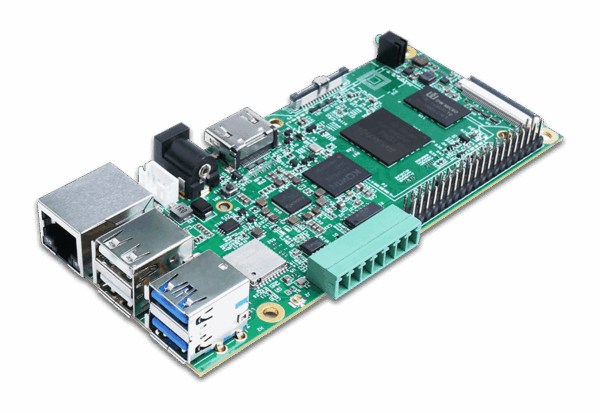

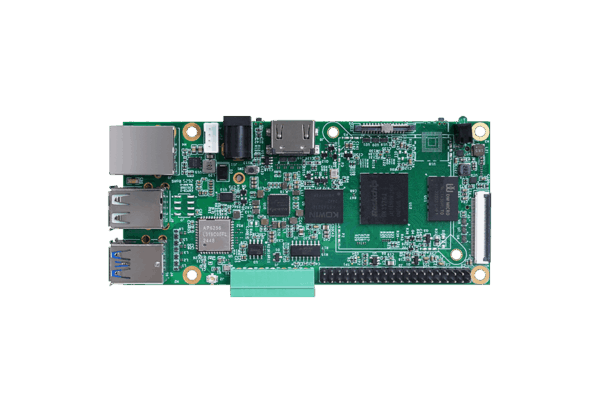

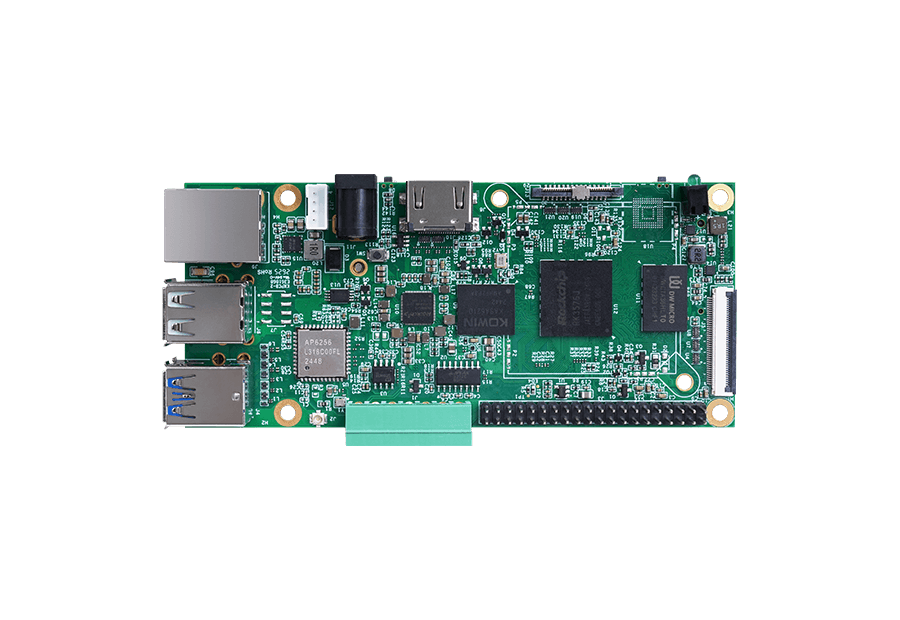

XPI-3576 Industrial AI SBC

Industrial (-40°C~85°C), RK3576 + Hailo-8 M.2 AI module, 6~26TOPS NPU, Raspberry Pi ecosystem compatible, 10+ year lifecycle, Deep BSP & Custom I/O support.

Quad-core Cortex-A72 + quad-core Cortex-A53 real-time core
6 tops NPU, scalable up to Hailo-8 26 TOPS AI performance
Up to 16GB RAM and 128GB eMMC, TF card slot supported
HDMI^® 2.1, MIPI-DSI (4-lane), MIPI-CSI (4-lane), PCIe 3.0
2x USB 2.0, 2x USB 3.0, 40-pin GPIO, 4x UART, CAN, RS485, RS232
1x GbE RJ45 port, optional Wi-Fi 2.4G/5.8G and Bluetooth 5.0
Supports Android 14 and Debian 12 OS
-40 to 85℃ industrial temperature range

Categories: Single Board Computers, XPI Tags: ARM processor, Cortex-A53, Cortex-A72, Octa-core, RK3576, Rockchip

Get A Quote

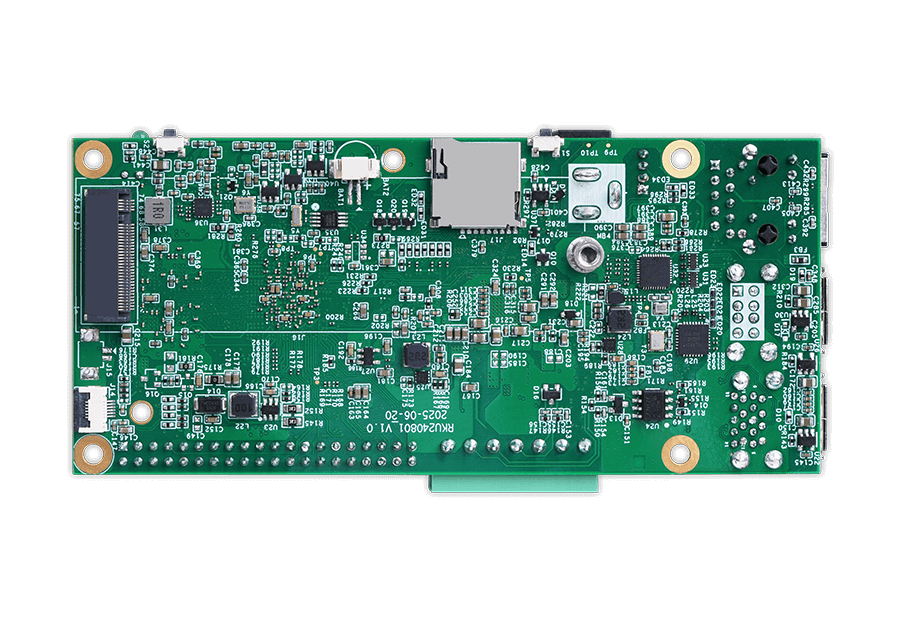

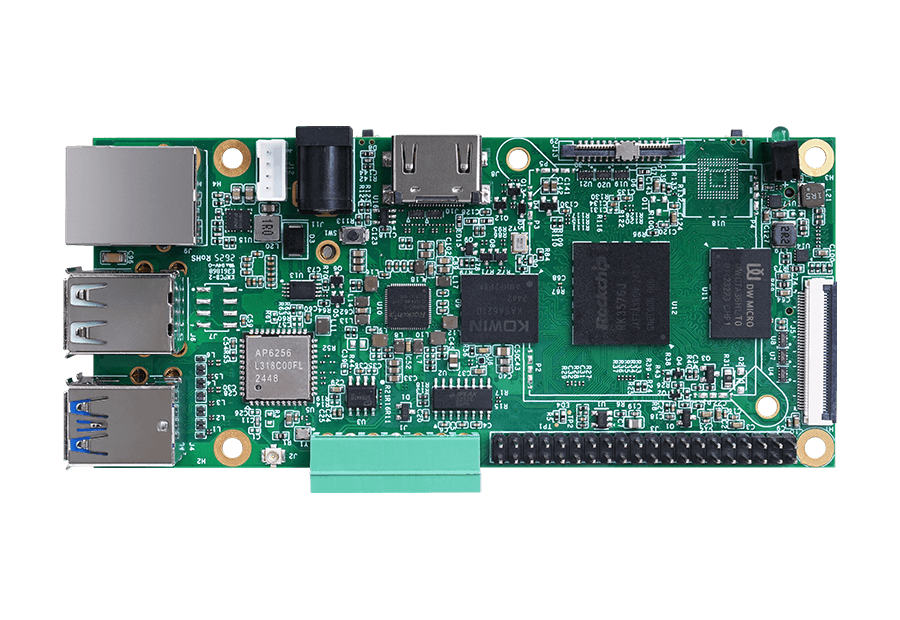

XPI-3576: AI-Enhanced Industrial SBC with Raspberry Pi Compatibility

The XPI-3576 is an AI-enhanced single board computer built on the Rockchip RK3576 SoC with optional Hailo-8 NPU integration. Featuring a hybrid architecture of quad-core Cortex-A72 and quad-core Cortex-A53, it delivers high-performance edge computing with up to 6 TOPS of AI processing, scalable up to 26 TOPS with Hailo-8.

Fully compatible with Raspberry Pi accessories and applications, it supports Android 14 and Debian 12, enabling seamless migration from the Raspberry Pi ecosystem while offering greater performance, industrial reliability, and cost optimization.

Scalable AI Performance
Built-in RK3576 NPU (6 TOPS), expandable with Hailo-8 M.2 module up to 26 TOPS. Supports mainstream frameworks for parallel AI inferencing at the edge.

Comprehensive I/O & Connectivity
Standard interfaces include 40-pin GPIO, HDMI^® 2.1, MIPI-CSI/DSI, USB, and PCIe, with robust networking options via Gigabit Ethernet, Wi-Fi, and BT5.0. Industrial protocols such as CAN, RS485, and RS232 are also supported.

Android, Debian & Deep Learning Support
Supports Android 14 and Debian 12 with pre-integrated BSPs and ready-to-run images, including a Deep Learning BSP for Hailo-8, enabling rapid development, evaluation, and deployment.

Chipset

Rockchip RK3576
NPU

Neural network performance (providing 6TOPS of INT8 computing power)
CPU

Quad-core ARM Cortex-A72 processor + quad-core ARM Cortex-A53 real-time core
GPU

ARM Mali-G52 MC3
Multimedia

Supports video decoding H.264/AVC (up to 4K@60fps) and video encoding H.264/AVC (4K@60fps)
Storage

4GB(8G/16Goptional)
32GB(optional 64G/128G)eMMC
NETWORK

Ethernet: RJ45, 1000M

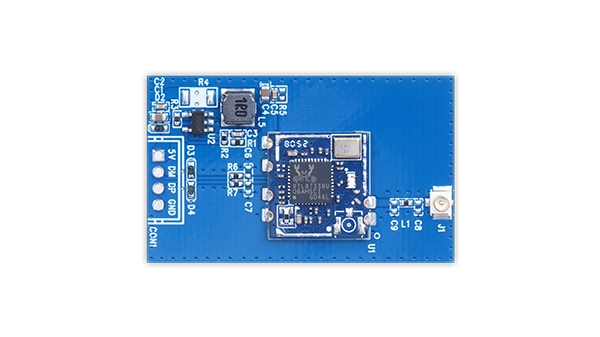

WiFi: 2.4G/5G Dual Band
Bluetooth: BT5.0 (integrated in the WiFi module)
Interface

1 x HDMI^® out, 1 x MIPI-DSI, 1 x MIPI-CSI
2 x USB 3.0, 2 x USB 2.0
1 x Standard 40-pin GPIO header
1×CAN,1×485/422,1×232, 1×PCIe3.0(M.2 B+M-key)
UART, RTC, TF card Slot, Watchdog
OS

Debian12 / Android14
Dimensions

125mm×56mm×22.6mm
Adapter

DC 12V
Operating Temperature

-40~85℃
