Qualcomm QCS6490 OSM-L SOM Module

SOM-Q6490-OSM

Qualcomm QCS6490 OSM-L SOM Module

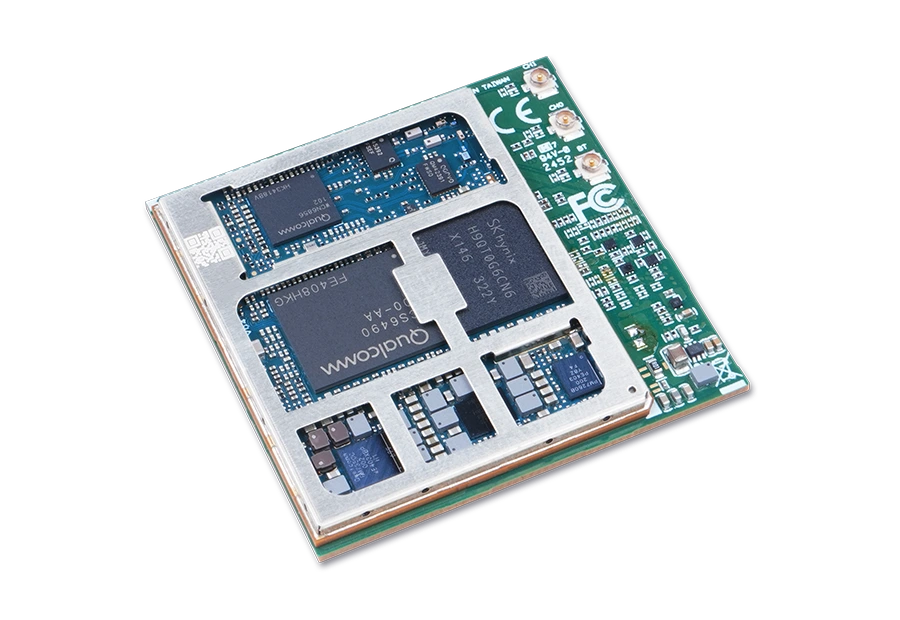

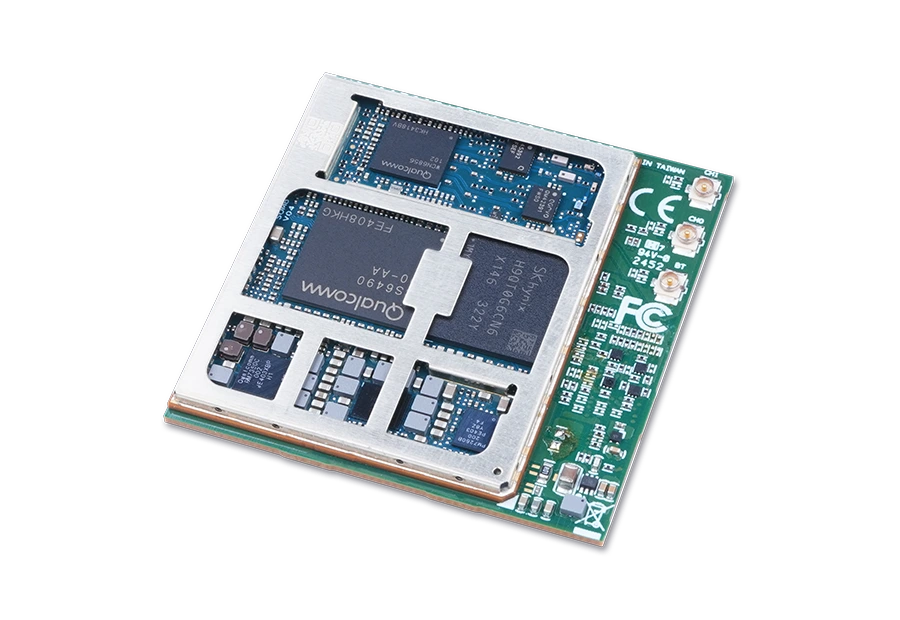

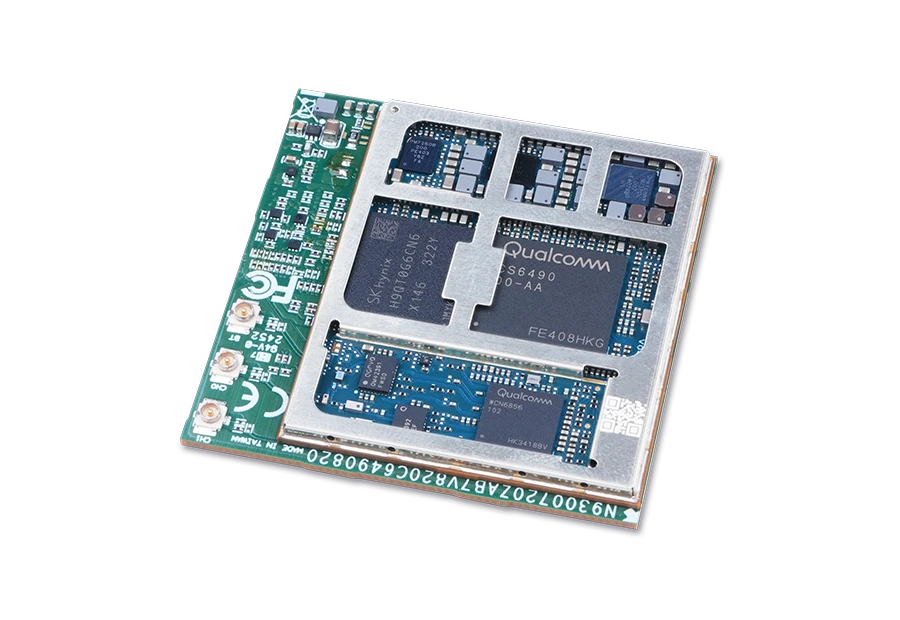

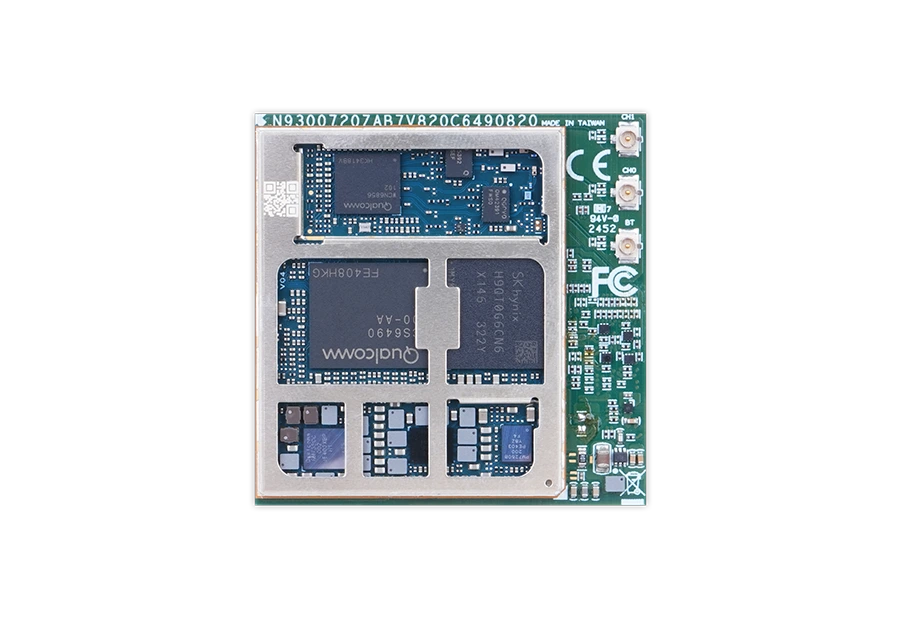

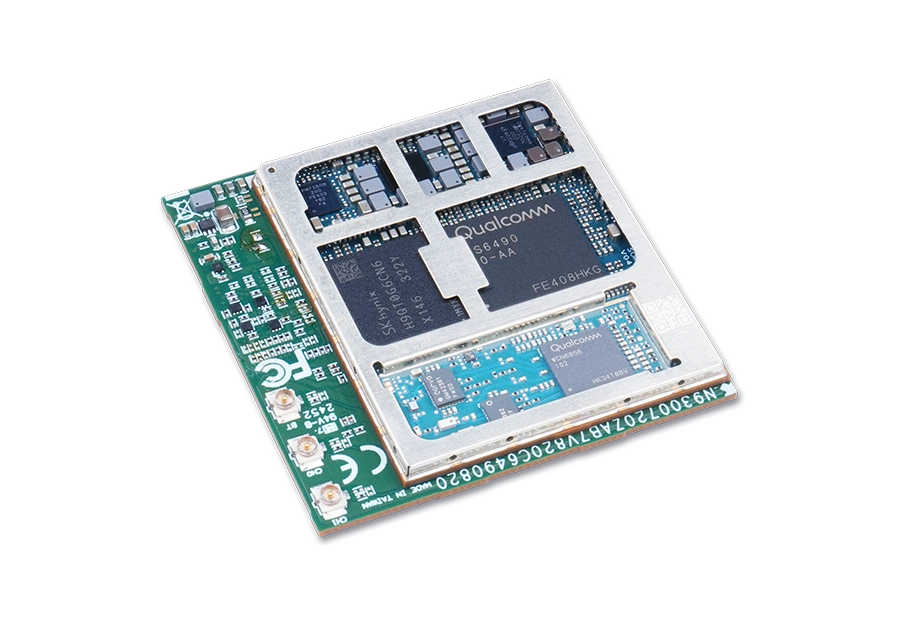

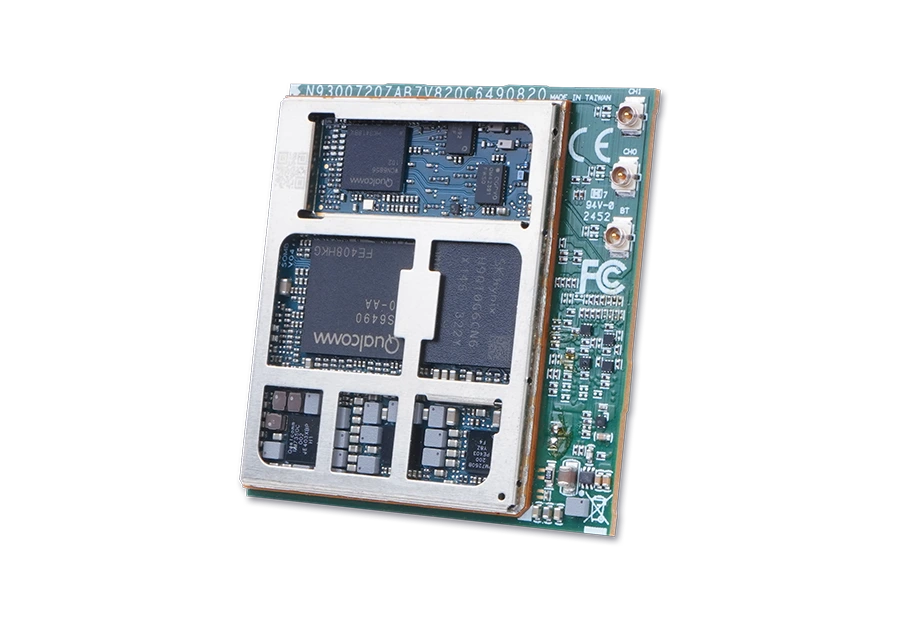

Geniatech SOM-Q6490-OSM is a high-performance OSM v1.2 Size-L module powered by the Qualcomm QCS6490 processor. It combines heterogeneous CPU cores, integrated AI acceleration, and rich industrial I/O in a compact 45 × 45 mm form factor, ideal for edge AI, industrial IoT, machine vision, and advanced HMI applications.

Qualcomm QCS6490, 8-core Kryo 670 CPU (Cortex‑A78 + Cortex‑A55)
OSM v1.2 Size-L module, compact 45 × 45 mm LGA package
Integrated NPU delivering up to 12 TOPS for vision, inference, and generative AI
8GB LPDDR5 memory and 128GB storage
Rich I/O: PCIe, USB, Gigabit Ethernet, CAN, MIPI-DSI/LVDS, eDP, MIPI-CSI, I²C, UART, SPI, SD, PWM, I2S, GPIO
Industrial temperature range: −40°C to 85°C
Linux (Yocto 5.0 / Ubuntu) and Android 13 support

General

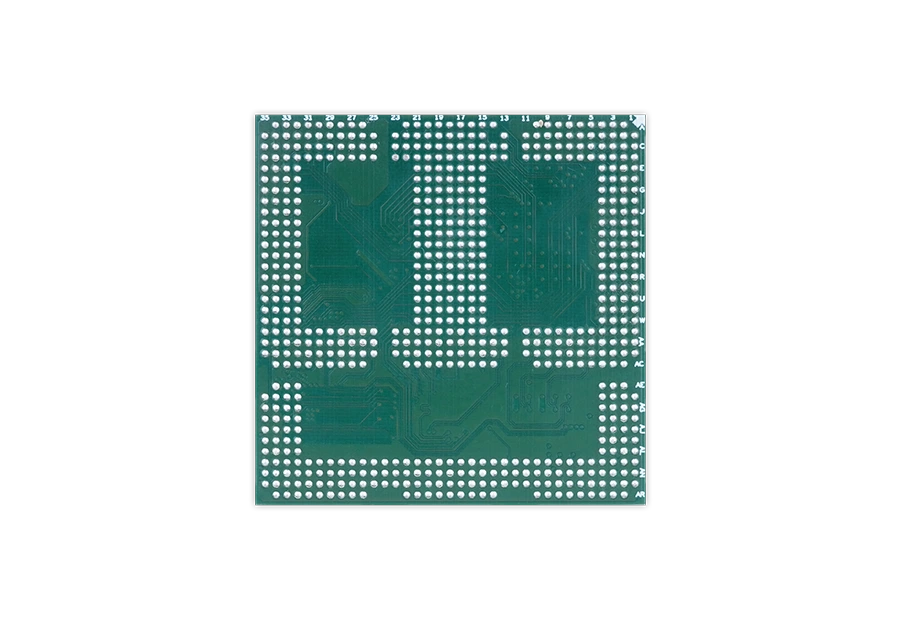

OSM Standard	OSM v1.2, Size-L Standard, 662-pin LGA, 45 mm × 45 mm
Processor	Qualcomm QCS6490, 1× Kryo Gold Plus @2.7GHz + 3× Kryo Gold @2.4GHz + 4× Kryo Silver @1.9GHz
AI Performance	6th-gen Qualcomm AI Engine with Hexagon DSP, up to 12 TOPS, optimized for edge AI, vision, and inference tasks
GPU	Adreno 643 GPU
Multimedia	Triple ISP (Spectra 570L), supports up to 5 cameras, 4K video encode @30fps / decode @60fps
Memory	8GB LPDDR5
Storage	128GB
Operating Temperature	−40°C ~ 85°C
Operating System	Linux (Yocto / Ubuntu), Android 13
Hardware Interfaces
Display	MIPI-DSI/LVDS, eDP
Camera	MIPI-CSI
Peripheral Interfaces	PCIe, USB, CAN, I²C, UART, SPI, SD, I²S, PWM, GPIO
