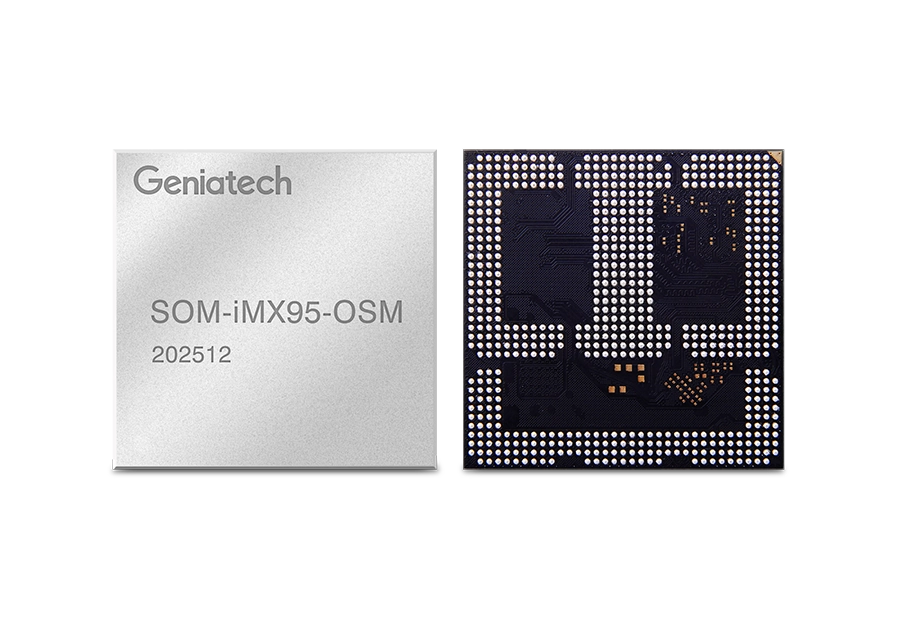

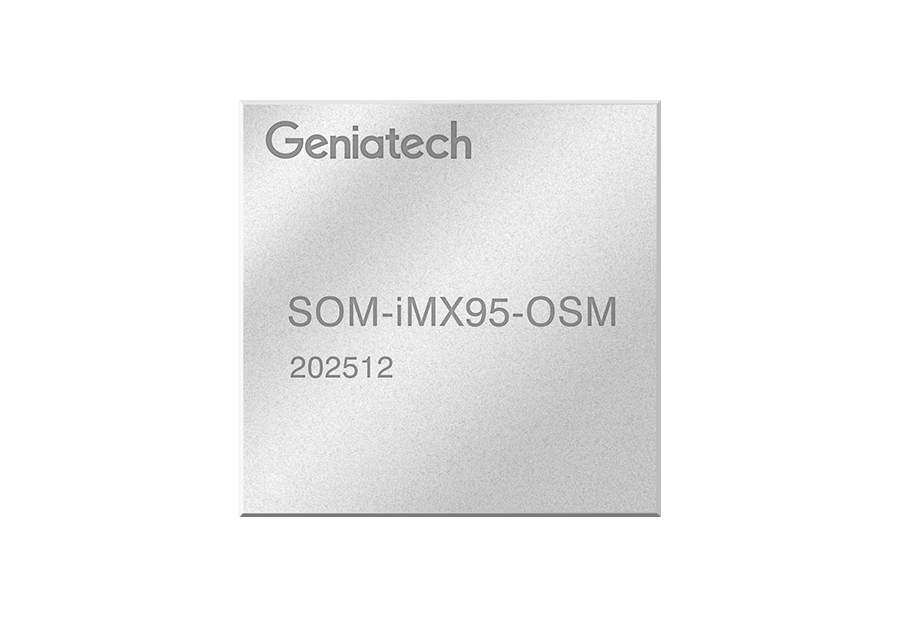

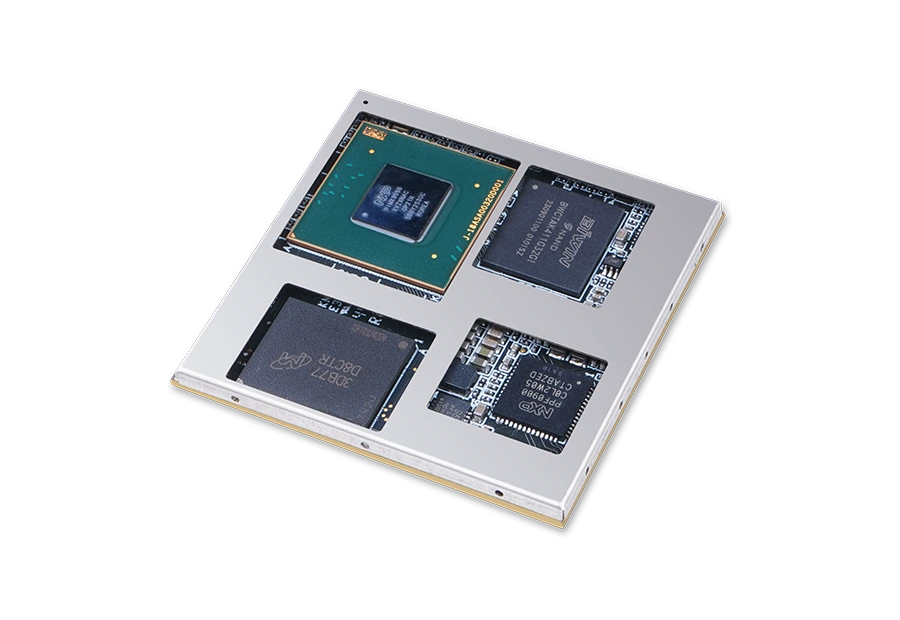

SOM-iMX95-OSM

i.MX95 OSM System-on-module

Geniatech SOM-iMX95-OSM is a high-performance solder-down system-on-module based on NXP’s flagship i.MX95 applications processor. It combines advanced multicore processing, dedicated real-time control, and a powerful NPU into a compact, standardized OSM-L footprint, designed for demanding applications from robotics to smart infrastructure.

  • Compliant with OSM-L standards, LGA package, customizable carrier board
  • NXP® i.MX 95 processor with 6x Cortex-A55 cores at up to 2.0 GHz.
  • Dual real-time co-processors: ARM Cortex-M7 and ARM Cortex-M33.
  • NXP eIQ® Neutron NPU for on-device AI inference.
  • High-performance ARM Mali GPU for graphics acceleration.
Contact Sales

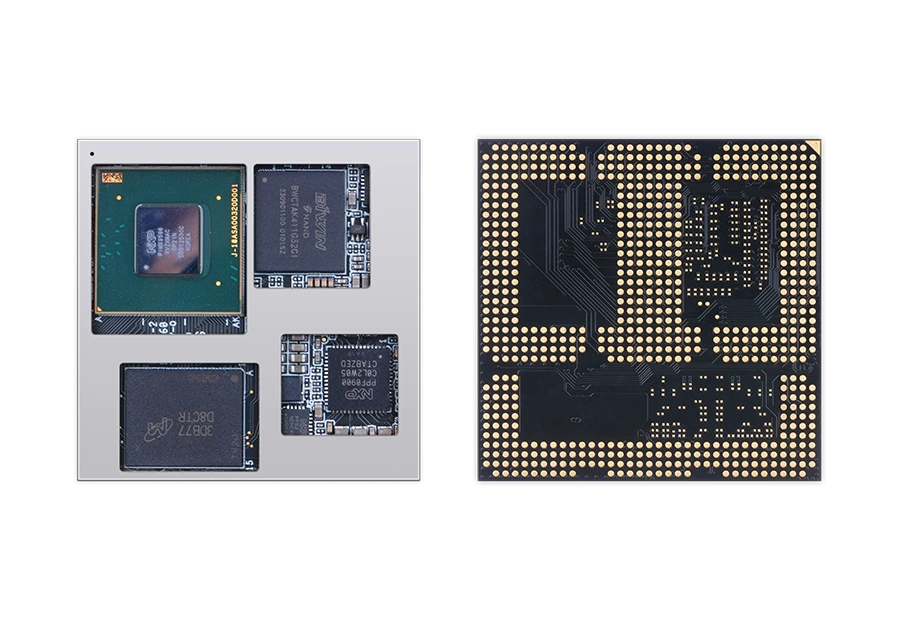

Standardized OSM-L Form-Factor
  • Vendor-neutral open standard for design freedom, reuse, and longevity
  • High pin-to-area ratio for rich connectivity in a compact 45×45 mm footprint

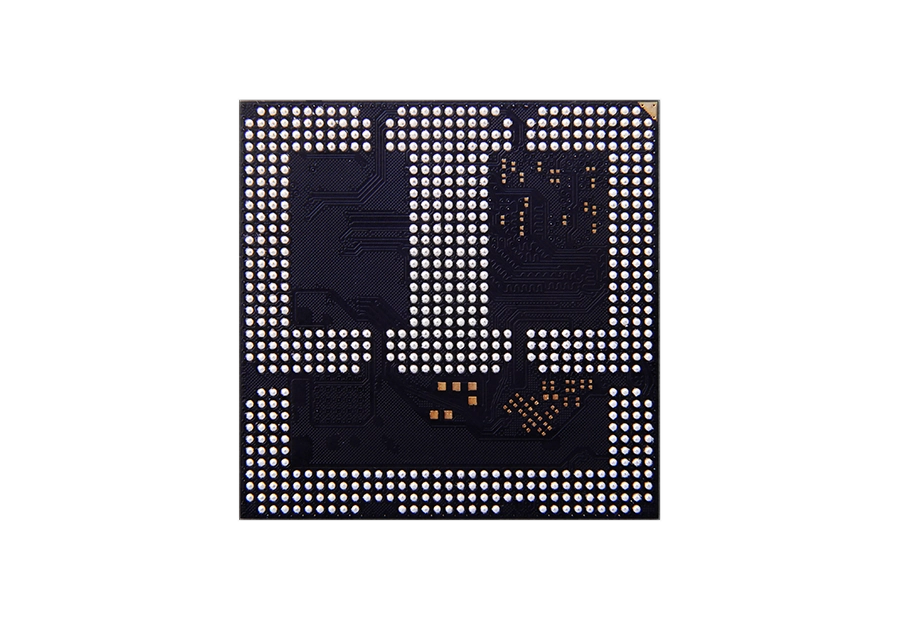

  • Rugged LGA solder mounting for high reliability in industrial environments
  • Industrial temperature range of -40°C to +85°C

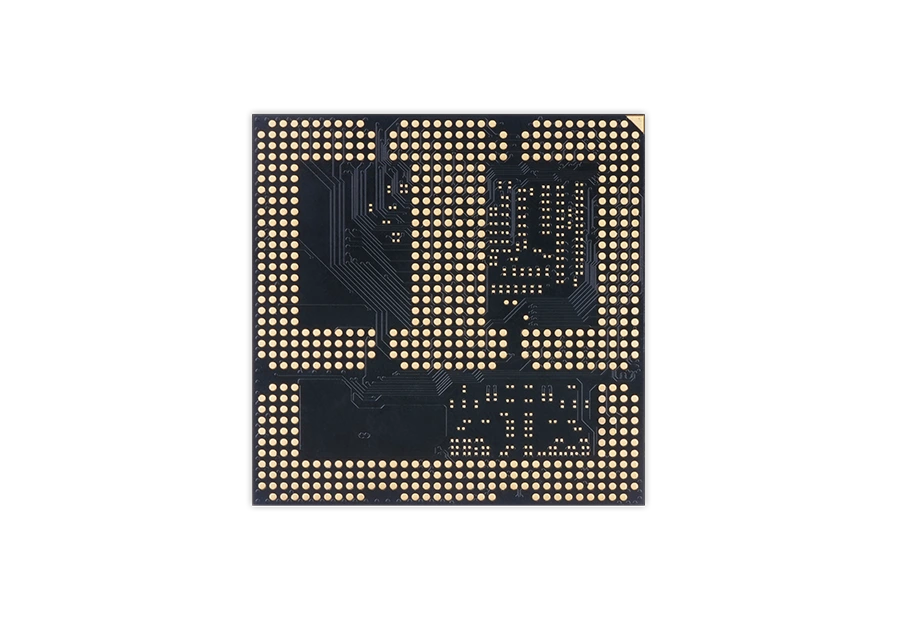

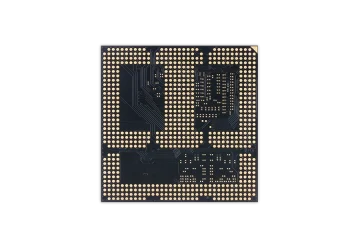

SOM-iMX95-OSM-900x620px_003-260109
Feature Highlights
  • 6x Cortex-A55 cores + 2x real-time cores (Cortex-M7 & Cortex-M33)
  • ARM Mali GPU, 4K VPU & AI/ML NPU (NXP eIQ® Neutron)
  • Up to 16GB LPDDR5 and 128GB eMMC
  • Rich Connectivity: Dual GbE, PCIe, CAN-FD, MIPI, USB, and serial interfaces.
Software and Development Support
  • Linux (Yocto Project) with long-term support maintenance
  • Full Board Support Package (BSP) and ready-to-run images
  • Support for OTA (Over-the-Air) updates and remote device management
  • Advanced security with NXP EdgeLock and trusted execution environment
  • Pre-validated driver packages for display, AI, and peripheral integration

Accelerate Your Product Development

  • Full design package including schematics, BOM, and PCB layout files
  • Proven reference designs for all key interfaces
  • Streamlined service from prototype to mass production
  • Direct technical support from Geniatech engineering team

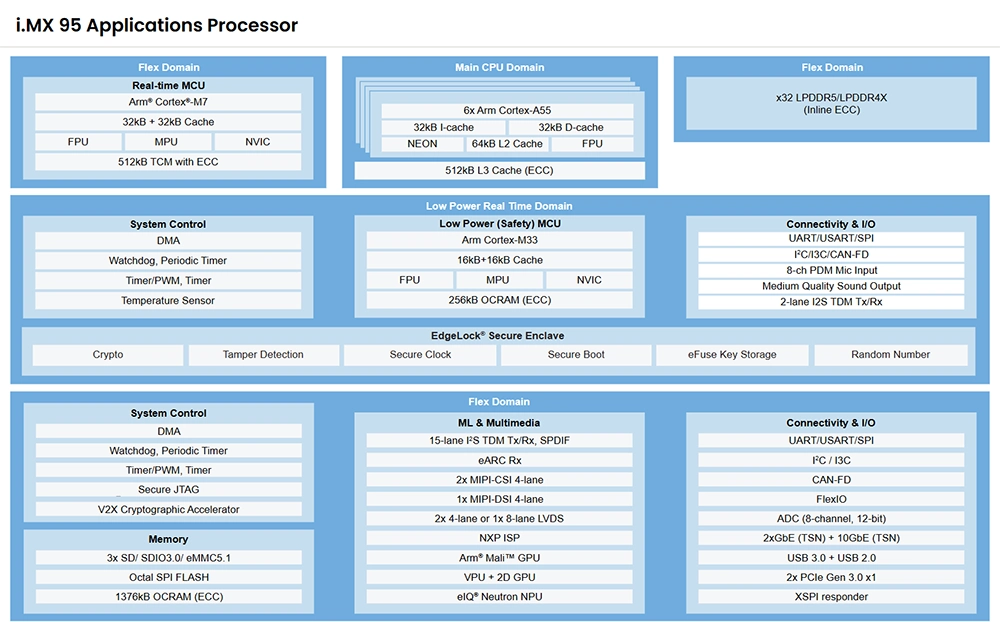

Processor

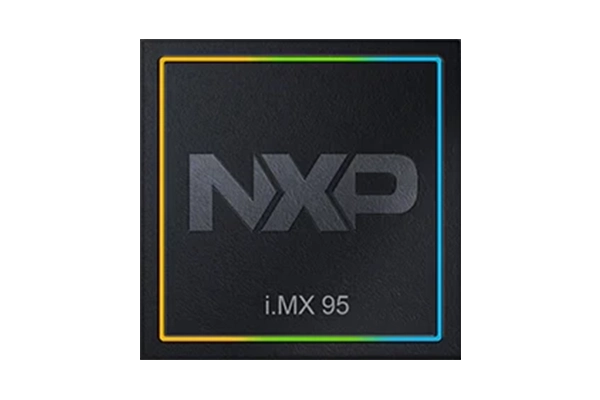

Chip model NXP i.MX95
CPU 6x Cortex-A55 + Cortex-M7 + Cortex-M33
NPU NXP eIQ® Neutron NPU (2.0 TOPS)
GPU ARM Mali-G310 GPU, 64 GFLOPS (FP32), supports OpenGL ES 3.2, OpenCL 3.0
VPU 4K video decode and encode
Memory and Storage
RAM 4GB / 8GB /16GB LPDDR5 (Optional)
Storage 32GB / 64GB / 128GB eMMC (Optional)
Storage Expansion 1x SD interface (SD 3.0 compliant), supports boot from SDHI/e-MMC, UHS-I/SDR50/SDR104 modes
Hardware Interfaces
Display Output 1x 4-lane MIPI DSI (data supplied by LCDIF)
Camera Input 1x 4-lane MIPI CSI-2
USB 2x USB 2.0
Wired Networking 2x Gigabit Ethernet interfaces, , supports TSN, EEE, Ethernet AVB, IEEE 1588
In-Vehicle Network 1x CAN (FlexCAN), supports flexible data-rate (FD)
Serial Ports 3x UART (hw/sw flow control), 3x I2C, 2x SPI (master/slave)
Other interfaces 2x PCIe, 2x PWM, 3x SAI (Audio), 24x GPIO, 1x Watchdog Timer
Physical & Environmental
Form Factor & Package LGA package, OSM 1.1 standard
Dimensions 45mm × 45mm
Power supply 5V DC
Operating System Linux

Specification

SOM-iMX95-OSM Specification
Download

Related Products

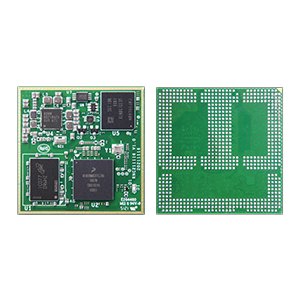

i.MX8MM OSM Computer-on-Module

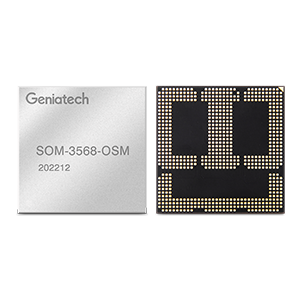

RK3568J OSM-L System-on-module

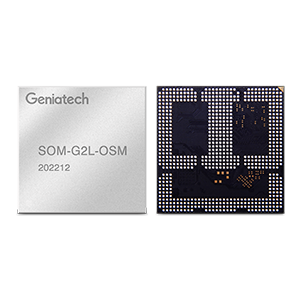

Renesas RZ/G2L OSM SOM

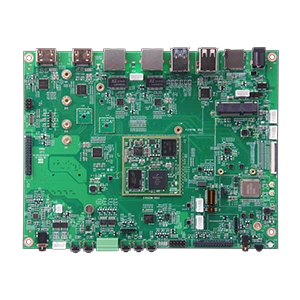

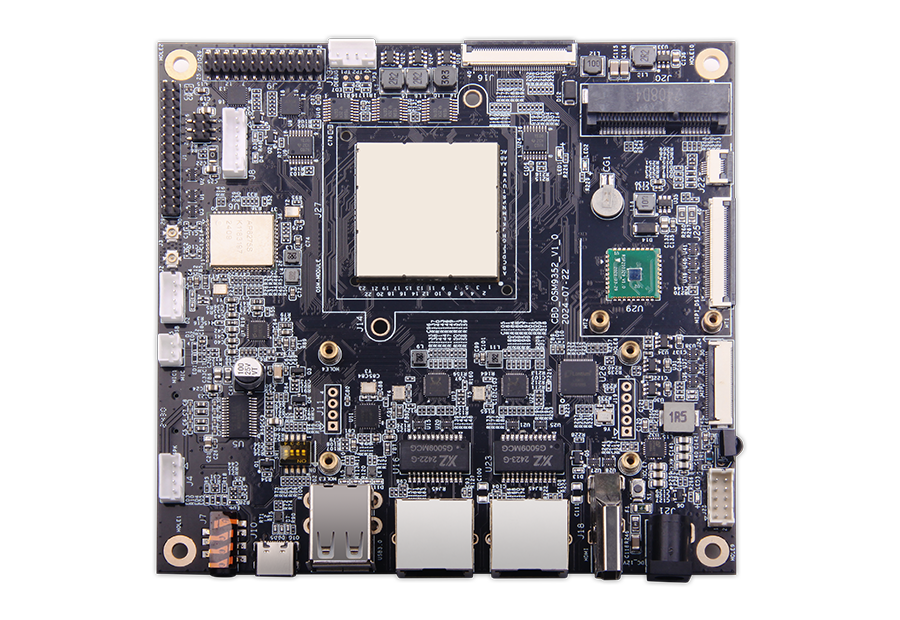

i.MX8MM OSM Evaluation Board

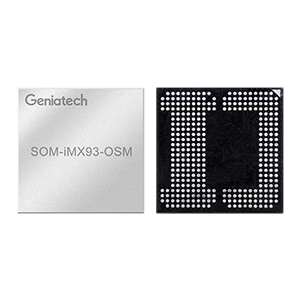

i.MX93 OSM-S System-on-module

Frequently Asked
Questions

Contact Now
Q: What is the SOM-iMX95-OSM module?

A: The SOM-iMX95-OSM is a compact OSM standard System-on-Module powered by the NXP i.MX95 processor, offering high performance multicore processing and edge computing in a rugged 45×45 mm form factor.

Q: What are the key performance features?

A: It includes 6× ARM Cortex A55, real time Cortex M7/M33 cores, an NPU for AI, up to 4 GB LPDDR5 and 32 GB eMMC (expandable), plus graphics and multimedia support.

Q: What industrial interfaces does it support?

A: The module provides dual Gigabit Ethernet (TSN), PCIe, USB, MIPIDSI/CSI, CANFD, UART, I2C, SPI, PWM and GPIO for flexible connectivity.

Q: Which software and temperature ranges are supported?

A: It supports Linux (Yocto) with a stable BSP and runs in an industrial range of -40 °C to +85 °C, ideal for embedded and edge applications.
