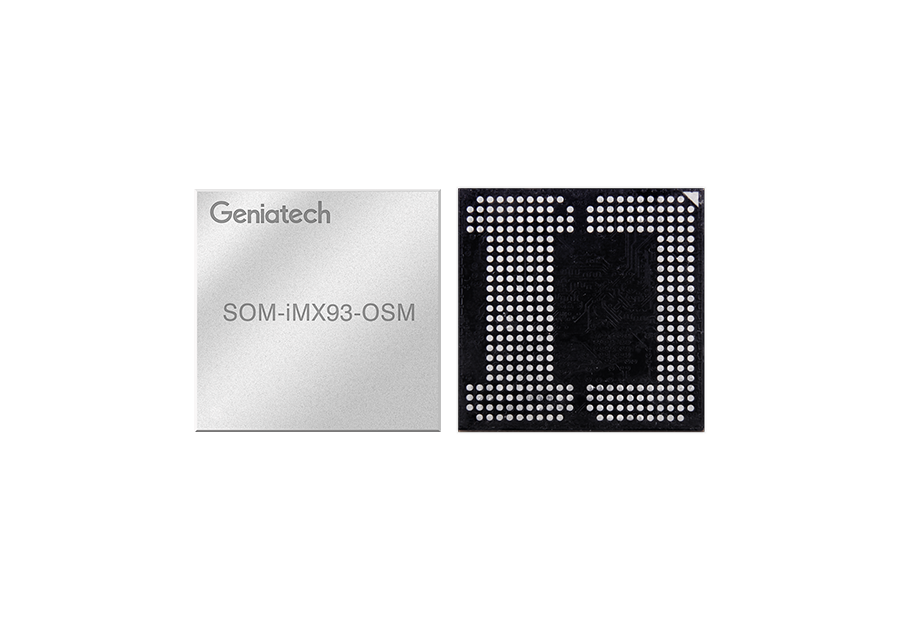

i.MX93 OSM-S System-on-module

SOM-iMX93-OSM

Geniatech SOM-iMX93-OSM is a solderable system on module featuring NXP® i.MX93 processor with an Arm Ethos U-65 microNPU for accelerated machine learning and an Arm Cortex-M33 for real-time control. It is ideal for industrial control, HMI, data gateways, and edge computing.

Compliant with OSM-S standards, customizable carrier board
Dual-core Cortex-A55@1.8GHz + Cortex-M33@250MHz, 0.5 TOPS Ethos-U65 NPU
Up to 2GB RAM and 32GB eMMC
2x GbE, MIPI-DSI, MIPI-CSI, CAN-FD, UART, SPI, PWM, USB, GPIO
-40 to 85℃ industrial temperature range

Standardized OSM Form-Factor

Compact OSM Size-S footprint – 30 x 30 mm
Vendor-neutral open standard for long-term design reuse

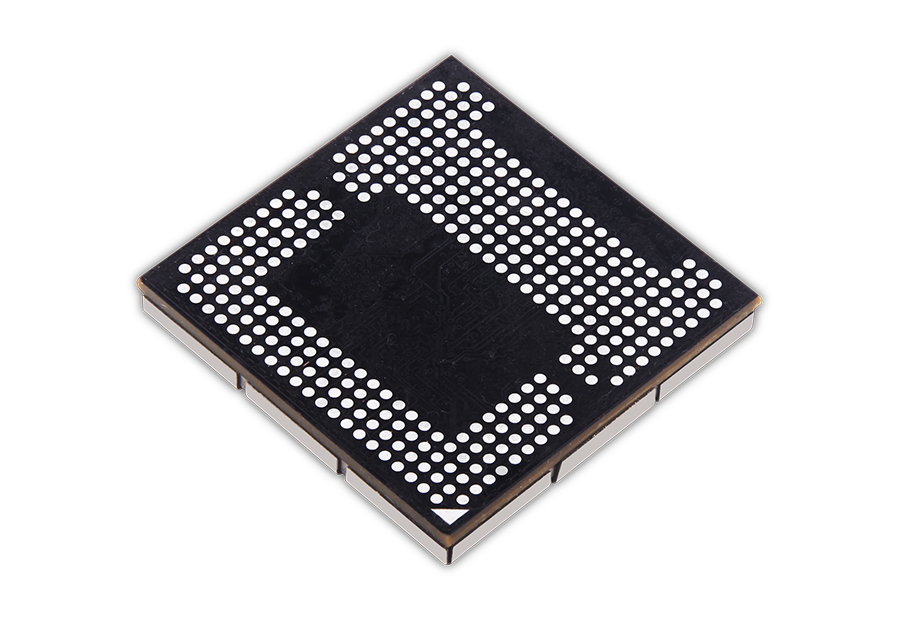

Solder-down LGA interface, optimized for automated SMT and reflow soldering
Industrial temperature range of -40°C to +85°C

Feature Highlights

Dual-Core ARM Cortex-A55 + ARM Cortex-M33
Integrated Ethos-U65 NPU for low-power edge AI inference
Flexible memory and storage options with LPDDR and eMMC
Dual Gigabit Ethernet (RGMII), 2x USB 2.0 with PHYs
Comprehensive I/O: CAN-FD, UART, I2C, SPI, PWM, and GPIO

Software & BSP Support

Linux (Yocto Project) Board Support Package with U-Boot and Linux kernel
Long-term software maintenance for industrial applications
Support for OTA (Over-the-Air) updates and remote device management

Carrier Board & Development Services

Full carrier board design package including schematics, BOM, and PCB layout
Proven reference designs covering all key interfaces
Free design review for custom carrier boards
Driver adaptation services for custom LCD panels
Streamlined services from prototype development to mass production
Direct technical support from Geniatech engineering team

CPU	NXP i.MX93 / NXP i.MX95 optional Dual-Core ARM Cortex-A55+ARM Cotex-M33
NPU	Neural Network performance (256 MACs operating up to 1.0 GHz and 2 OPS/MAC)
Memory and Storage	RAM: 2GB Storage: 16GB eMMC (optional 8G/32G)
Operating Systems	Linux (Yocto)
Display and Camera Interfaces	MIPI-DSI: One 4-lane MIPI DSI display with data supplied by the LCDIF MIPI CSI: One 2-lane MIPI CSI-2 camera input
Connectivity	Ethernet: 2x Gigabit Ethernet ports USB: 2x USB 2.0 controllers and PHYs interfaces Other interfaces: CAN-FD, UART, I2C, SPI, PWM, GPIO
OSM Form Factor	Sizes: 30*30 mm Connector: 332 Pin OSM size S
POWER	POWER: 5V/2A Temp Range: -40°C to 85°C (industrial grade)

Specification

SOM-iMX93-OSM Specification

Download

CarrierBoard Specification

SOM-iMX93-OSM CarrierBoard Specification

Download

User Guide

SOM-iMX93-OSM Yocto User Guide

Download
