MediaTek Genio 520/720 OSM SOM Module

SOM-G520-OSM

MediaTek Genio 520/720 OSM SOM Module

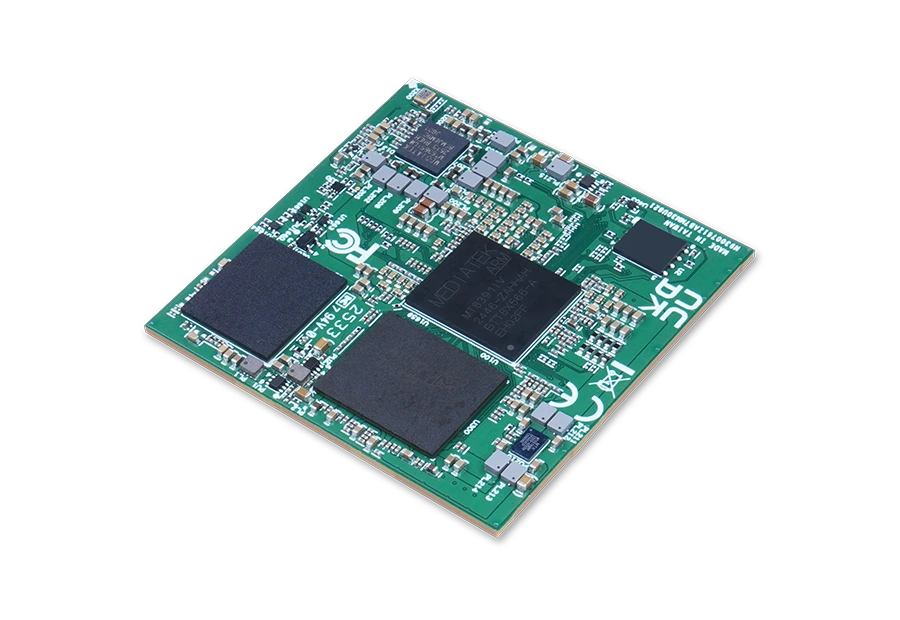

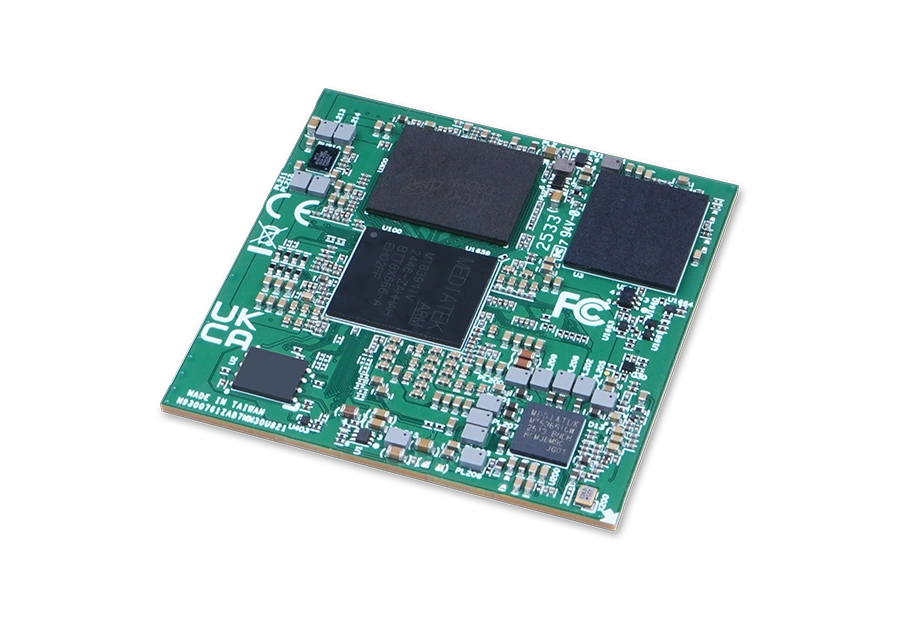

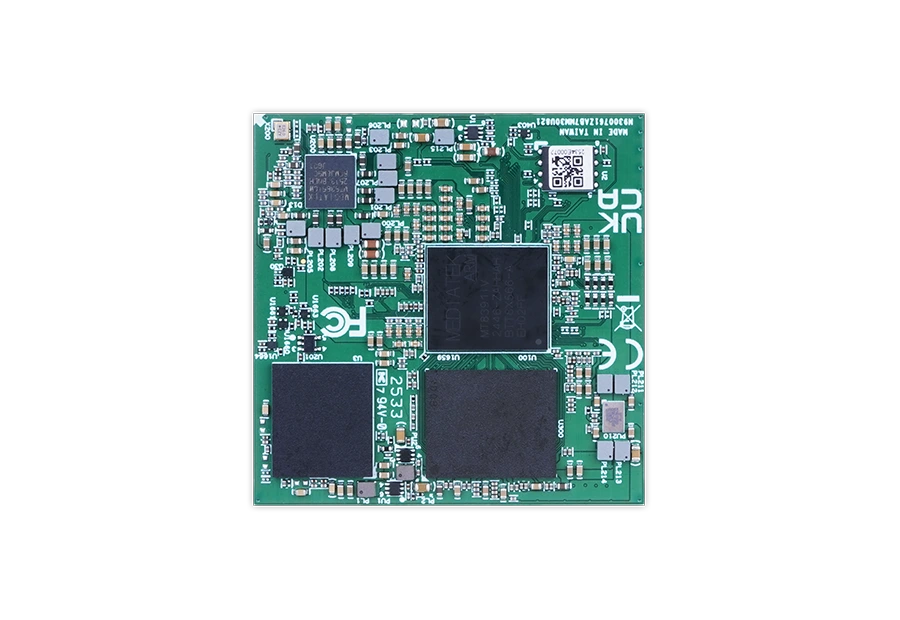

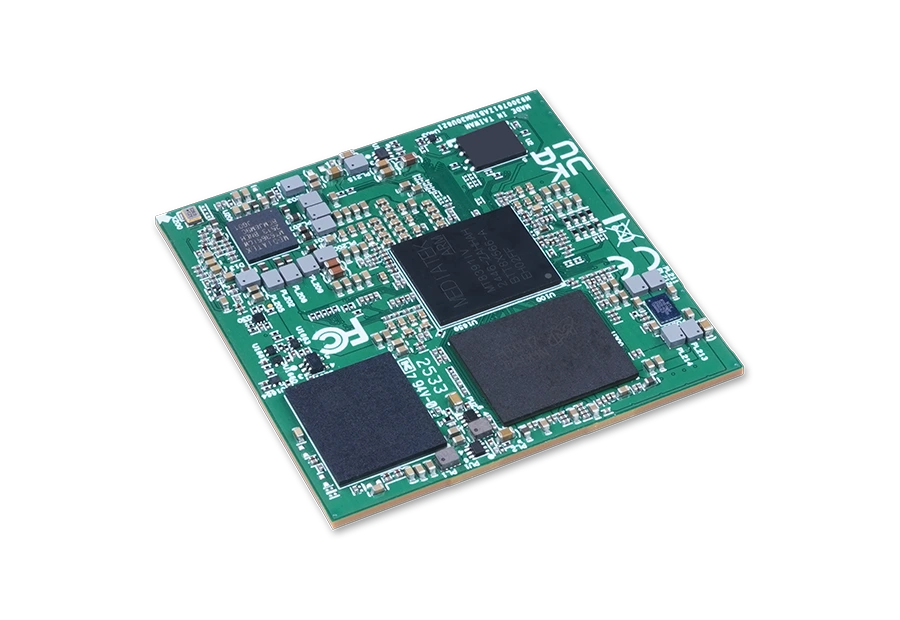

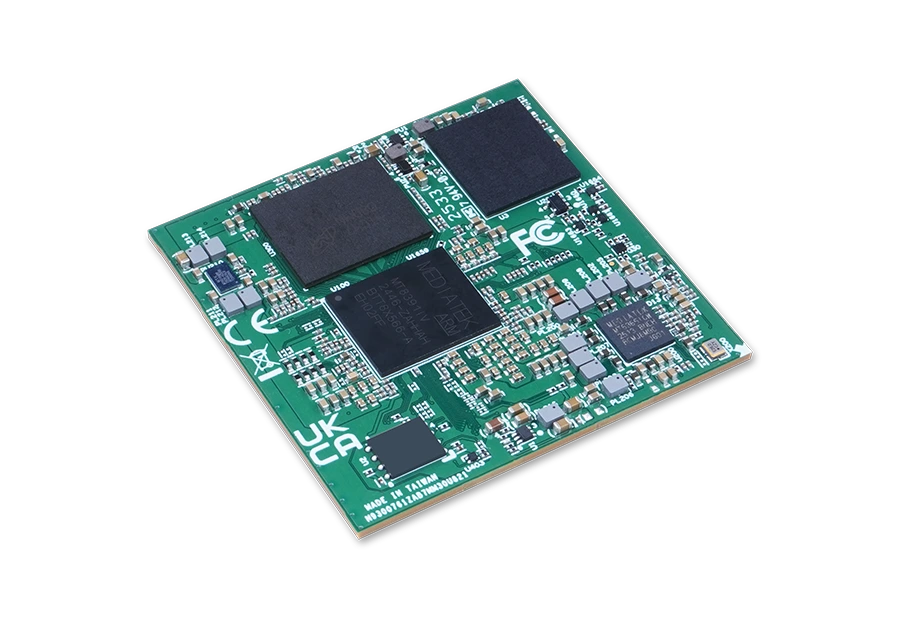

Geniatech SOM-G520-OSM and SOM-G720-OSM are next-generation OSM v1.2 Size-L modules powered by the MediaTek Genio 520 and MediaTek Genio 720 processors. They deliver higher CPU performance, faster LPDDR5 memory, and UFS storage, with advanced NPU acceleration for edge generative AI tasks, all within the same compact 45 × 45 mm form factor.

Cortex-A78 + Cortex-A55 heterogeneous CPU architecture
OSM v1.2 Size-L module, compact 45 × 45 mm LGA package
Up to 10 TOPS integrated NPU for edge AI and generative AI
8GB LPDDR5 memory and 128GB UFS 3.1 storage (256GB / 512GB optional)
Rich I/O: PCIe, USB, Gigabit Ethernet, CAN, MIPI-DSI/LVDS, eDP, MIPI-CSI, I²C, UART, SPI, SD, PWM, I2S, GPIO
Industrial temperature range: −40°C to 85°C
Linux support: Embedded Linux (Yocto 5.0)

General

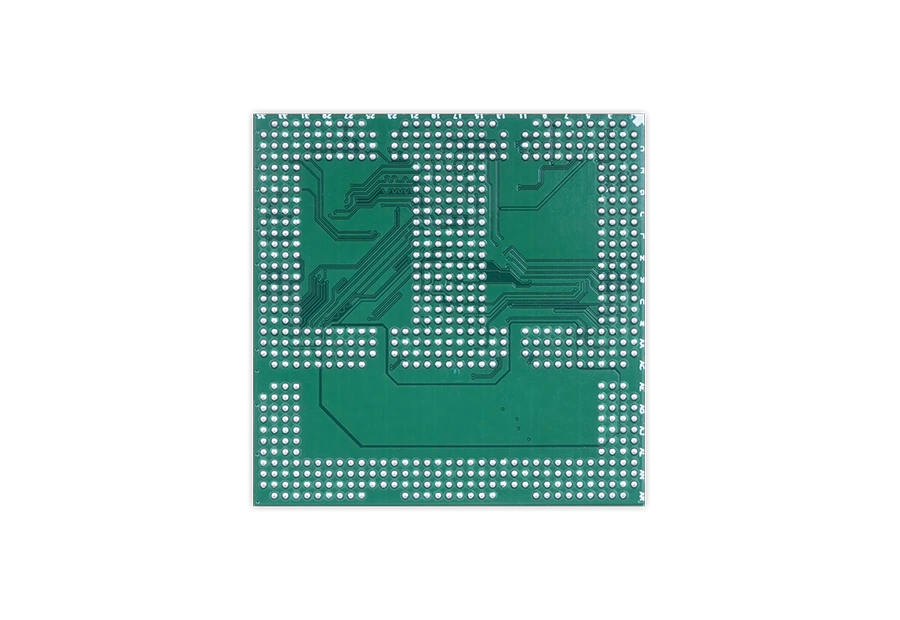

OSM Standard	OSM v1.2, Size-L SoC Module, 662-pin LGA, 45 mm × 45 mm
Processor	MediaTek Genio 520: 2× Cortex-A78 @ 2.2 GHz + 4× Cortex-A55 @ 2.0 GHz MediaTek Genio 720: 2× Cortex-A78 @ 2.6 GHz + 6× Cortex-A55 @ 2.0 GHz
AI Engine (NPU)	Integrated MediaTek 8th-generation NPU, up to 10 TOPS total system AI performance, optimized for edge AI and generative AI tasks
GPU	Arm Mali-G57 MC2 GPU, performance-tuned graphics supporting ultra-high resolution (single 5K or dual 2.5K)
Memory	8GB LPDDR5
Storage	128GB 3.1 UFS(256GB/512GB Optional)
Operating Temperature	−40°C ~ 85°C
Operating System	Embedded Linux (Yocto)
Hardware Interfaces
Display	MIPI-DSI/LVDS, eDP
Camera	MIPI-CSI
Peripheral Interfaces	PCIe, USB, CAN, I²C, UART, SPI, SD, I²S, PWM, GPIO
