MediaTek Genio 510 OSM-L SOM Module

SOM-G510-OSM

MediaTek Genio 510 OSM-L SOM Module

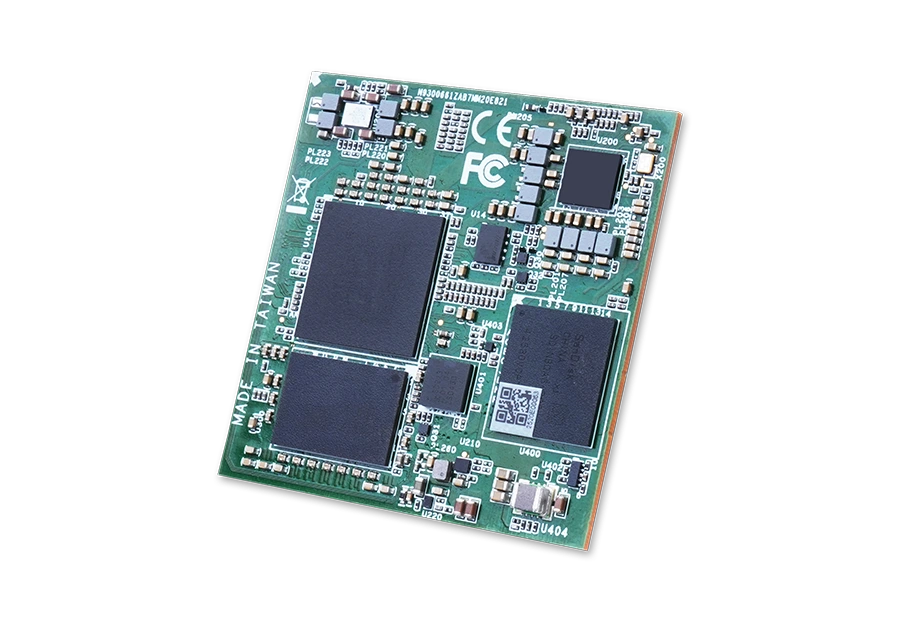

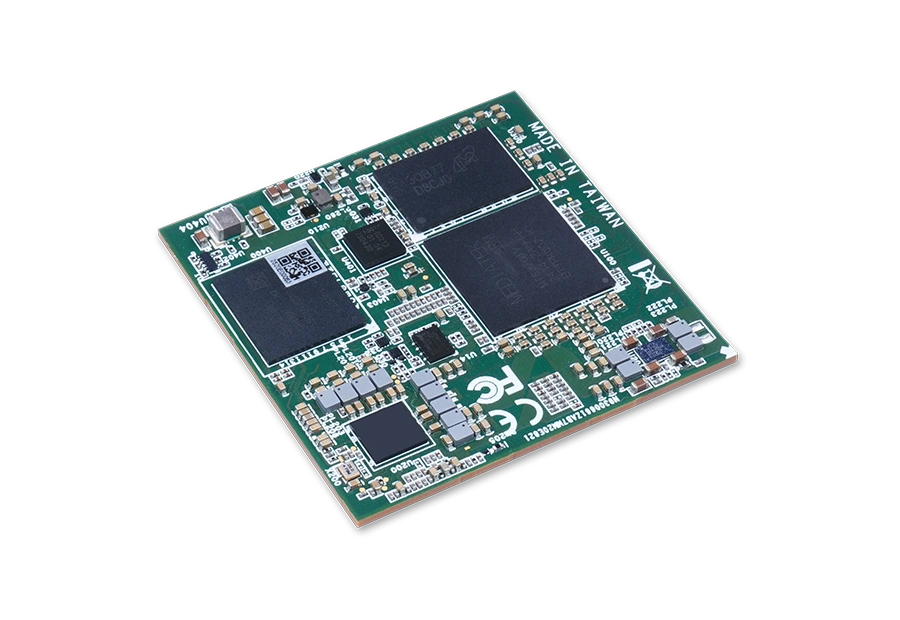

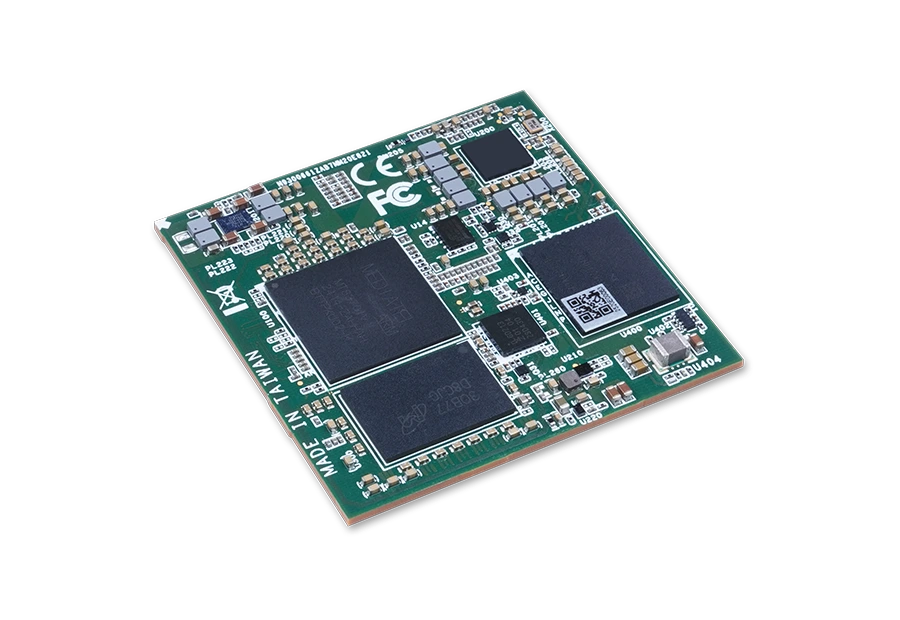

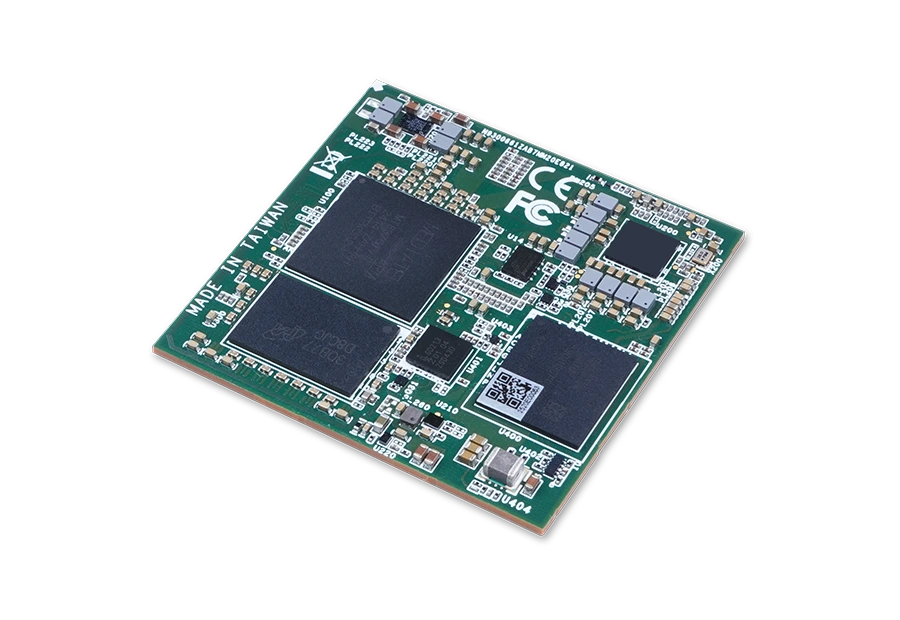

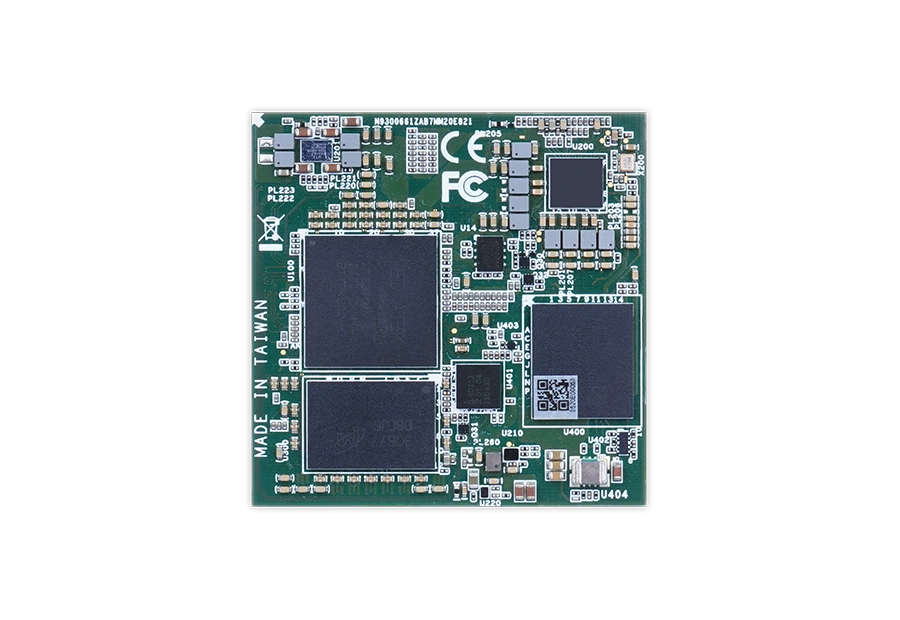

Geniatech SOM-G510-OSM is a high-performance OSM v1.1 Size-L module powered by the MediaTek Genio 510 processor. It delivers efficient heterogeneous computing, integrated AI acceleration, and rich industrial I/O in a compact 45 × 45 mm form factor, ideal for industrial IoT, edge devices, and advanced HMI.

2× Cortex-A78 + 4× Cortex-A55 heterogeneous CPU
Up to 3.2 TOPS integrated NPU for real-time AI vision tasks
OSM v1.1 Size-L module, 45 × 45 mm LGA package
Rich I/O: PCIe Gen3, USB 3.0, GbE, CAN, MIPI
On-module LPDDR4 memory and eMMC storage
Industrial temperature: –40°C to 85°C
Linux support: Embedded Linux (Yocto)

General

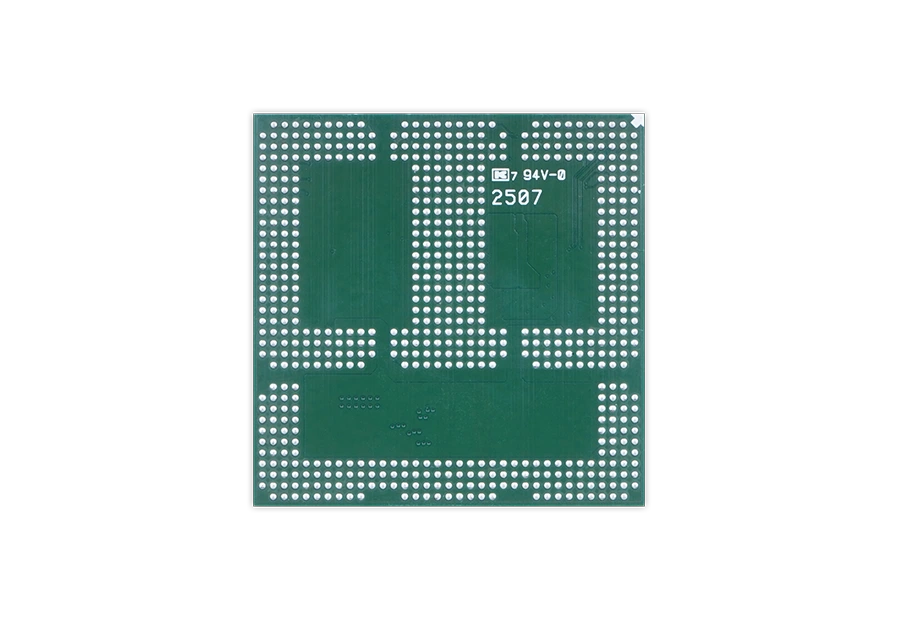

OSM Standard	OSM v1.1, Size-L SoC Module, 662-pin LGA, 45 mm × 45 mm
Processor	MediaTek Genio 510: 2× Cortex-A78 @ 2.0 GHz + 4× Cortex-A55 @ 2.0 GHz
AI Performance	Equipped with a 5th-generation MediaTek NPU, up to 3.2 TOPS, optimized for real-time AI tasks like facial recognition and object identification.
GPU	Arm Mali-G57 MC2 GPU, high-efficiency graphics supporting dual displays (4K + FHD)
Memory	4GB LPDDR4
Storage	32GB eMMC (64GB / 128GB optional)
Operating Temperature	−40°C ~ 85°C
Operating System	Embedded Linux (Yocto)
Hardware Interfaces
Display	MIPI-DSI/LVDS, eDP
Camera	MIPI-CSI
Peripheral Interfaces	PCIe, USB, CAN, I²C, UART, SPI, SD, I²S, PWM, GPIO
