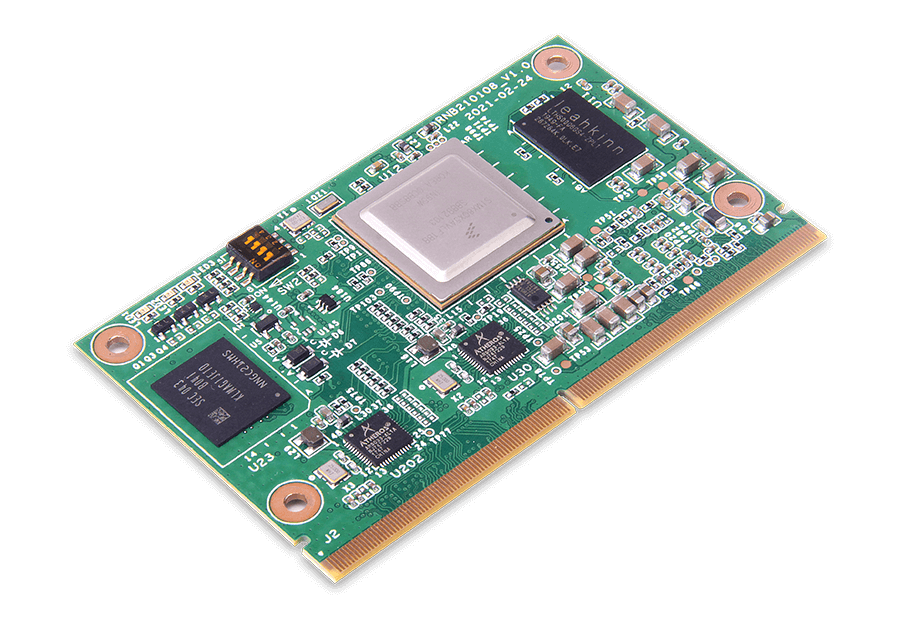

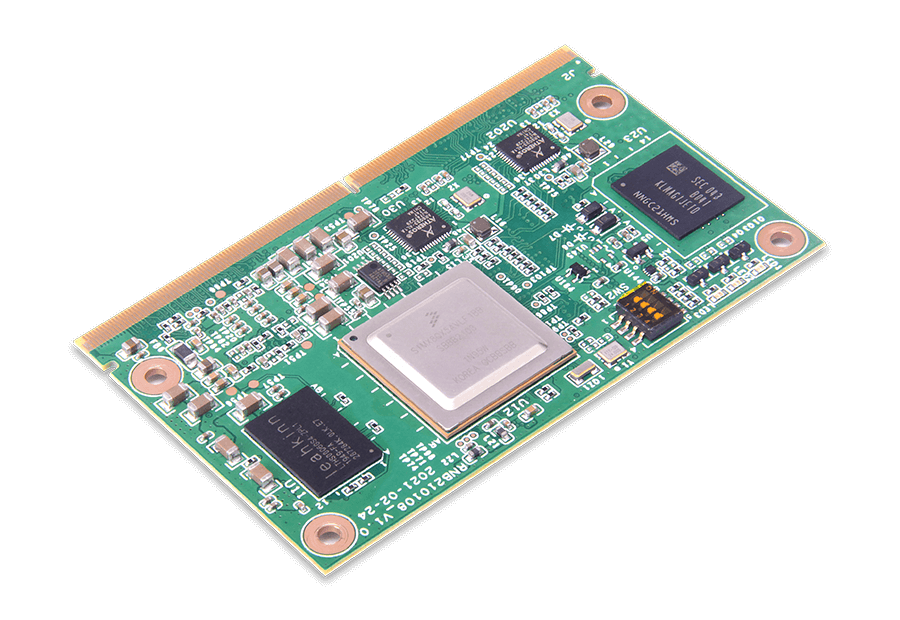

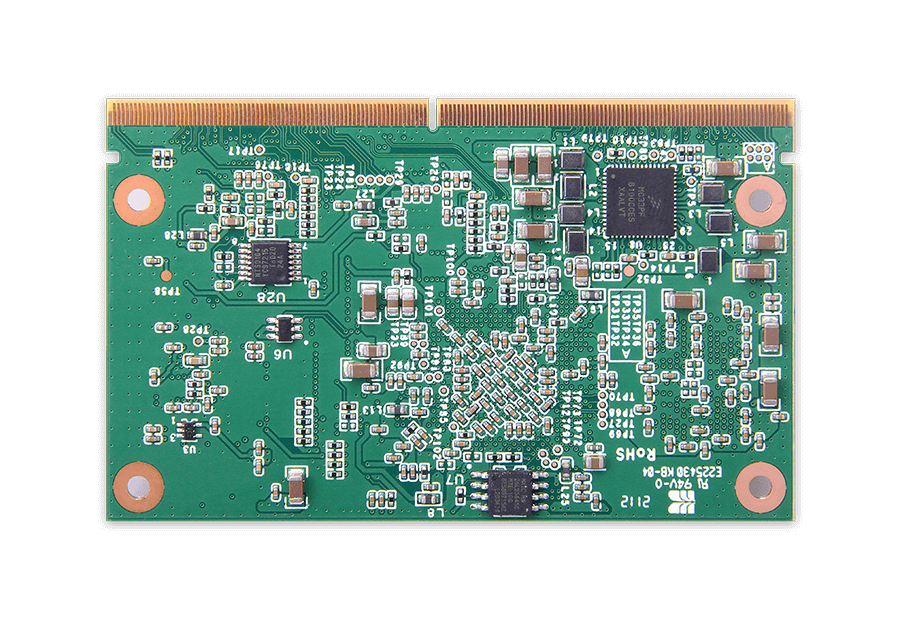

Geniatech’s SMARC 2.1 module is based on the NXP i.MX8M Mini processor series, ideal for various applications in the embedded industrial markets due to its high reliability. The boards are designed according to the “SMARC Hardware Technical Specification 2.1,” ensuring compatibility with all development boards featuring the same interface.
| CHIPSET | NXP i.MX8M mini | |
| MARKET AREA | Global | |
| OSD LANGUAGE | English/Chinese (multi language OSD) | |
| Processor | OS | Android 9.0 and Linux(Yocto) |
| CPU | Quad ARM Cortex-A53 up to 1.8GHz
& Cortex M4 up to 400MHz |
|
| GPU | GC2000 | |
| LPDDR4 | 2GB(1-4G Optional) | |
| EMMC FLASH | 8GB（16-128G Optional） | |
| SMARC 2.1 | Ethernet | 1 xRGMII |
| PCIe | 3 x PCIe (PCIe Switch) | |
| USB2.0 | *4 | |
| USB OTG | *1 | |
| MIPI CSI | *1(4 lane) | |
| LVDS | *1(Dual Channel LVDS) | |
| LVDS Backlight | *1 | |
| I2S | *2 | |
| MIPI DSI | *1(multiplex with LVDS) | |
| GPIO | *12 | |
| SDIO | *1 | |
| UART | *3 | |
| SPI | *2 | |
| I2C | *3 | |
| Vin | 5V/3A | |
| Dimensions | 82 x 50 mm | |
