U800II HDMI® Video Capture Card

  • U800Ⅱ full HD Video capture is 1080p 60ftp capture with USB 3.0. it support UVC and no need to install driver any more comparing with other captures. Moreover, it can be compatible with most third party media player,smoothly connecting with the mainstream broadcast platform which can transfer web broadcast, video conference and so on to Skype,Facebook Live、YouTube Live、LiveStream、UStream、Dacast、Wowza Cloud. Support Windows,Mac,Linux,Android and other main OS.

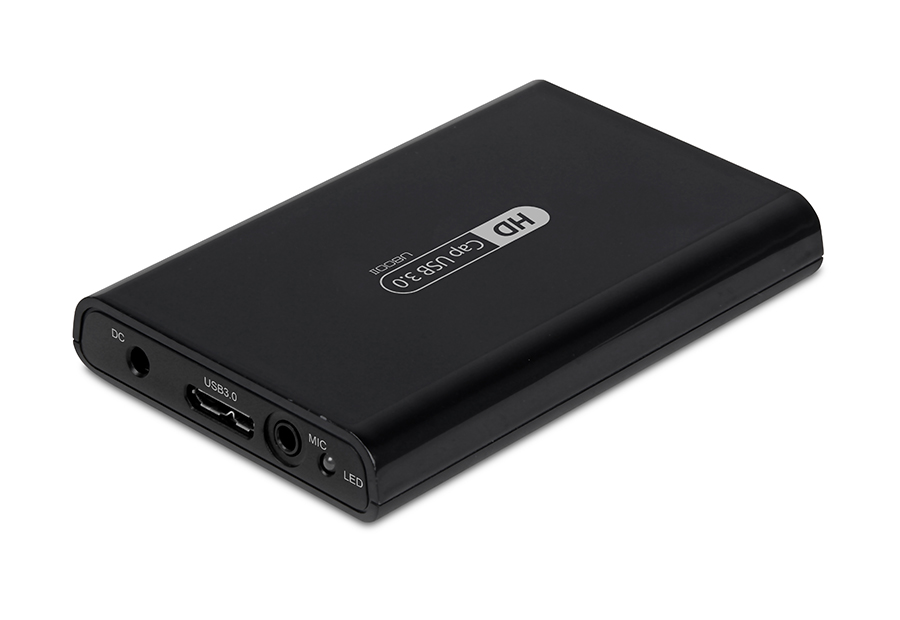

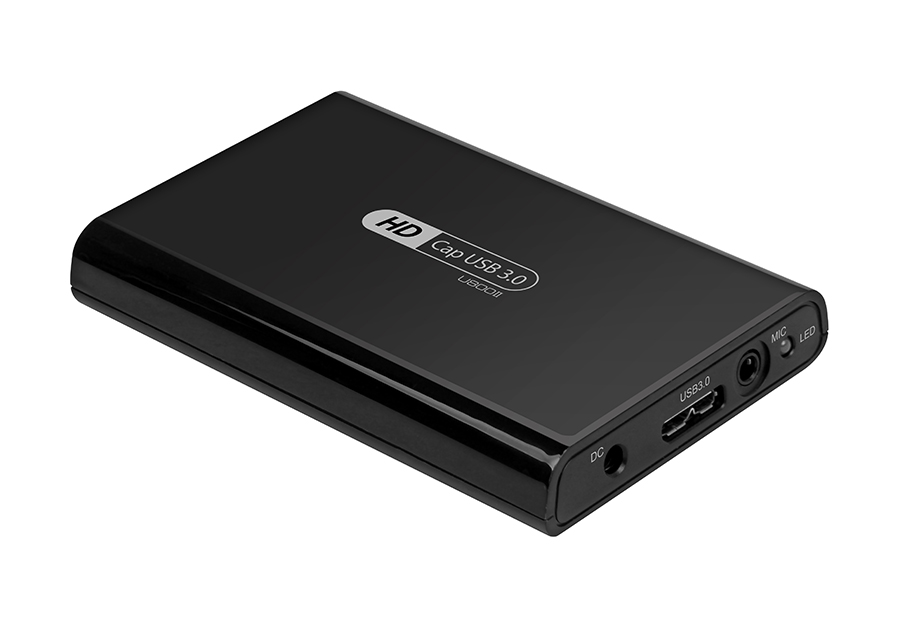

  • Suppot HDMI® input and microphone Input. Users can add any other audio into the video through microphone when video recording.

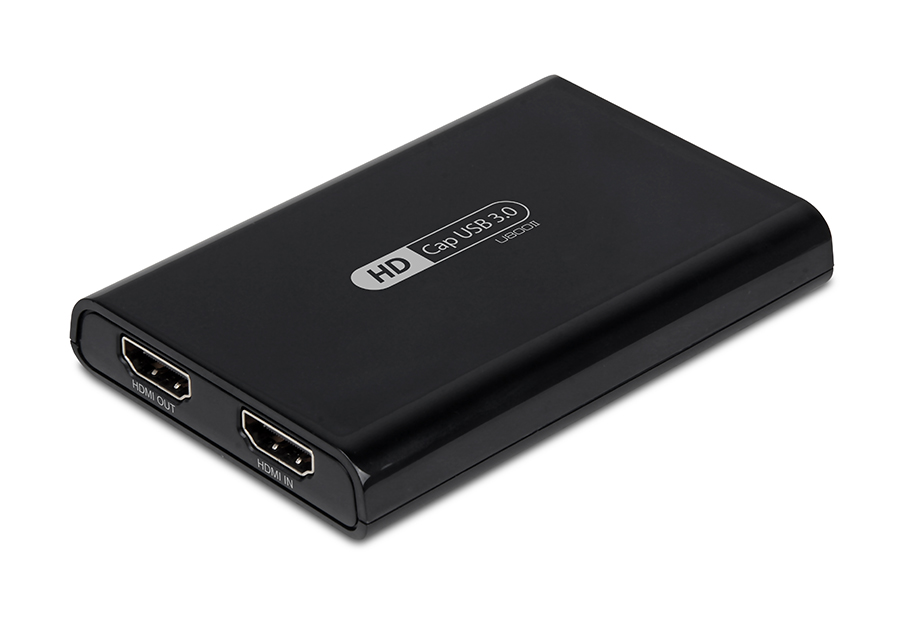

  • Support 4K 30ftp HDMI® input, and 1080P 60ftp HDMI® ouput. It can connect to large screen television, so users can watch high quality video on the big screen while capturing and broadcasting.

Buy a Sample

Categories: ,
Get A Quote

Video Capture

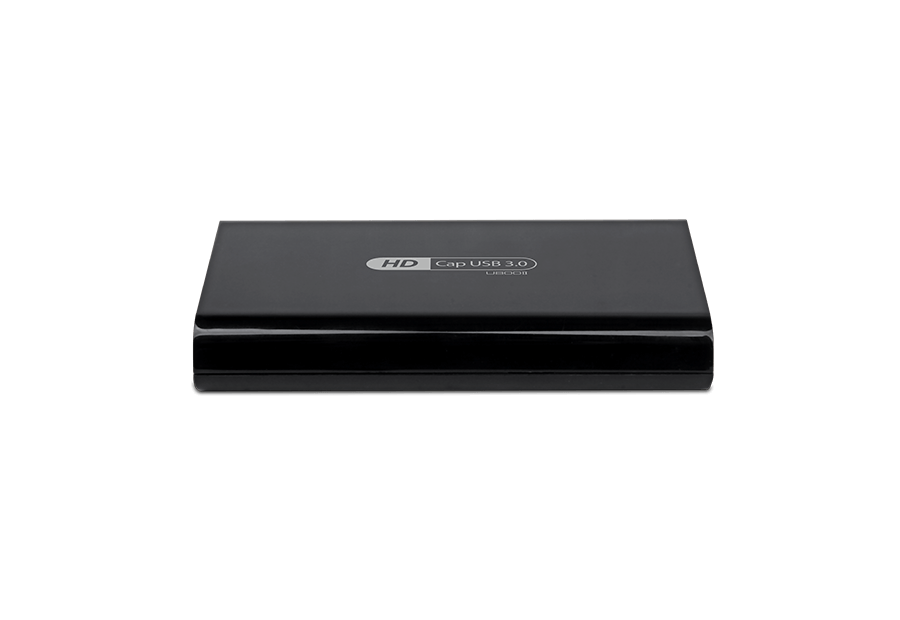

U800II

U800II is a USB3.0 hardware compression HDMI® digital video capture, input resolution up to 4K P30 MAX and capturing HD video resolution up to 1080 P60 MAX . UVC is driving-free plug and play

Product application connection diagram

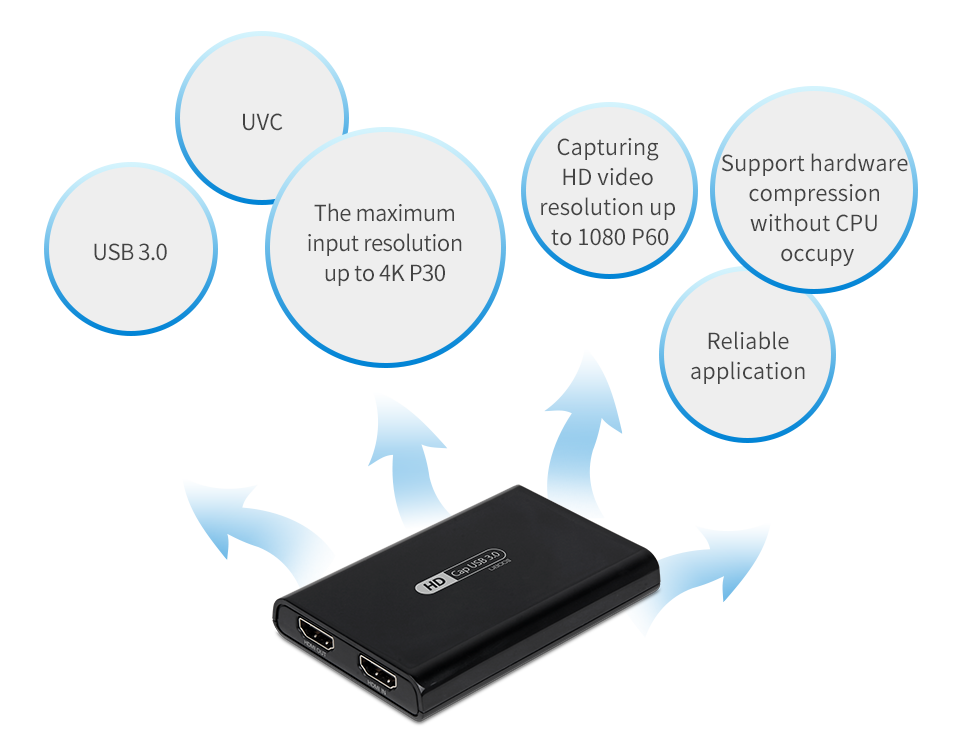

Production Features

USB 3.0 high-speed
data transmissionand power supply

Video Capture uses USB3.0 port, no need power adapter, compatible for USB2.0,low latency, high speed transmission

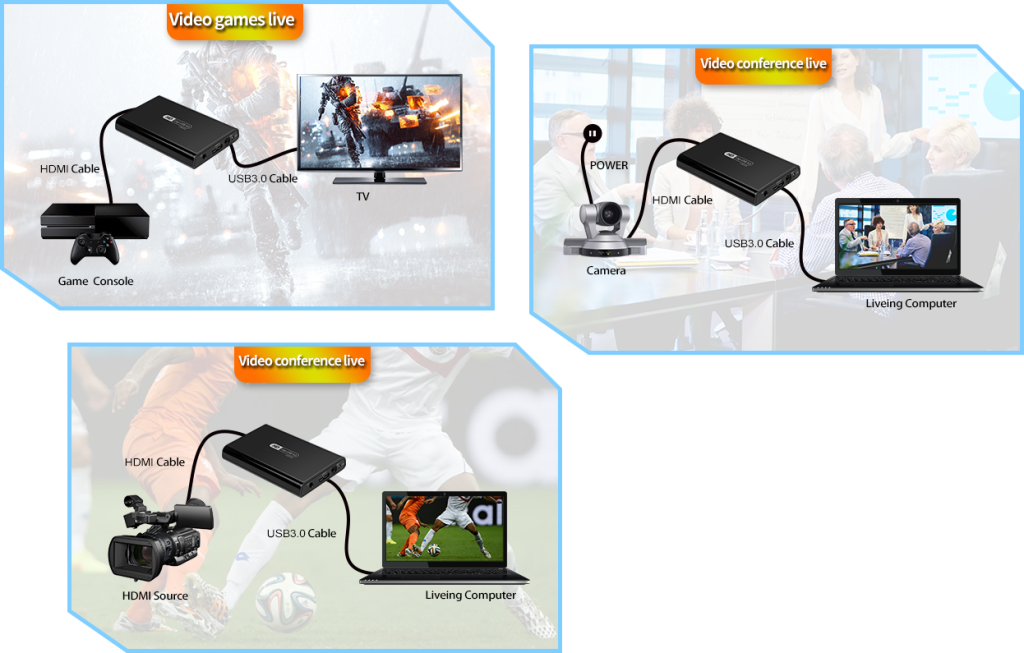

User Scenario

HD Video Recording

Support systems and software

Product U800II
Video in HDMI
USB Port USB3.0
Max input Resolution 4K (3840*2160@30HZ),HDMI® 1.4b (unencrypend)
Max output Resolution 4K (3840*2160@30HZ)
Audio Sampling Format: 16bit,20bit,24bit L-PCM32khz,44.1khz,48khz
Operating Temperature 0 ºC~ 45 ºC
Storage Temperature -20 ºC~ 60 ºC
Dimensions (L x W x H) 96*64*15mm
Weight 10g
Minimum Hardware Requirements CPU:PC i7-4700 above ;NB i7-3537U 2.0GHZ above)
Graphics:PC NVIDIA GTX660 or above; NB NVIDIA GT735M above
DDR:4GDDR
OS Support Windows 7/windows10 32bit and 64bit
Mac OS X 10.13 and above
Linux:Ubuntu 14.0 and above
